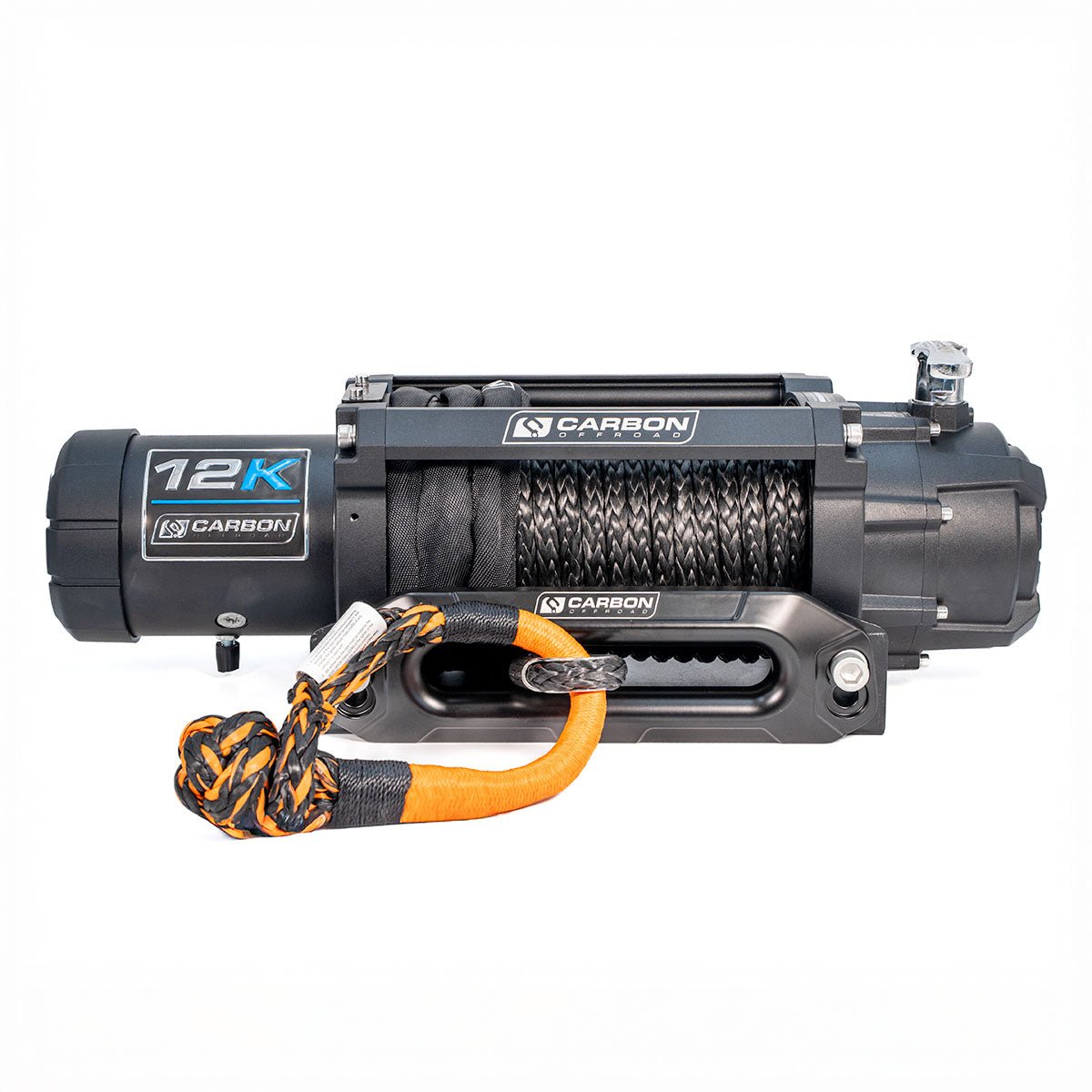

Carbon Offroad 12000lb Winch V3X - Soft Shackle
The Carbon 12K V3X with Soft Shackle kit is built for modern recoveries—pairing a lightweight 12,000lb winch with a soft‑shackle friendly setup.
IP68 sealing, dual remotes and premium CNC hardware make it a dependable choice for touring and weekend wheeling.
Key features
- Soft shackle included (ideal for fast, safe connections)
- IP68 sealing for dust‑tight protection and water submersion rating
- Wireless + wired remotes included
Technical specs
- Part number: CW-12KV3X
- Rated line pull: 12,000lb (5,450kg) single line
- Motor: 12V DC 6HP series‑wound (24V option available)
- Geartrain/ratio: 3‑stage planetary, 218:1
- Rope: 24m × 10mm synthetic
- Mounting bolt pattern: 254mm × 114.3mm
- Winch size: 538mm × 158mm × 187mm
- Weight (kit complete): 26.65kg

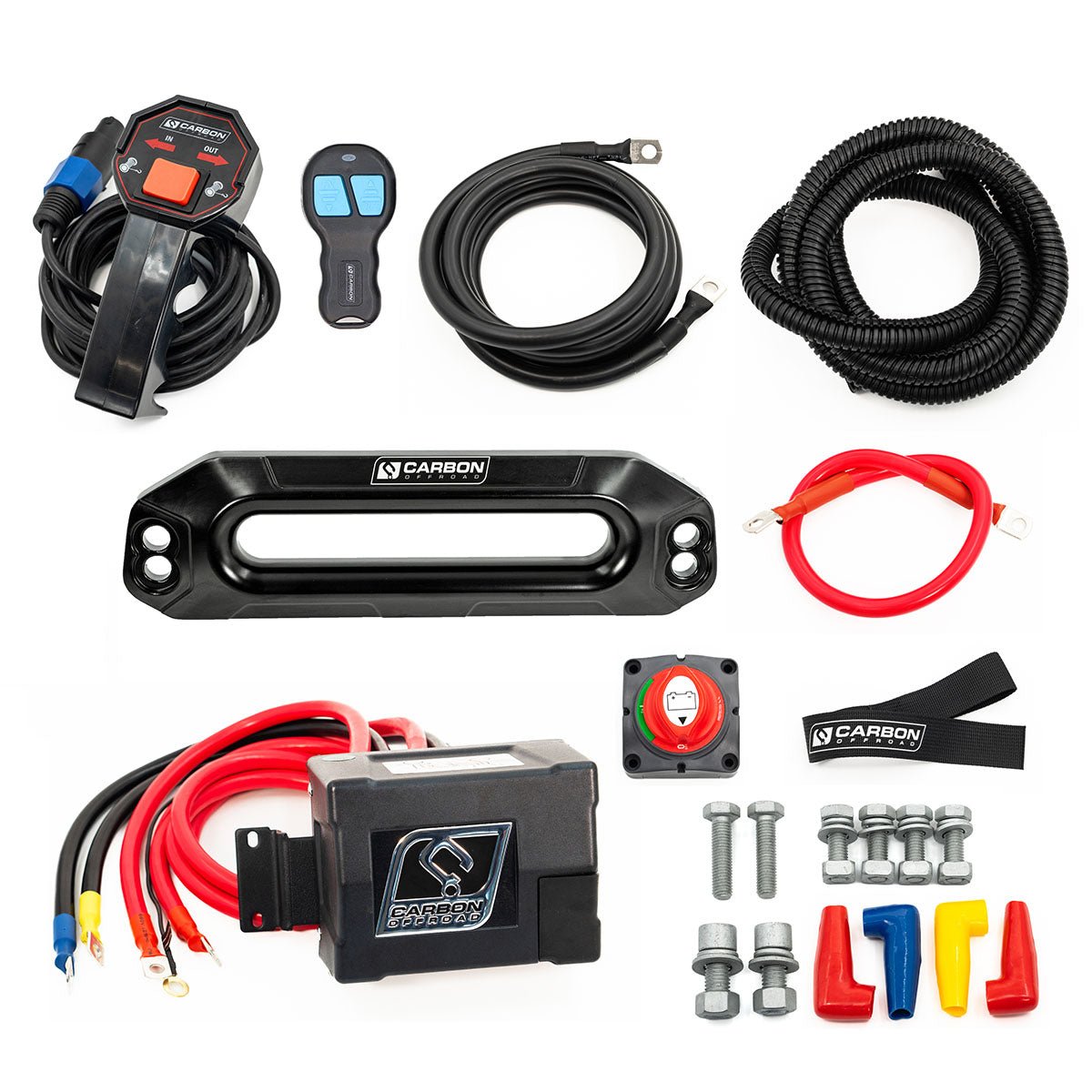

What's included
- Winch with synthetic rope fitted
- Soft shackle (as supplied)
- CNC billet alloy fairlead
- Isolator switch, control box, cables and mounting hardware
- Wired remote + wireless remote
