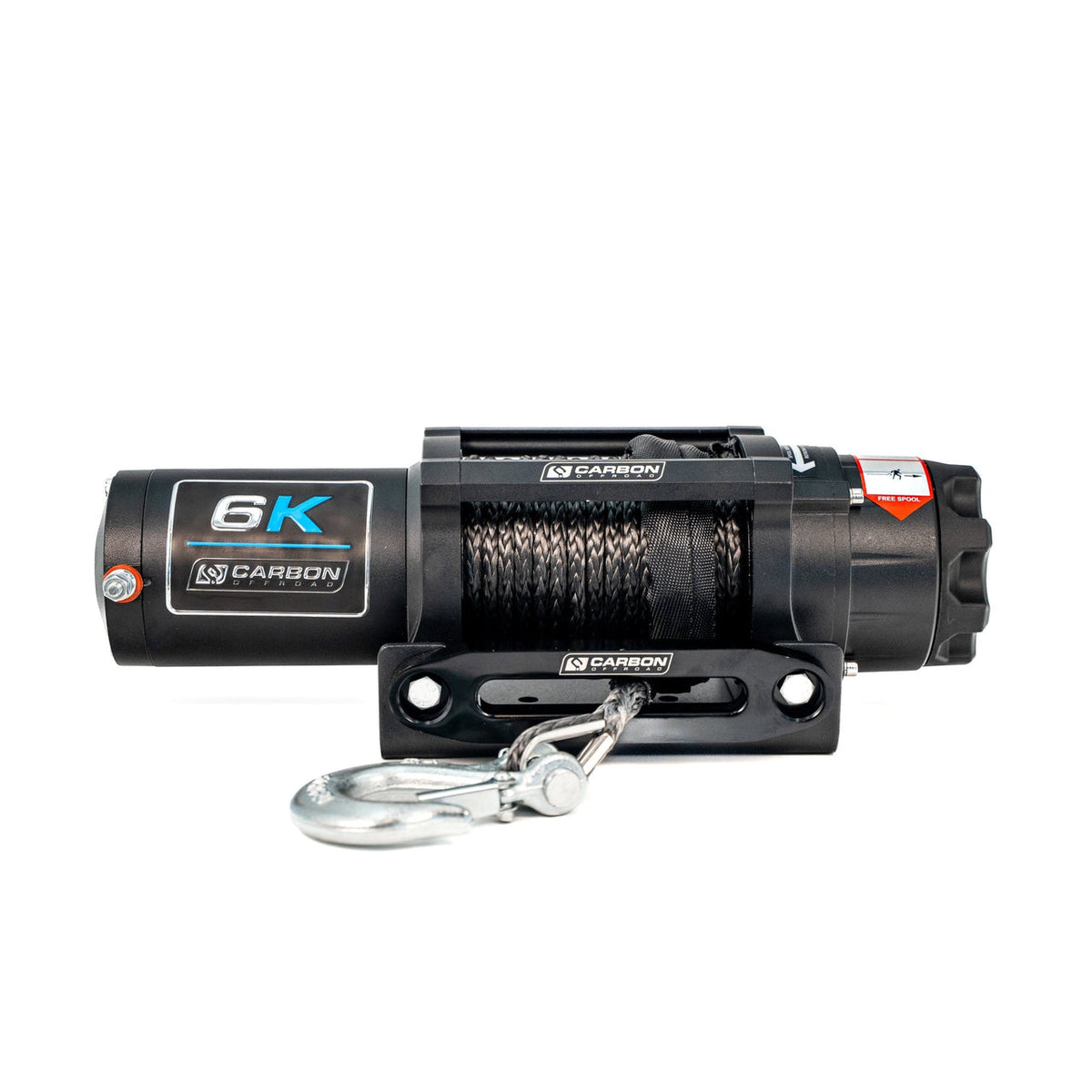

Carbon Offroad 6000lb ATV/Small 4X4 Winch - 12V
A versatile 6,000lb winch for ATVs, compact 4WDs, trailers, caravans and boats, the Carbon Offroad 6K is built for regular use in real conditions.
Sealed internals, dual remotes and a fail‑safe brake make it a reliable upgrade for work or play.
Key features
- Wired handlebar mini‑rocker control plus wireless remote (included)
- Sealed motor and geartrain with IP66 rating (winch/solenoid)
- Automatic brake for secure load holding
Technical specs
- Part number: CW-XD6
- Rated line pull: 6,000lb (2,725kg) single line
- Motor: 2.5HP permanent magnet (12V platform; 24V option available)
- Geartrain/ratio: 3‑stage planetary, 147:1
- IP rating: IP66 (winch and solenoid; excludes remote/switch)
- Rope: 16m × 6.5mm synthetic
- Drum: 51mm × 122mm
- Mounting bolt pattern: 167mm × 76mm
- Winch size: 385mm × 115mm × 119mm
- Weight (winch only): 8.3kg
- Weight (kit complete): 11.2kg

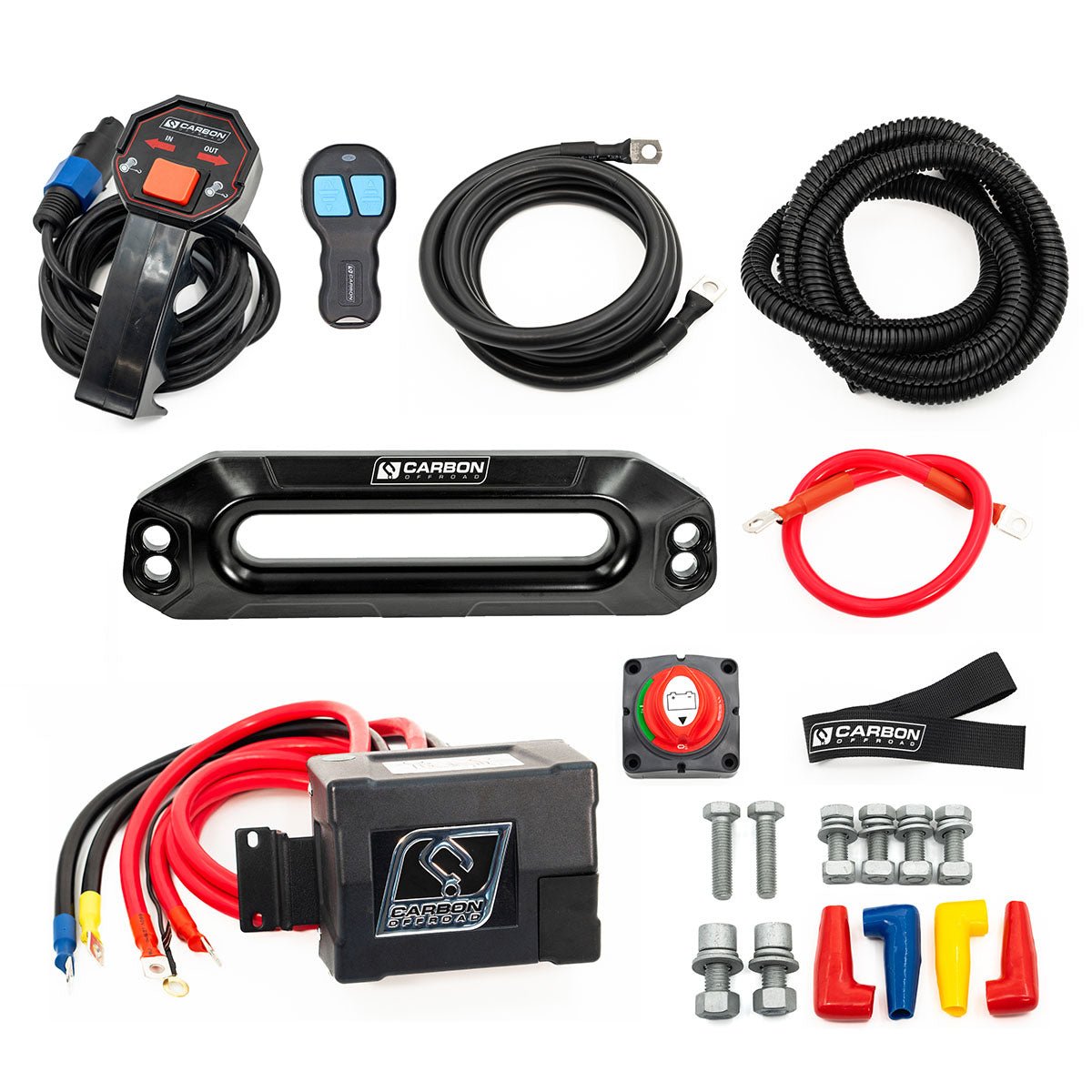

What's included
- Winch with synthetic rope fitted
- Wireless remote + handlebar mini‑rocker switch
- Aluminium hawse fairlead
- Control box, cables and mounting hardware
