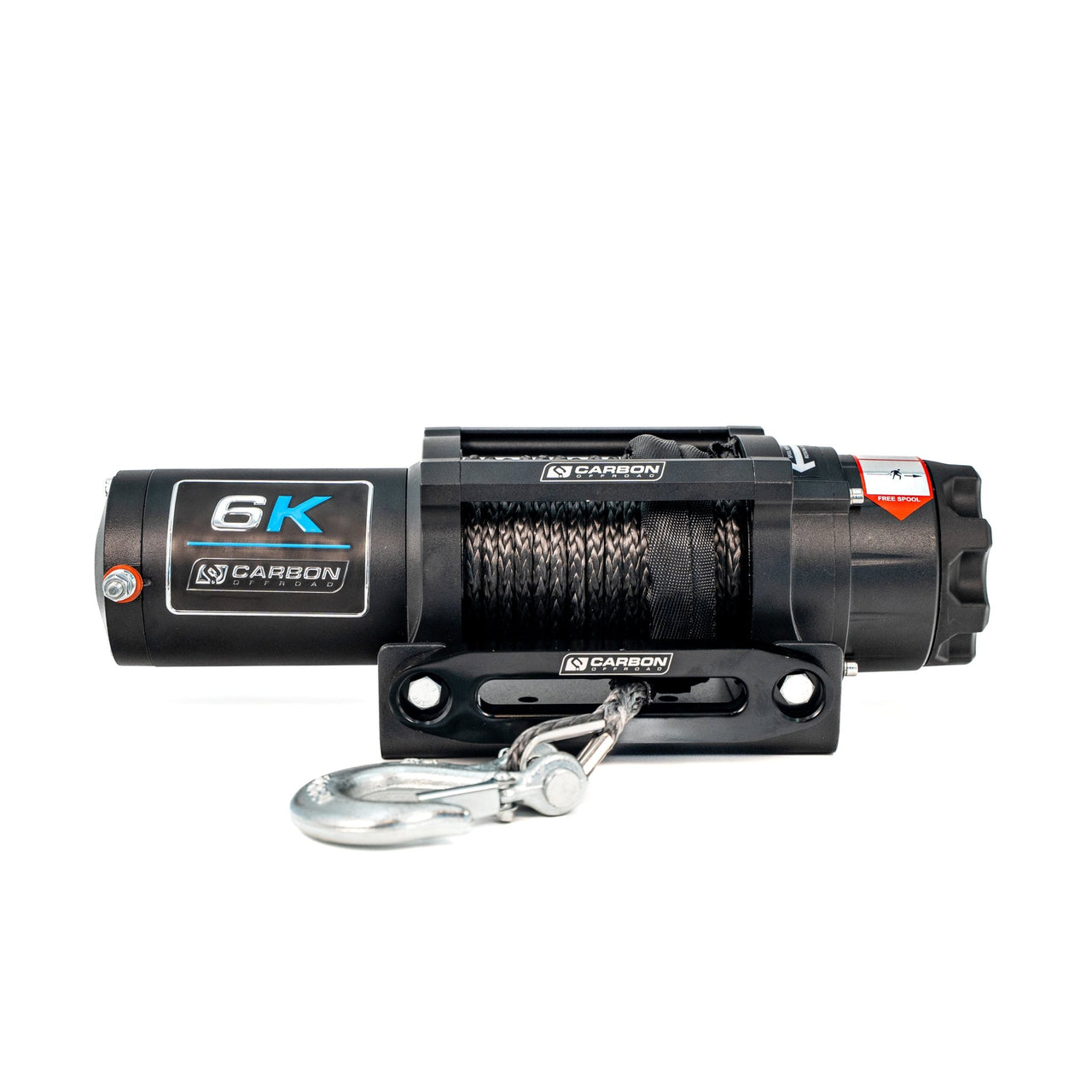

Carbon Offroad 6000lb Long Drum ATV/Small 4X4 Winch
Need extra rope reach? The Carbon Offroad Long Drum 6K delivers 6,000lb pulling power with a longer drum and a massive 26m synthetic rope.
Perfect for ATVs, compact 4WDs and trailers where line length matters.
Key features
- Long‑drum design to suit 26m rope
- Wireless remote included
- IP66 rating (winch/solenoid) to handle mud, dust and spray
Technical specs
- Part number: CW-XD6L
- Rated line pull: 6,000lb (2,725kg) single line
- Motor: 12V DC 2.5HP permanent magnet
- Geartrain/ratio: 3‑stage planetary, 147:1
- IP rating: IP66 (winch and solenoid; excludes remote/switch)
- Rope: 26m × 6.5mm synthetic
- Drum: 51mm × 208mm
- Mounting bolt pattern: 254mm × 76mm
- Winch size: 473mm × 125mm × 120mm
- Weight (kit complete): 11.2kg

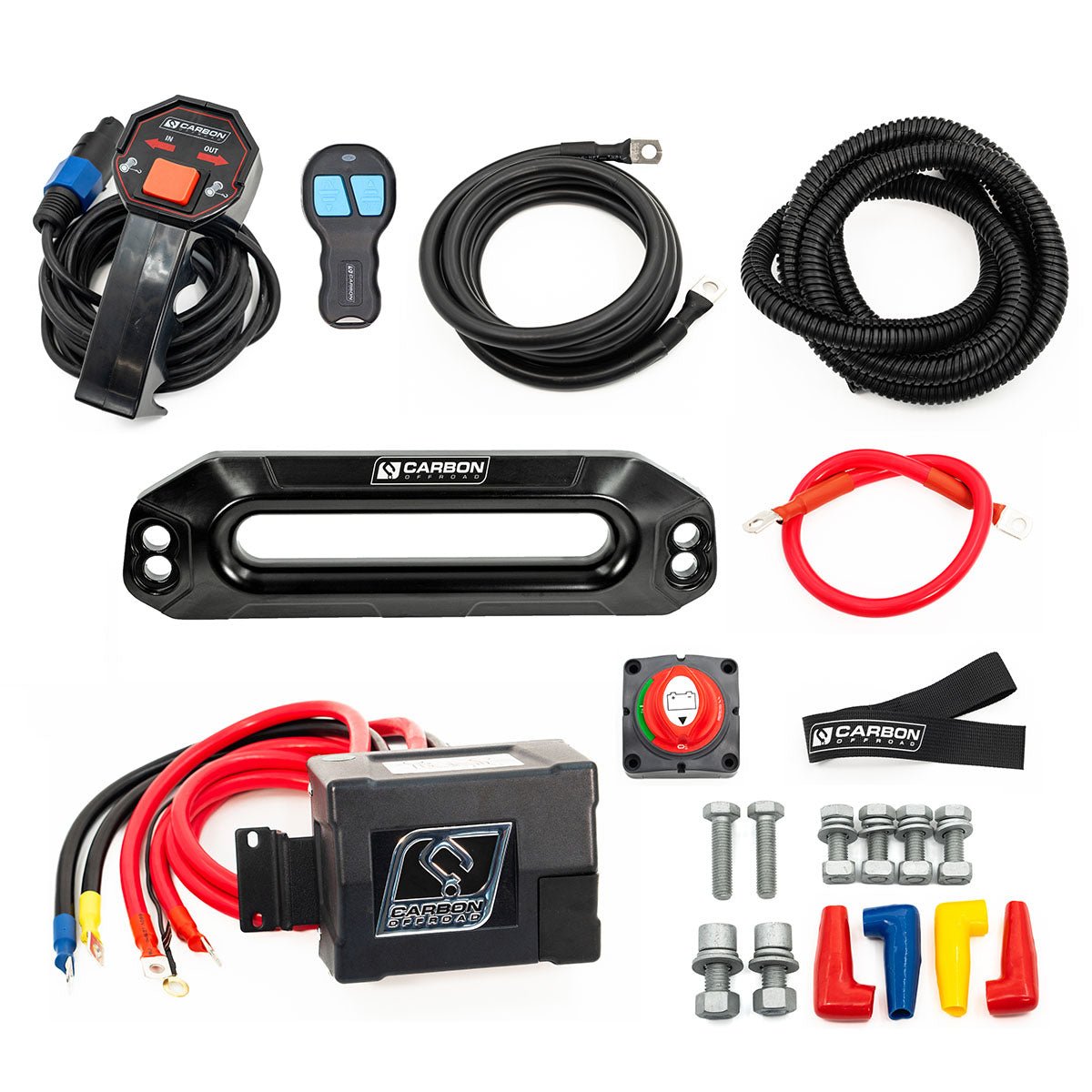

What's included
- Winch with 26m synthetic rope fitted
- Wireless remote + handlebar mini‑rocker switch
- Aluminium hawse fairlead
- Control box, cables and mounting hardware
