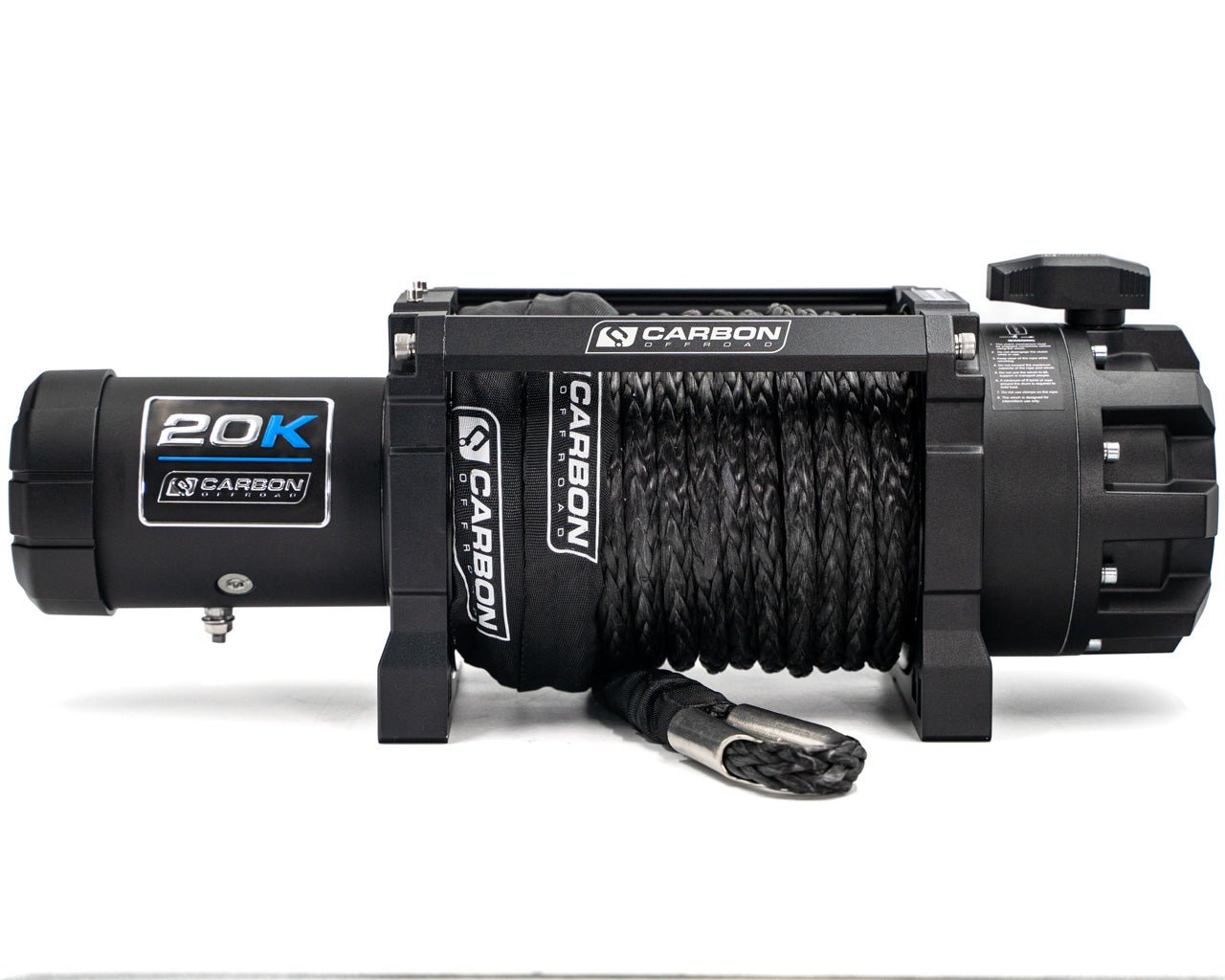

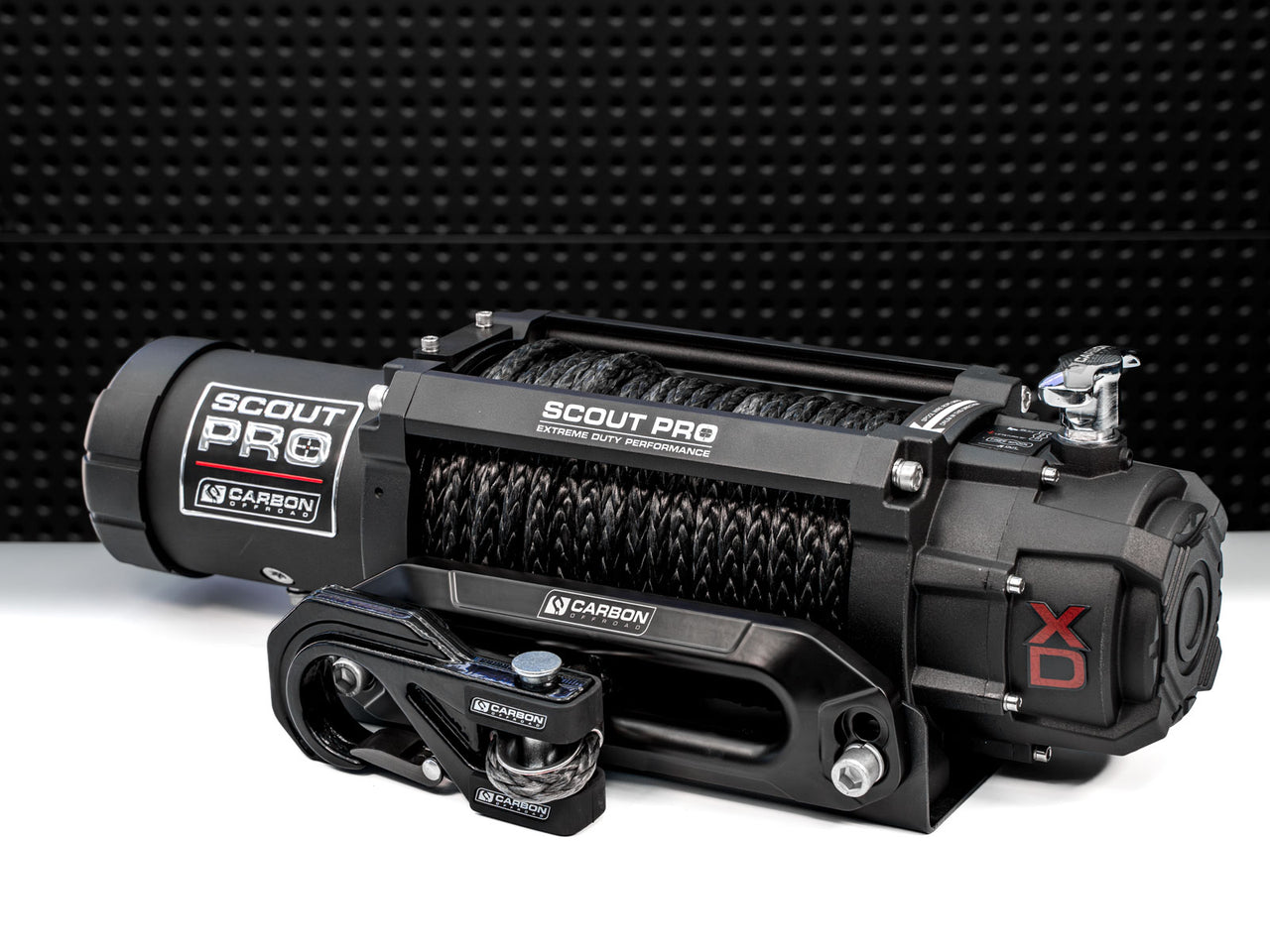

Carbon Offroad Scout Pro 20000lb Truck Winch - 12V
The Scout Pro 20K is built for extreme duty—ideal for big utes, American trucks, heavy tourers and hard recoveries where 12K winches are out of their comfort zone.
With a powerful 7HP series‑wound motor, heavy rope and premium hardware, it’s ready for serious work.
Key features
- Wired remote (3.6m lead) plus wireless remote included
- 3‑stage planetary geartrain with 345:1 ratio
- MegaPro multi‑position CNC billet fairlead
Technical specs
- Part number: CW-XD20
- Rated line pull: 20,000lb (9,072kg) single line
- Motor: 12V DC 7HP series‑wound (24V option available)
- Geartrain/ratio: 3‑stage planetary, 345:1

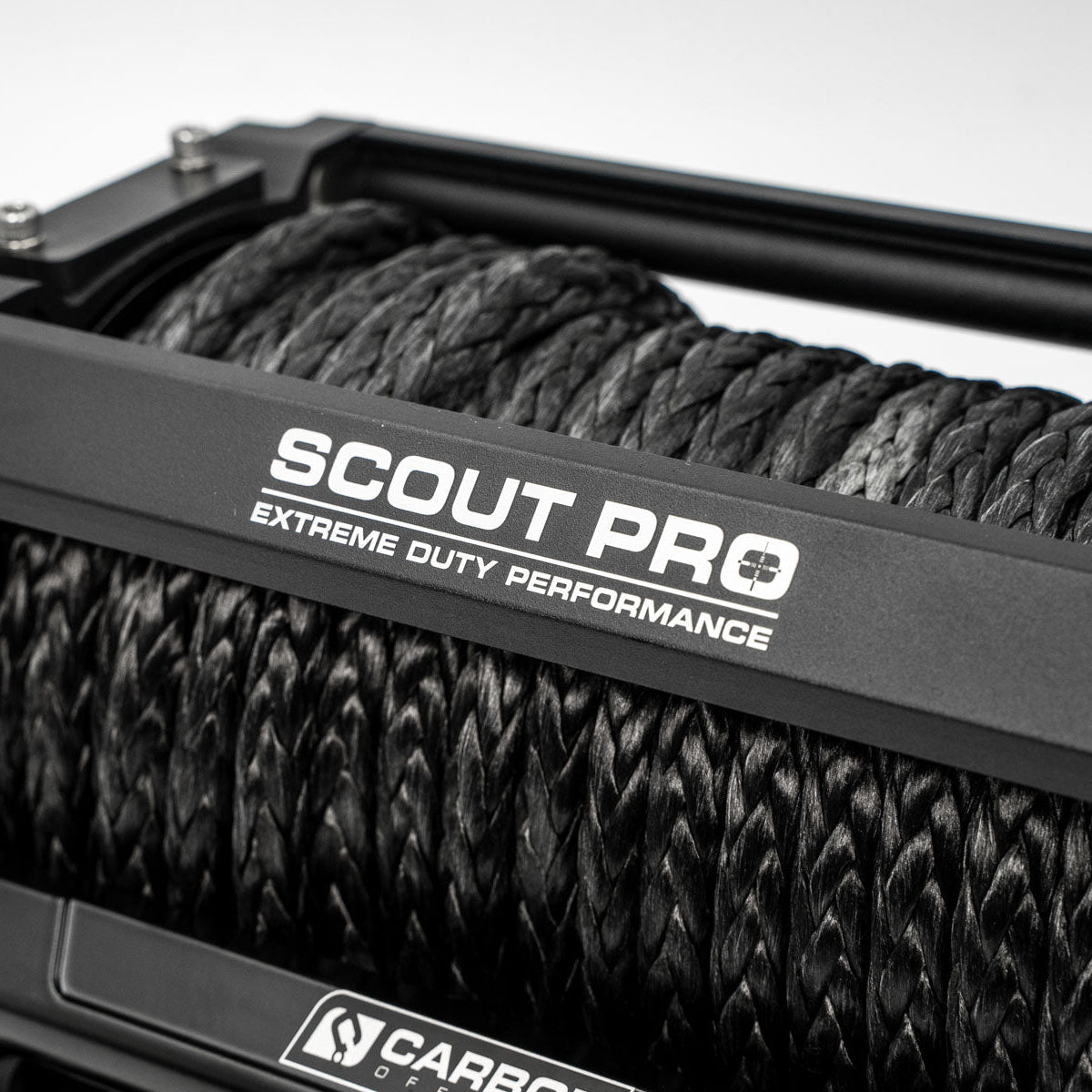

- Rope: 25m × 13mm synthetic
- Drum: 88mm × 224mm
- Mounting bolt pattern: 254mm × 114.3mm
- Winch size: 579mm × 192mm × 224mm
- Weight (kit complete): 37kg

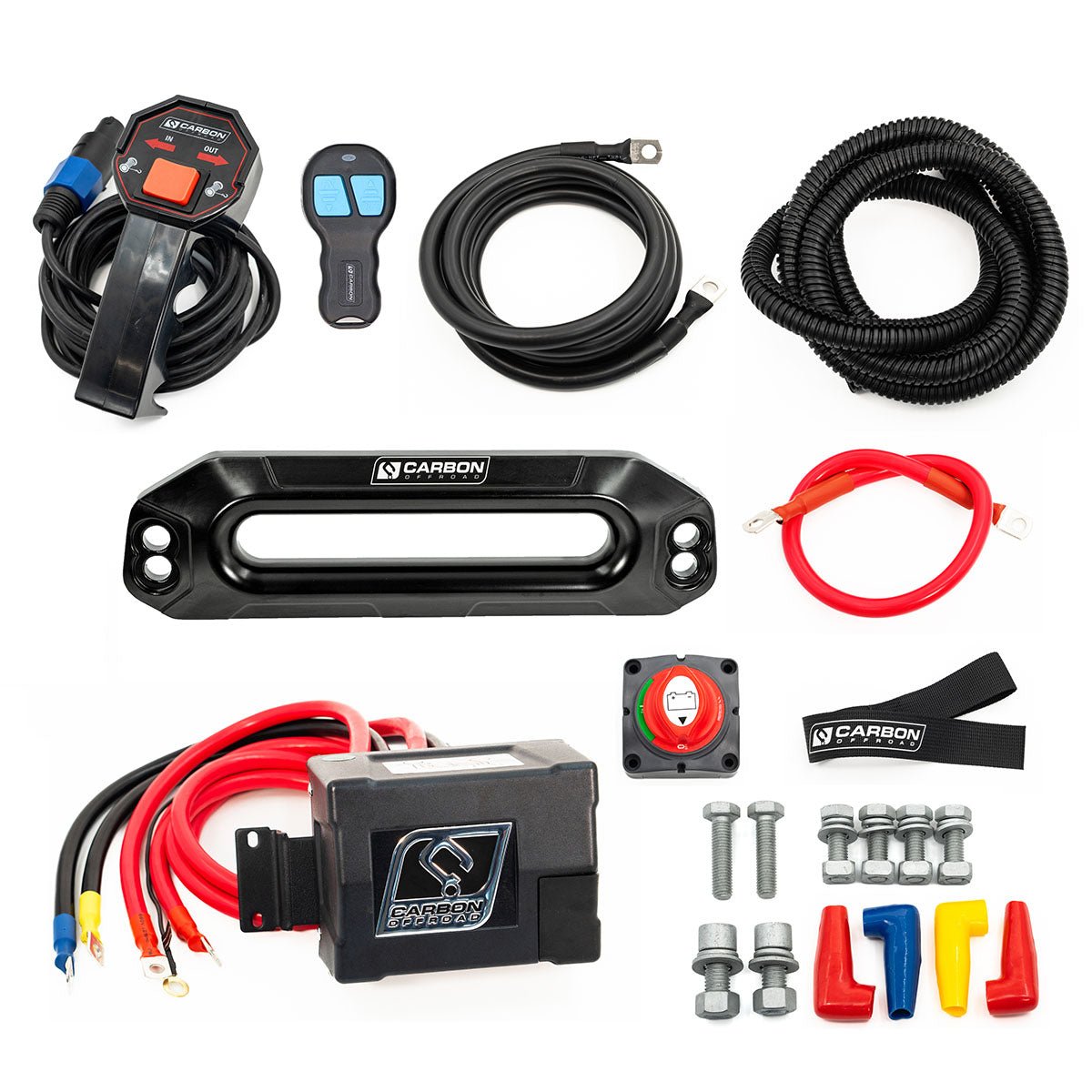

What's included
- Winch with synthetic rope fitted
- Wired remote + wireless remote
- MegaPro CNC billet fairlead
- Control box, cables and mounting hardware
