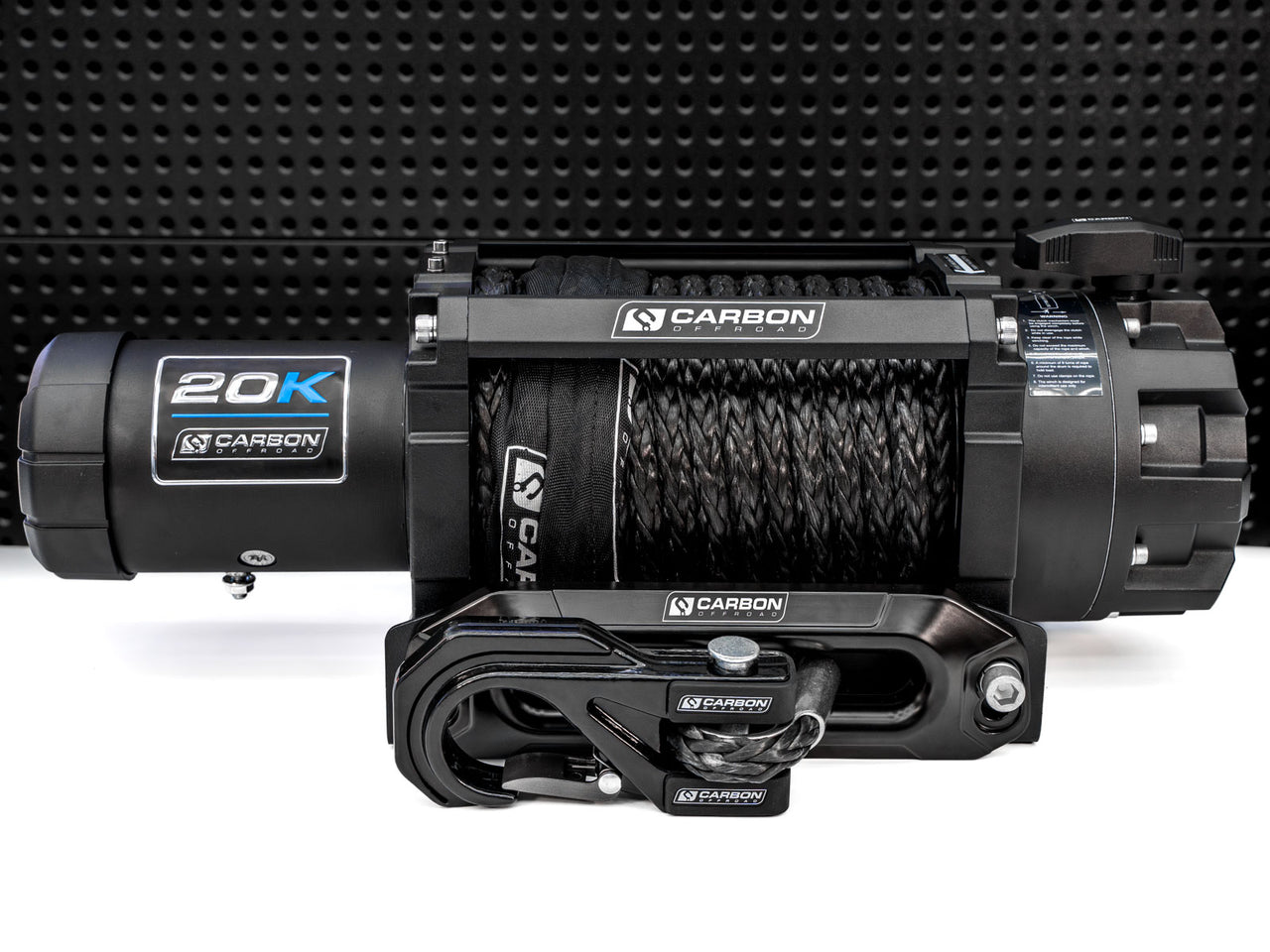

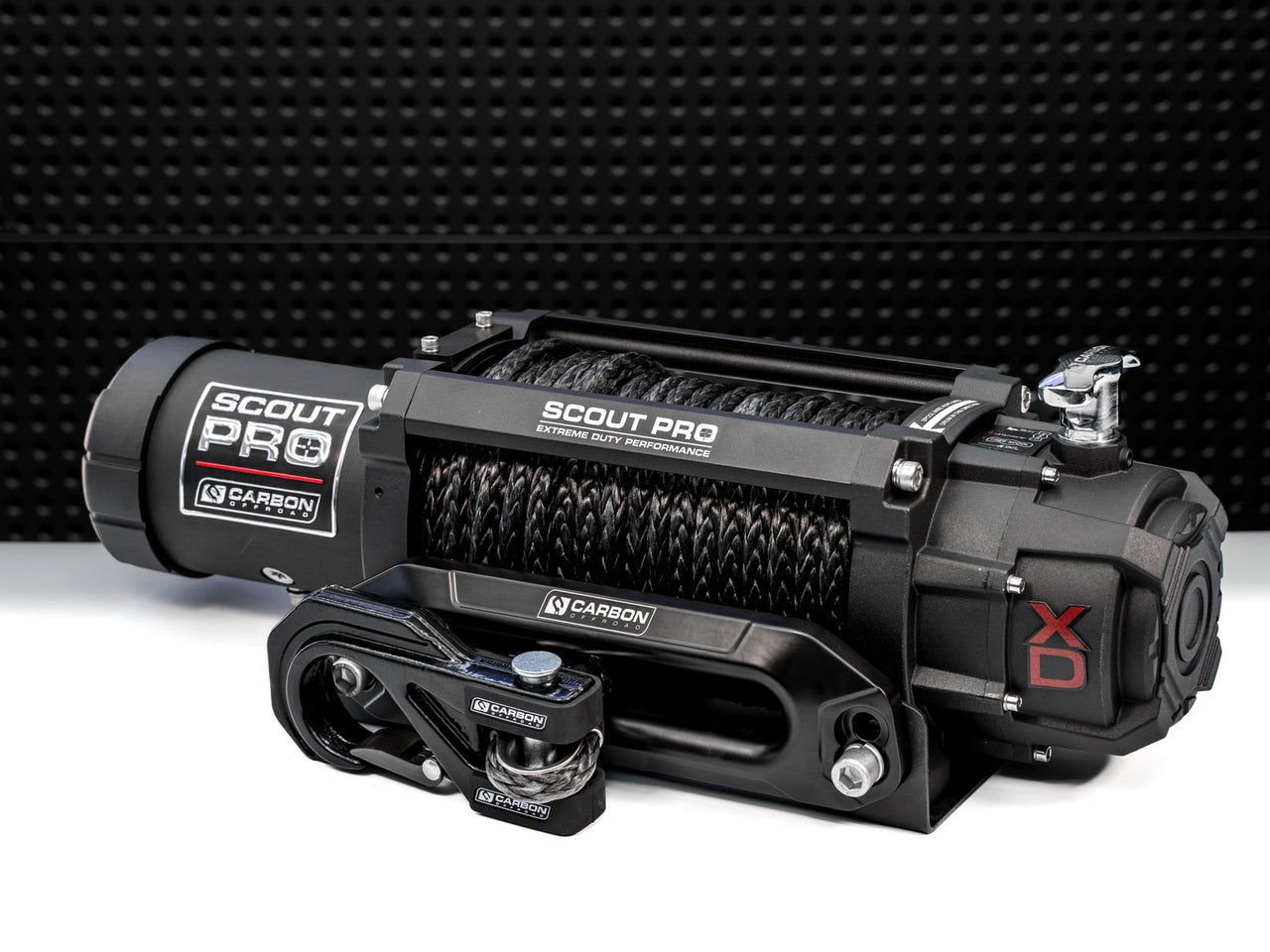

Carbon Offroad Scout Pro 20000lb Truck Winch - 24V
The 24V Scout Pro 20K is the heavy‑duty answer for 24V trucks and commercial builds—delivering a massive 20,000lb pull in a 24V configuration.
It keeps the same Scout Pro hardware and dual‑remote control for safer winching.
Key features
- 24V configuration for 24V vehicles
- Wired + wireless remotes included
- MegaPro multi‑position CNC billet fairlead
Technical specs
- Rated line pull: 20,000lb (9,072kg) single line
- Motor: 7HP series‑wound (24V application)
- Geartrain/ratio: 3‑stage planetary, 345:1

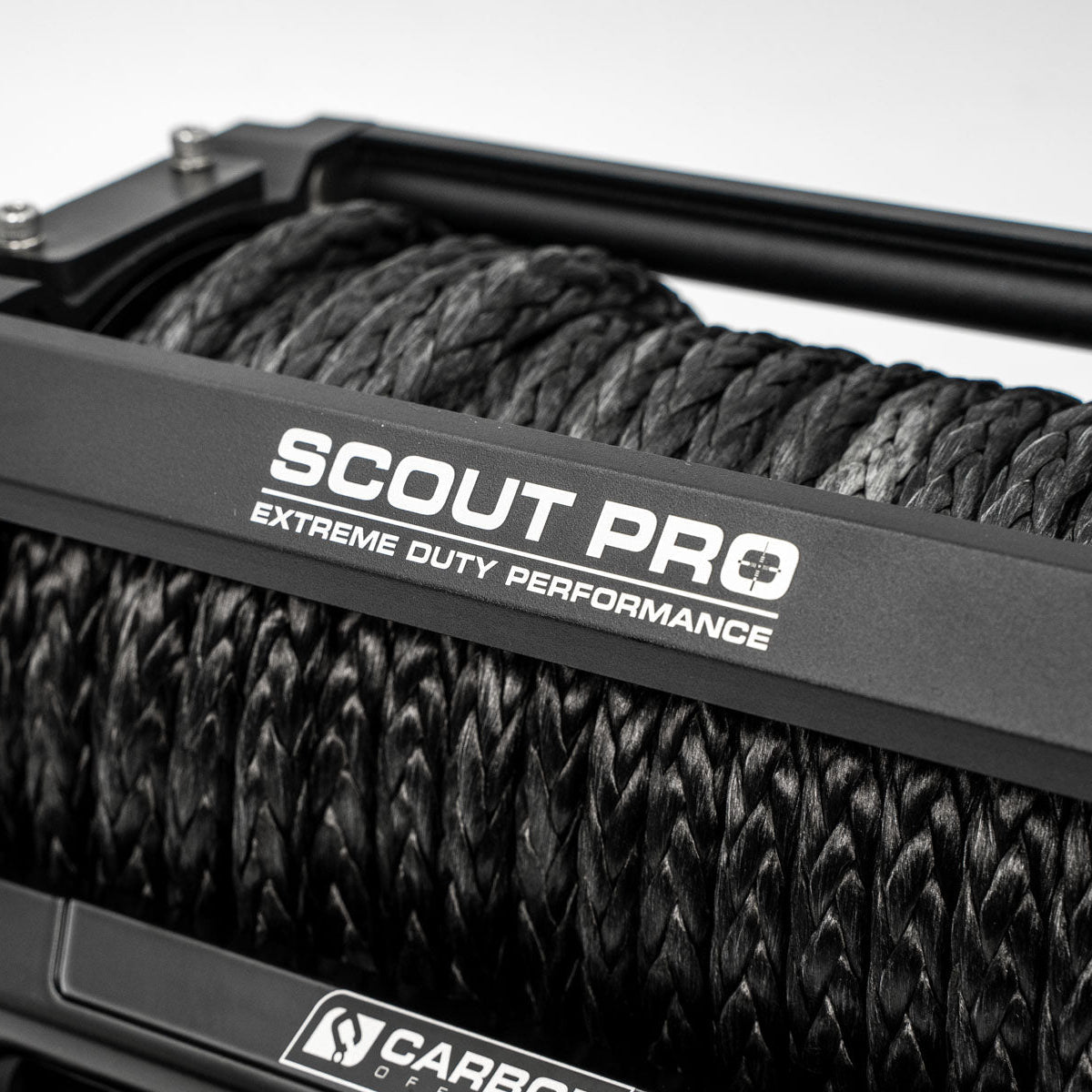

- Rope: 25m × 13mm synthetic
- Mounting bolt pattern: 254mm × 114.3mm
- Weight (kit complete): 37kg

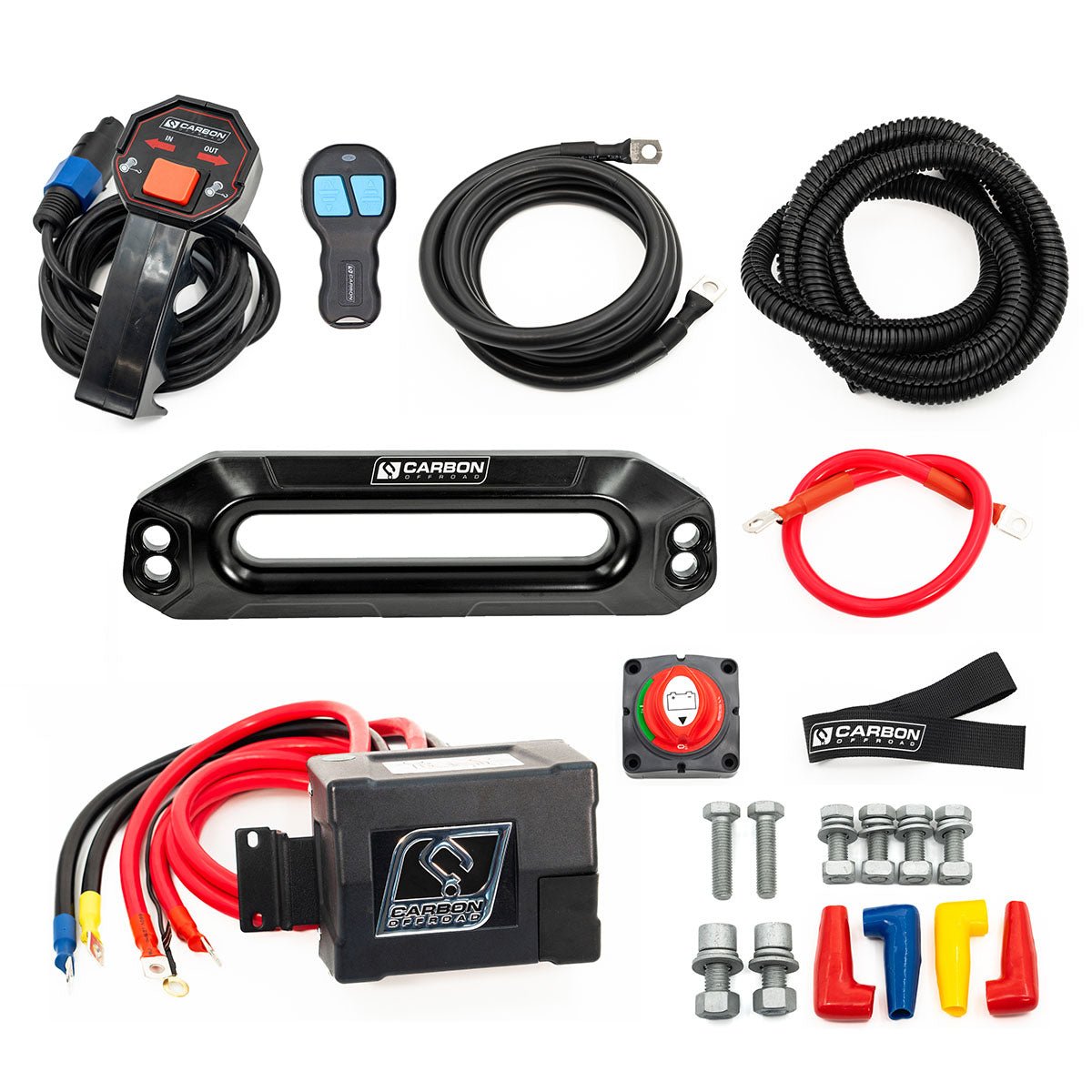

What's included
- Winch with synthetic rope fitted
- Wired remote + wireless remote
- MegaPro CNC billet fairlead
- Control box, cables and mounting hardware
