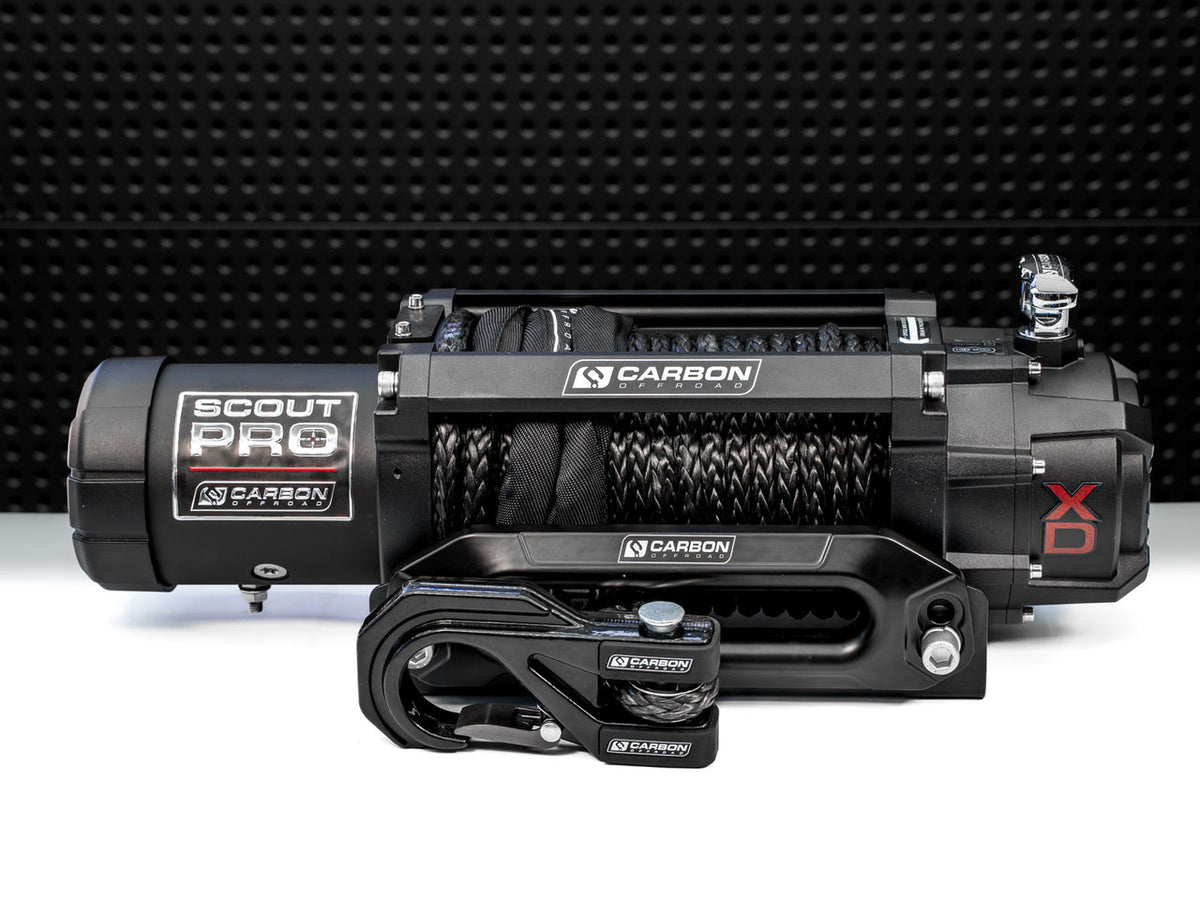

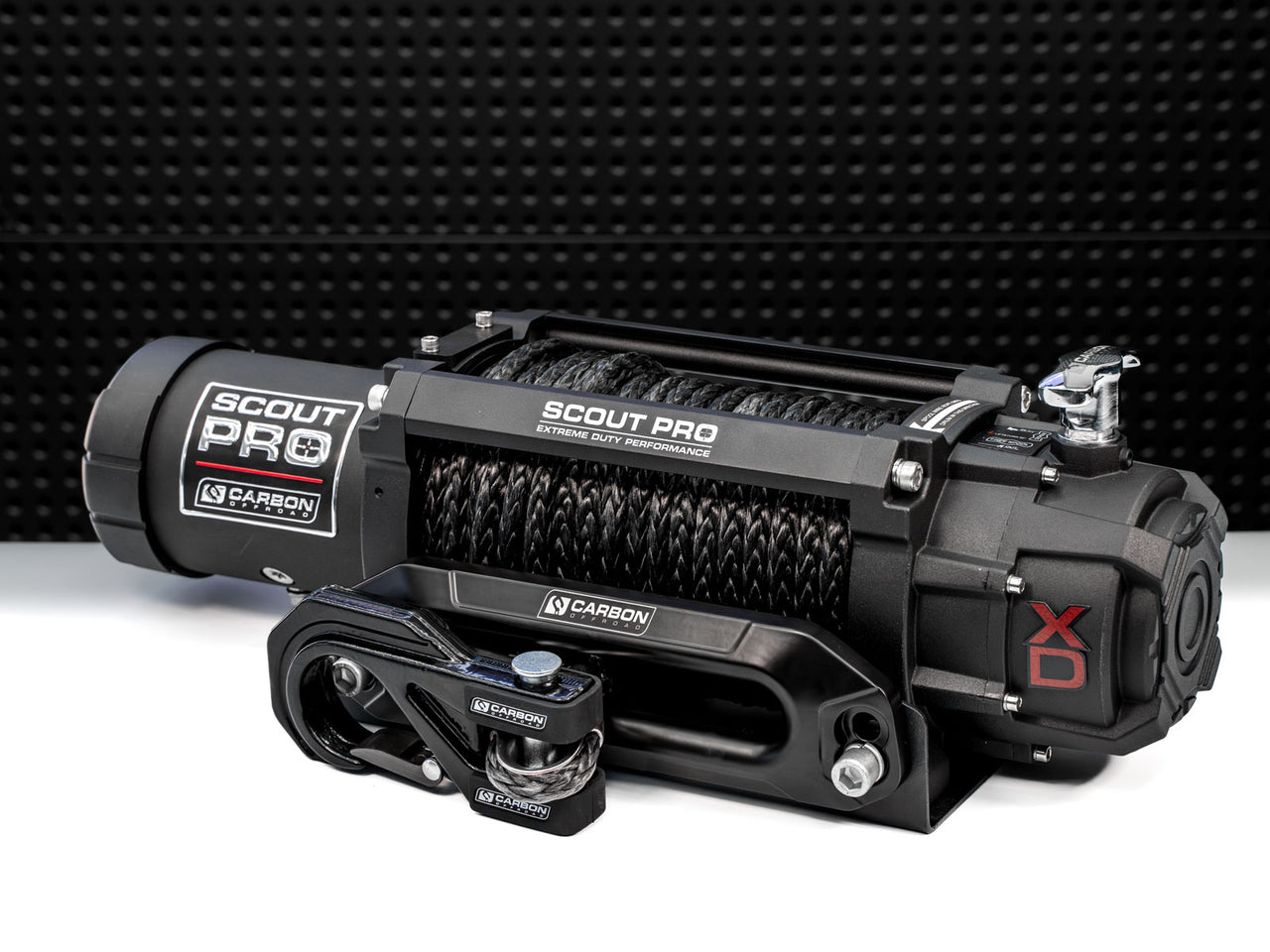

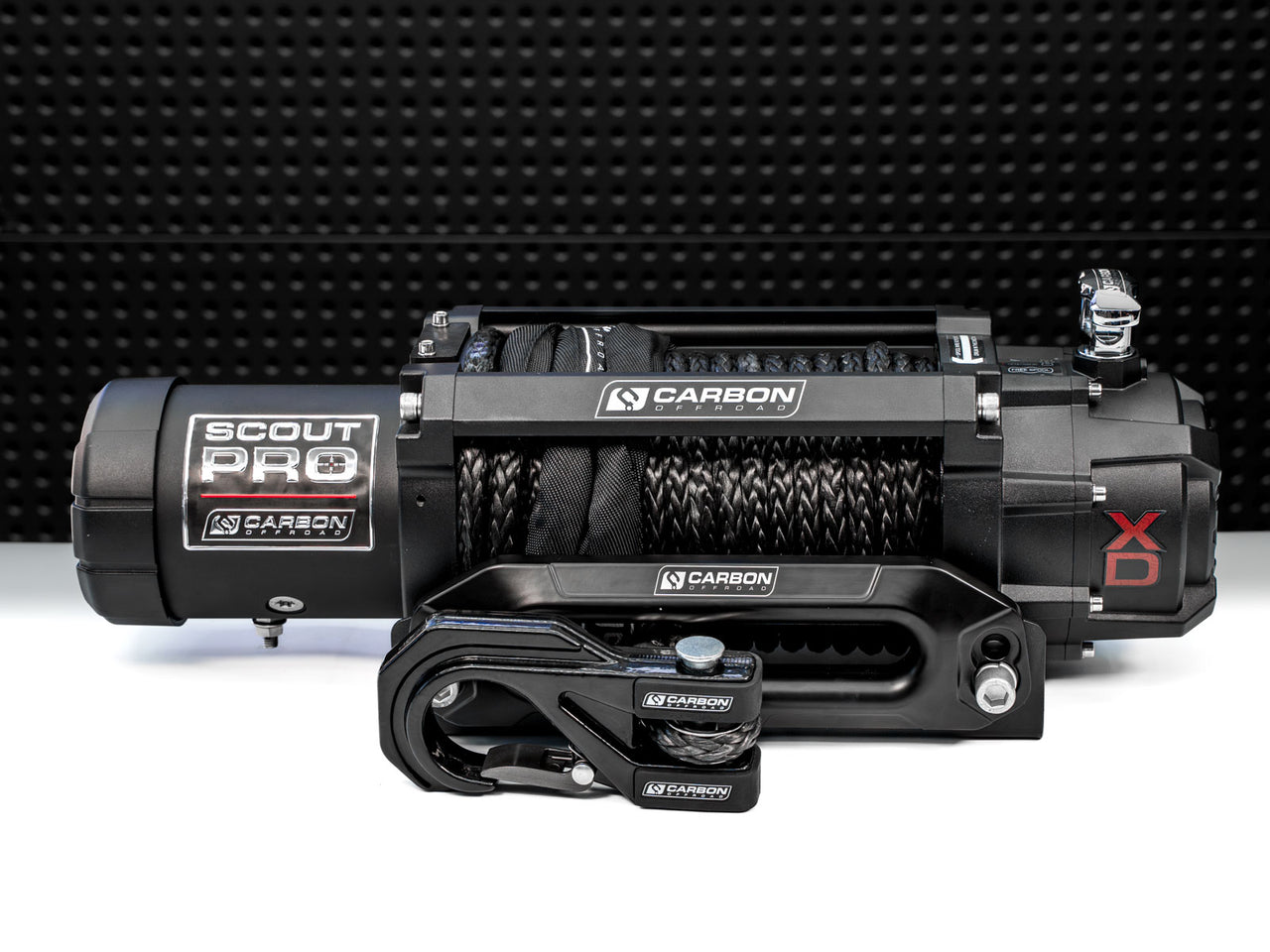

Carbon Offroad Scout Pro 10000lb Winch V3 - 12V
The Scout Pro 10K is a compact, feature‑packed 10,000lb winch designed for frequent use—ideal for dual cabs, SUVs and touring builds.
With a 6HP series‑wound motor, premium MegaPro fairlead and dual remotes, it’s built to work when conditions turn.
Key features
- Wired remote (3.7m lead) plus wireless remote included
- 3‑stage planetary gearbox with 180:1 ratio
- MegaPro premium CNC billet fairlead
Technical specs
- Part number: CW-XD10
- Rated line pull: 10,000lb (4,536kg) single line
- Motor: 12V DC 6HP series‑wound (24V option available)
- Geartrain/ratio: 3‑stage planetary, 180:1

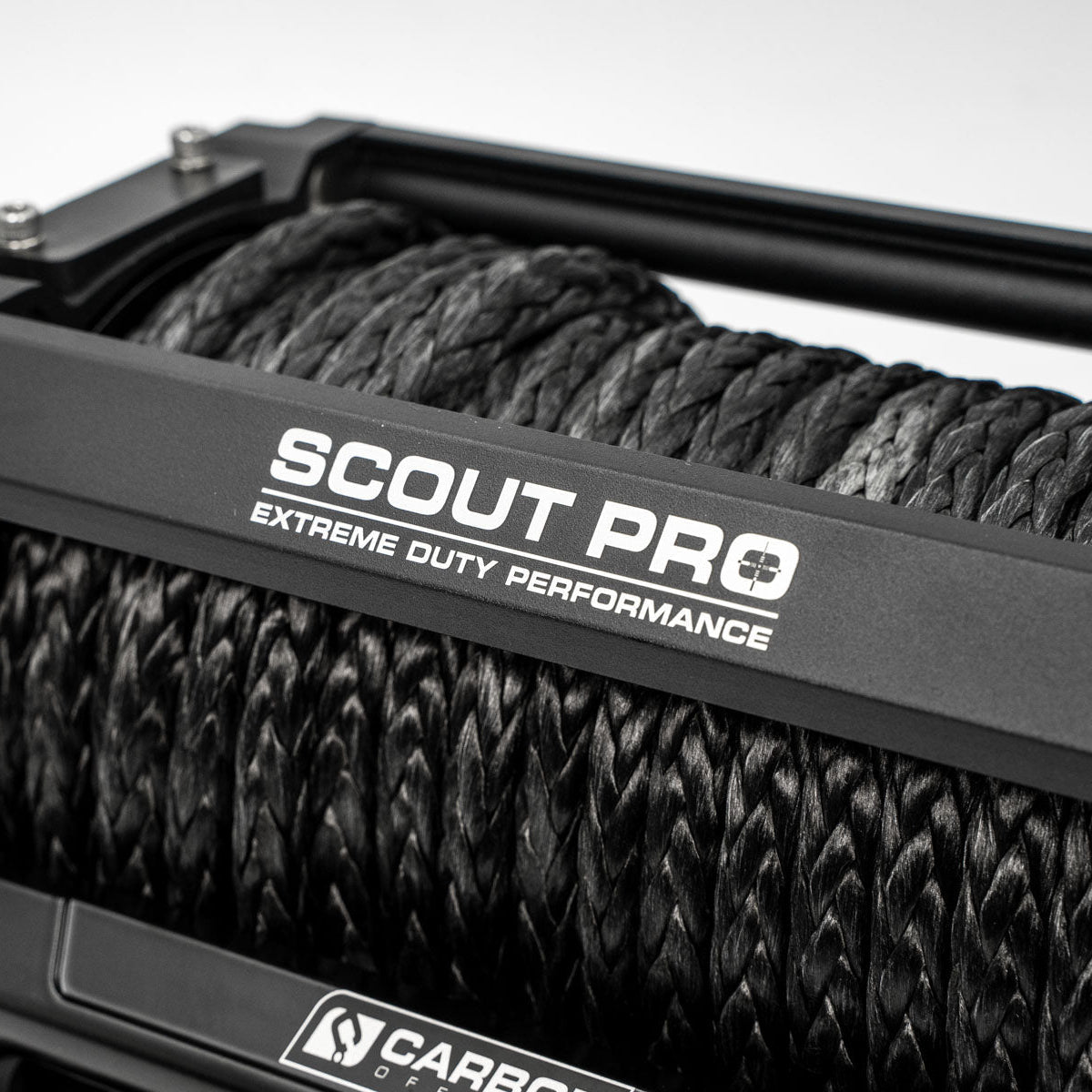

- Rope: 24m × 10mm synthetic
- Drum: 63mm × 224mm
- Mounting bolt pattern: 254mm × 114.3mm
- Winch size: 538mm × 158mm × 187mm
- Weight (kit complete): 26.7kg

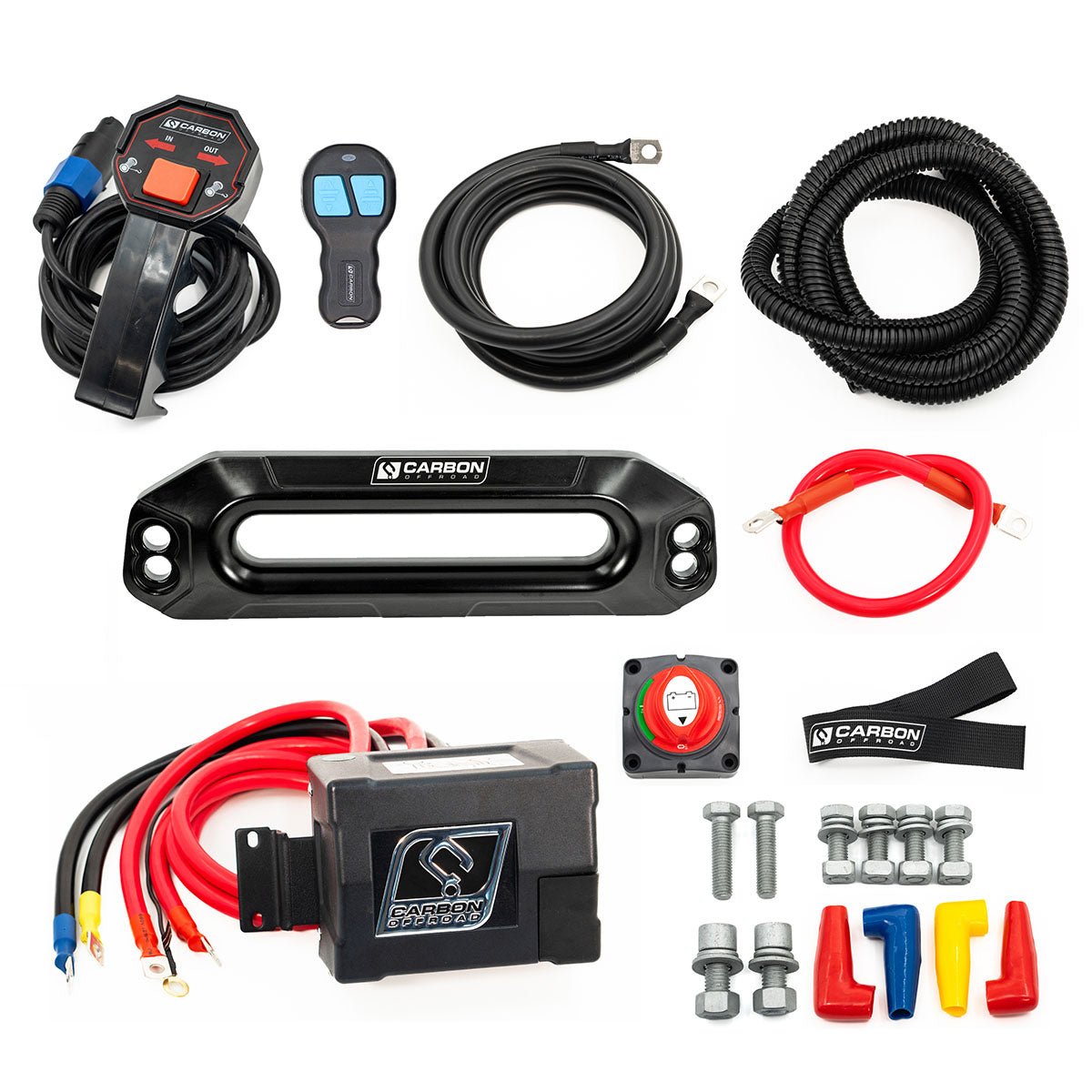

What's included
- Winch with synthetic rope fitted
- Wired remote + wireless remote
- MegaPro CNC billet fairlead
- Control box, cables and mounting hardware
