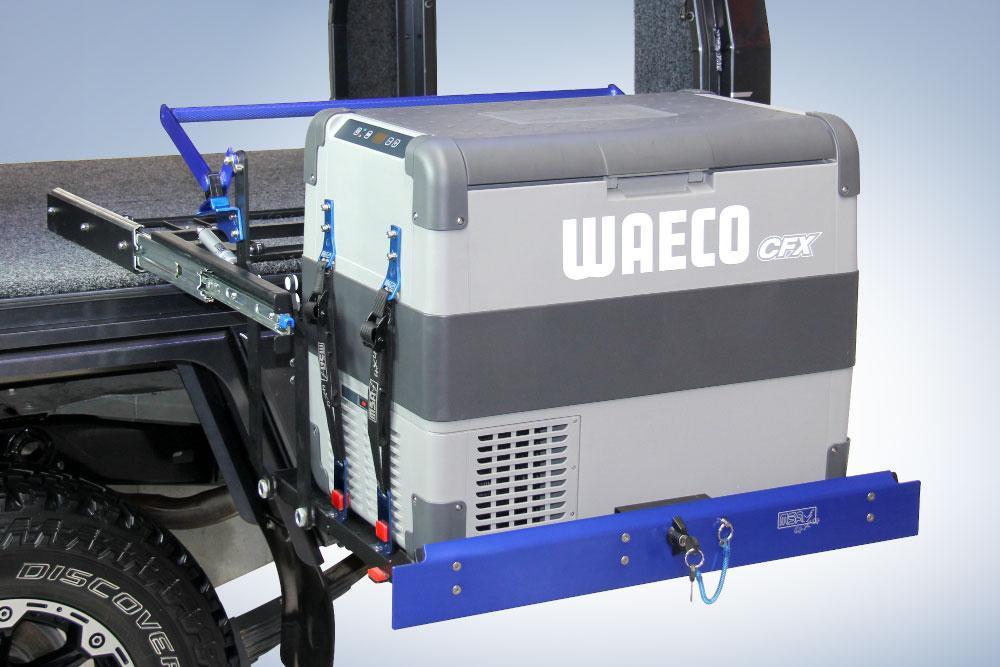

MSA 4X4's DS45SIDE Fridge Drop Slide is an innovative, patented design which allows you to safely lower your fridge, providing easy, convenient access to its contents.
Designed for applications where your slide is more suitably mounted sideways, the Side Drop Slide coasts smoothly out from its stowed position, before lowering 30cm in a safe and easy motion. This allows for the tray to remain in a horizontal position through the entire motion. The DS45SIDE allows for complete access to the front and side of your fridge. It also offers a compact design which will not decrease storage space in your vehicle.
The refined, patented design of our DS45SIDE Drop Slide features 800NM quality gas struts, providing safe, easy lifting and lowering for loads up to an incredible 200kg. Now you can fill your fridge and access it with ease!
Features:
- Compact size won't decrease storage space in your vehicle
- No drawer disassembly required to install the slide
- Designed to swing smoothly out further past the vehicle tailgate, providing easy and convenient access to the contents of your fridge from its complete front and side
- Unique lock-in lock-out safety feature
- Heavy duty 200kg slide runner rating
- Tie down straps & all fixings included as standard
- Stainless steel & blue anodised handle and face plate
- Fridge Barriers available to suit for extra fridge protection & increased storage possibilities
- Pre-drilled holes in the tray provide convenience in accommodating most popular fridges
Specifications:
- Weight: 40kg
- Freight Dimensions: 110 69 17cm
- Fridge Tray: 730 x 460
- Drop:300mm
- Slide Length Closed:530 + 20mm
- Slide Length Open:1170 + 20mm
- Overall Width:870 + 20mm
- Mount to Base:35mm
- Load Limit:200kg
- Max Set Back:125mm
- Gas Strut:800N
- Handle Width:815mm
