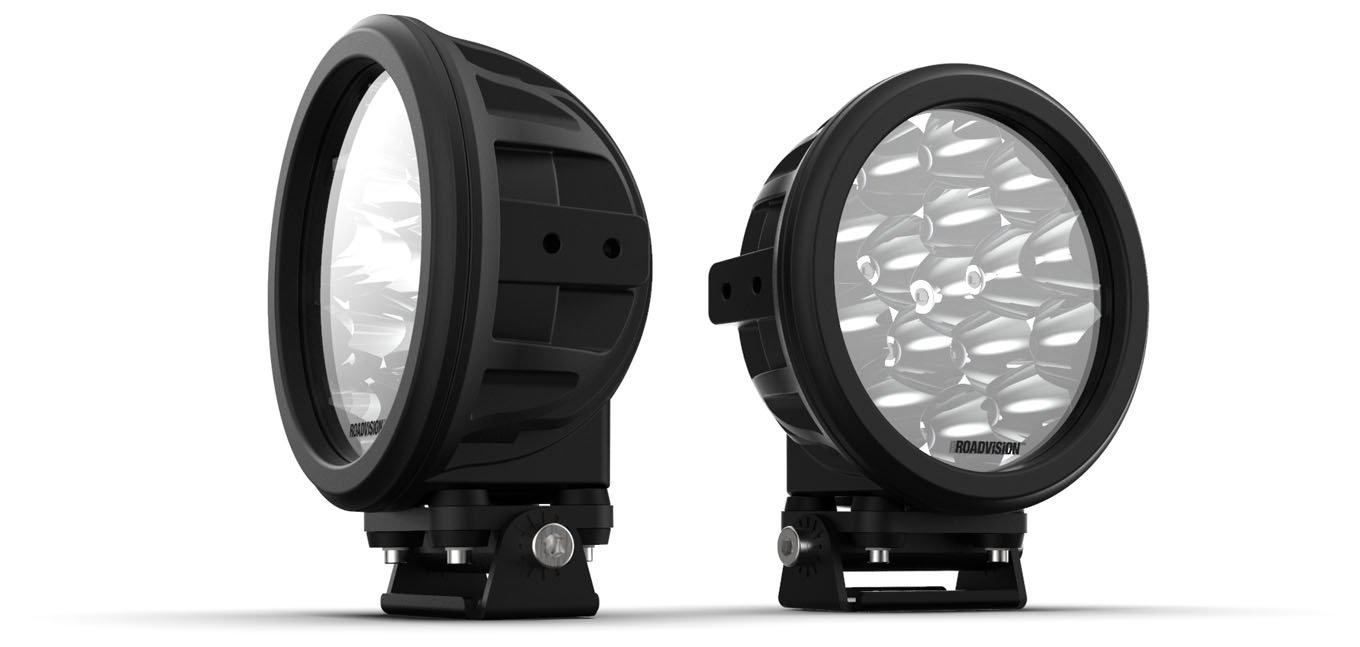

Producing a massive 6400lm of instant super white light output, the Dominator Series by Roadvision delivers a spot beam that reaches a whopping 936m, using 16 x 5W Cree LEDs and advanced optical technology.
Not only do they outperform, they outlast. Constructed with heavy duty die cast aluminium housings, an impact resistant polycarbonate lens and vibration resistant mounting, the Dominator Series are built for everything extreme.
Features:
- Dominator Series driving lamps produce 6400m of instant light output
- Available in spot or driving beams
- Advanced optics produces 936m spot beam
- 16 x 5W Cree LEDs produce super white light close to daylight
- Multi-volt 9-32V DC input
- Super low current draw of 5.4A
- 50,000 hour LED lifespan with solid state technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP67 rated
- Simple 2 wire installation with Deutsch plug
- Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved
Part Number | RDL37S | RDL37D |
---|---|---|
Description | 37 Series 7 Round 16 LED Spot | 37 Series 7 Round 16 LED Driving |
Beam Type | Spot Beam | Driving Beam |
Lumens Light Output (Effective) | 6400lm | 6400lm |
Beam Distance | 936m | 475m |
Total Watts | 80W | 80W |
Light Source | 16x5 Watt Cree LEDs | 16x5 Watt Cree LEDs |
Voltage Input | 9-32V DC | 9-32V DC |
Current Draw Amps | 5.4A @ 13.8V | 5.4A @ 13.8V |
Dimensions AxBxC | 179x114x212mm | 179x114x212mm |
Lamp Diameter | 7 (179mm) | 7 (179mm) |
Wiring | 2 Pin Deutsch Plug | 2 Pin Deutsch Plug |
Beam Pattern Type | Spot | Driving |
Lux @ 10m | 2190 Lux | 565 Lux |
Meters @ 1 Lux | 468m | 234m |
Meters @ 0.5 Lux | 936m | 475m |
