WCS 755mm Parabolic Leaf Spring for Hino FG1J Ranger Pro 9/ FM8J (2003 on) (Front)

Available to Order
SKU: HIN 37P
SKU: HIN 37P
Regular price $1,053.00
Regular price -0% $1,058.00 Sale price $1,053.00

WCS 755mm Parabolic Leaf Spring for Hino FG1J Ranger Pro 9/ FM8J (2003 on) (Front)

Upgrade to front parabolic springs for a smoother, more responsive ride without compromising strength or load-handling. If your commercial vehicle’s front end needs more flexibility and less fatigue, parabolic springs offer the perfect suspension solution. Whether you're navigating city streets or job sites, front parabolic upgrades provide a balanced blend of ride comfort and durability.

Features:

  • Improves steering precision and front axle responsiveness under load.
  • Reduces vibration and harshness, helping to protect the driver and sensitive components.
  • Maintains proper ride height while offering better articulation over uneven terrain.
  • Minimizes stress on the chassis and suspension, contributing to longer component life.
  • Compatible with heavy-duty and fleet applications requiring both comfort and control.
  • Coated for corrosion resistance and built for long-term durability in demanding environments.
  • Compatible with Hino FG1J Ranger Pro 9 and FM8J.

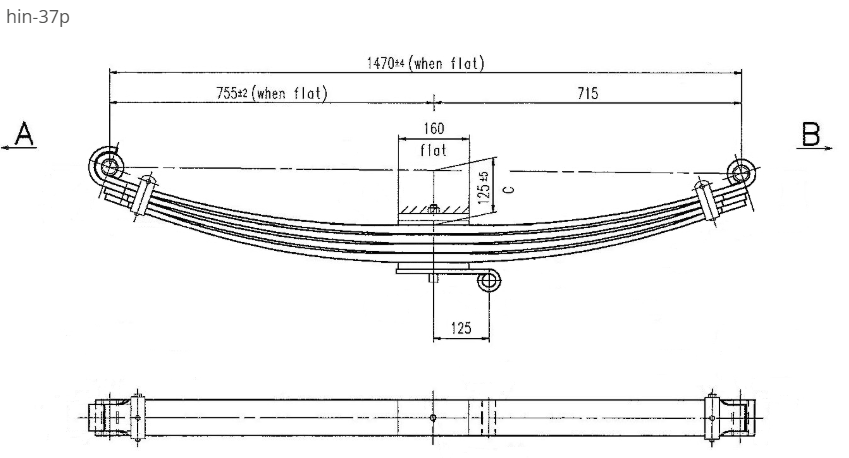

Specifications:

  • Weight: 65.9 kg
  • Suspension Type: Steer
  • No. Leaves: 4
  • Main Pack Mat.: 80X20 Para
  • C/Bolt: 5106
  • Bush Front: 3073
  • Bush Rear: 3073
  • Leaf A Dimension: 755mm
  • Leaf B Dimension: 715mm
