WCS 850mm Parabolic Leaf Spring for Hino FM8J/FY1E [Steer]
Regular price
$1,068.75
Regular price
-5%
$1,125.00
Sale price
$1,068.75
each
WCS 850mm Parabolic Leaf Spring for Hino FM8J/FY1E (Front Steer)
Upgrade to front parabolic springs for a smoother, more responsive ride without compromising strength or load-handling. If your commercial vehicle’s front end needs more flexibility and less fatigue, parabolic springs offer the perfect suspension solution. Whether you're navigating city streets or job sites, front parabolic upgrades provide a balanced blend of ride comfort and durability.
Features:
- Improves steering precision and front axle responsiveness under load.
- Reduces vibration and harshness, helping to protect the driver and sensitive components.
- Maintains proper ride height while offering better articulation over uneven terrain.
- Minimizes stress on the chassis and suspension, contributing to longer component life.
- Compatible with heavy-duty and fleet applications requiring both comfort and control.
- Coated for corrosion resistance and built for long-term durability in demanding environments.
- Compatible with Hino FM8J & FY1E

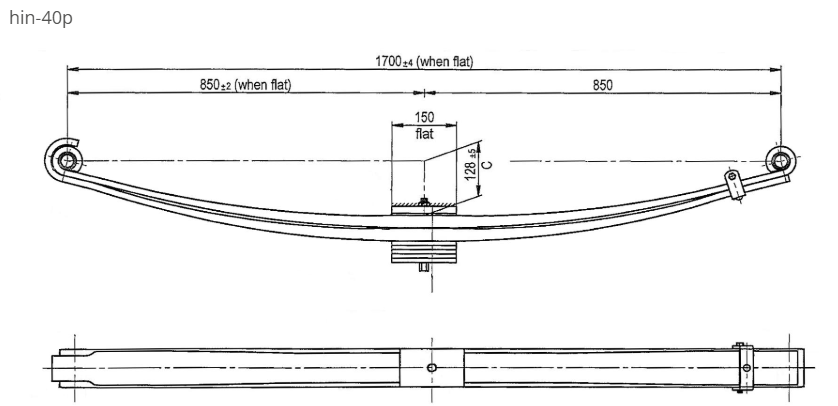

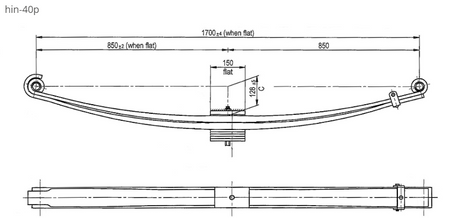

Specifications:
- Weight: 58.7 kg
- Suspension Type: Steer
- No. Leaves: PP+2+5PP
- Main Pack Mat.: 70X30 Para, 90X29 Para
- C/Bolt: M14x150
- Bush Front: 42x30x89
- Bush Rear: 42x30x89
- Leaf A Dimension: 850mm
- Leaf B Dimension: 850mm
-
OEM Reference: 48110-EOA60-A
