WCS Multileaf Spring (7 leaf, Low Mount) for Kenworth Single Point-Bix Six Drive (Drive)

WCS Multileaf Spring (7 leaf, Low Mount) for Kenworth Single Point-Bix Six Drive (Drive)

Give your commercial vehicles the backbone they deserve—install multileaf springs and experience the difference in durability and handling. Built to withstand constant strain and rough road conditions, extending service life and handles heavier payloads without excessive sag or bottoming out.

Features:

• Handles heavier payloads without excessive sag or bottoming out.
• Enhances rear-end support, especially during cornering and braking under load.
• Provides better axle control under acceleration and heavy braking, reducing driveline stress.
• Built to withstand constant strain and rough road conditions, extending service life.
• Maintains a more level stance under varying loads, improving handling and appearance.
• Reduces sway and roll tendencies when fully loaded, contributing to safer hauling.
• Offers more rigid support for rough or off-road driving conditions.
• Helps spread weight more evenly across the chassis for balanced performance.
• Made specifically for the Nissan Hino and Nissan UD FS1E, FS1K Ranger 50, and CGB450 to enable seamless installation.

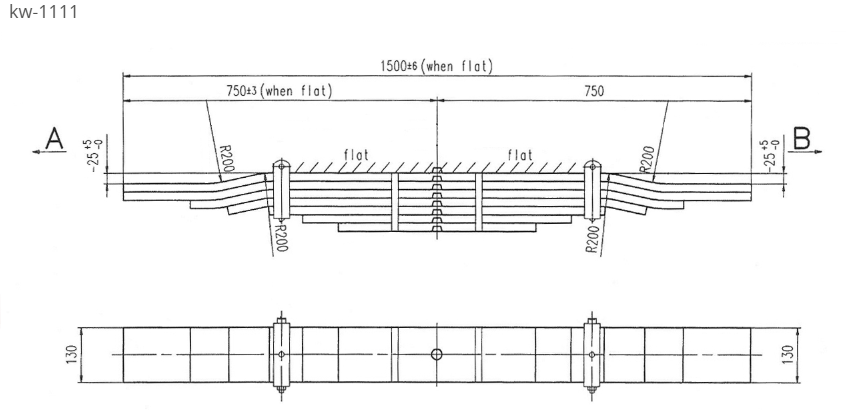

Specifications:

• Weight: 143 kg
• Suspension Type: Drive
• No. Leaves: 7
• Main Pack Mat.: 130×20
• C/Bolt: Nibbed
• Leaf A Dimension: 750mm
• Leaf B Dimension: 750mm
