WCS Multileaf Spring [8 leaf Low Mount] for Kenworth Single Point-Bix Six Drive (Drive)

WCS Multileaf Spring [8 leaf Low Mount] for Kenworth Single Point-Bix Six Drive (Drive)

Engineered for strength and stability, this heavy-duty multileaf spring is built to handle extreme loads and punishing terrain. Whether you're hauling across highways or rugged work sites, the low-mount design and robust leaf construction ensure reliable support and controlled performance under pressure.

Features:

• Handles heavier payloads without excessive sag or bottoming out.
• Enhances rear-end support, especially during cornering and braking under load.
• Provides better axle control under acceleration and heavy braking, reducing driveline stress.
• Built to withstand constant strain and rough road conditions, extending service life.
• Maintains a more level stance under varying loads, improving handling and appearance.
• Reduces sway and roll tendencies when fully loaded, contributing to safer hauling.
• Offers more rigid support for rough or off-road driving conditions.
• Helps spread weight more evenly across the chassis for balanced performance.
• Made specifically for the Kenworth Single Point Big Six Drive suspension setup.

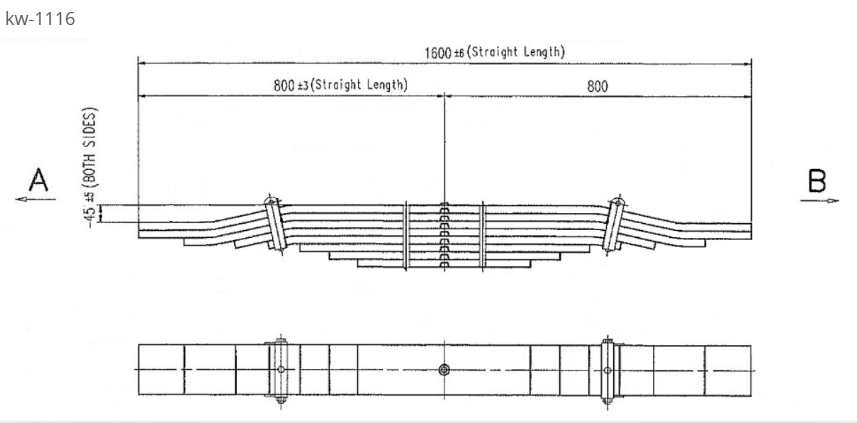

Specifications:

• Weight: 174.4kg
• Suspension Type: Drive
• Number of Leaves: 8
• Main Pack Material: 130x20mm
• Centrebolt: Nibbed
• Leaf A Dimension: 800mm
• Leaf B Dimension: 800mm
