WCS Multileaf Spring for Hino FE3H Raven (1995 on)/FF1J Ranger 8 (1998 on) (Drive)

Available to Order
SKU: HIN 25
SKU: HIN 25
Regular price $1,701.00
Regular price -1% $1,715.00 Sale price $1,701.00

WCS Multileaf Spring for Hino FE3H Raven (1995 on)/FF1J Ranger 8 (1998 on) (Drive)

Give your commercial vehicles the backbone they deserve—install multileaf springs and experience the difference in durability and handling. Built to withstand constant strain and rough road conditions, extending service life and handles heavier payloads without excessive sag or bottoming out.

Features:

  • Handles heavier payloads without excessive sag or bottoming out.
  • Enhances rear-end support, especially during cornering and braking under load.
  • Provides better axle control under acceleration and heavy braking, reducing driveline stress.
  • Built to withstand constant strain and rough road conditions, extending service life.
  • Maintains a more level stance under varying loads, improving handling and appearance.
  • Reduces sway and roll tendencies when fully loaded, contributing to safer hauling.
  • Offers more rigid support for rough or off-road driving conditions.
  • Helps spread weight more evenly across the chassis for balanced performance.
  • Made specifically for the Hino FE3H Raven (1995 on) and Hino Ranger 8 (1998 on).

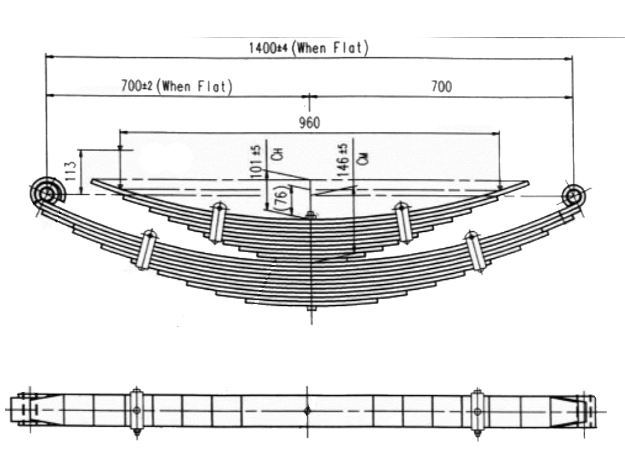

Specifications:

  • Weight: 149.44 kg
  • Suspension Type: Drive
  • No. Leaves: M=10/J=9+2PP
  • Main Pack Mat.: 80X12-10
  • C/Bolt: 5166
  • Bush Front: 3073
  • Bush Rear: 3073
  • Leaf A Dimension: 700mm
  • Leaf B Dimension: 700mm
