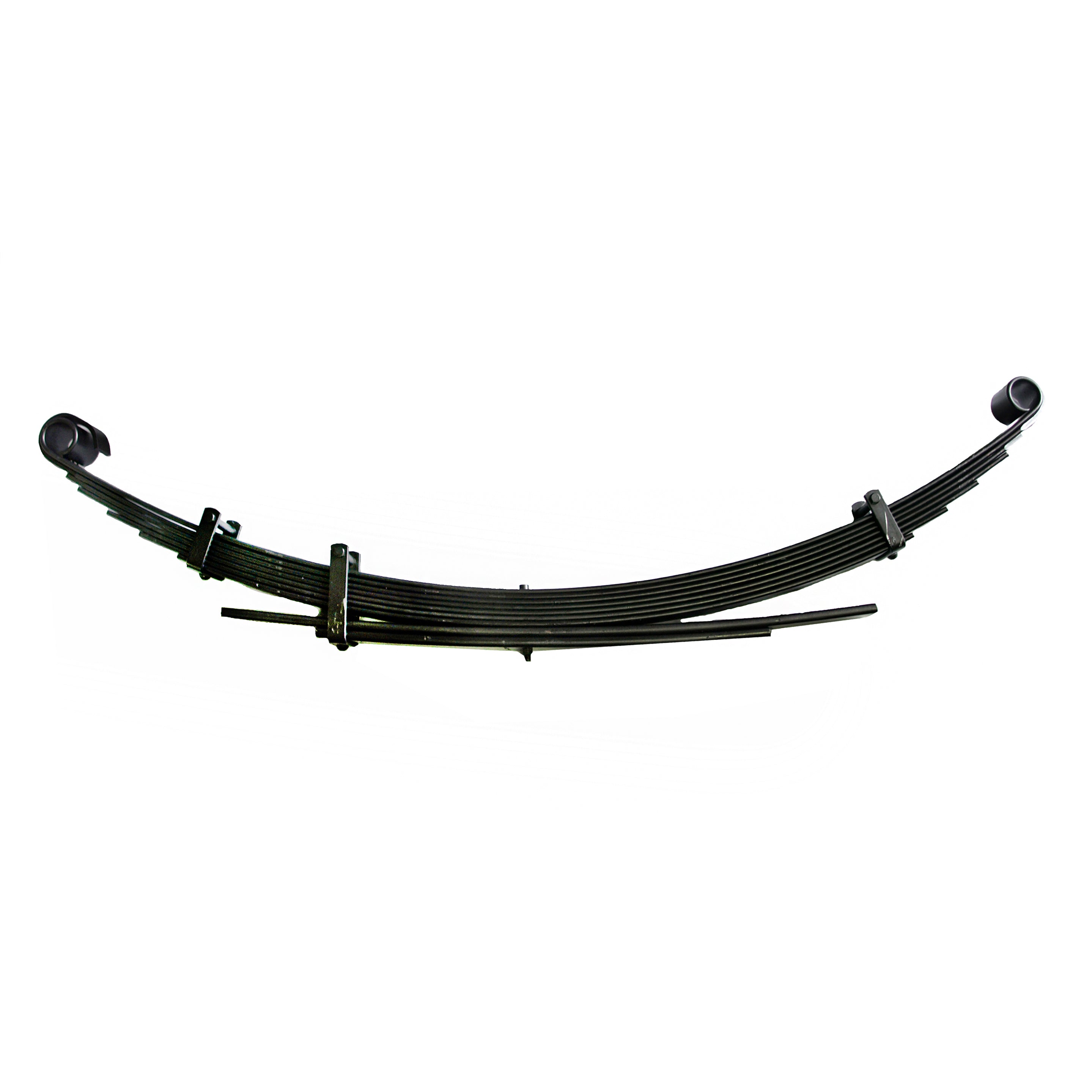

WCS Multileaf Spring for Mazda Trader (Rear)

Drive
Available to Order
SKU: MAZ 02
SKU: MAZ 02
Regular price $576.00

WCS Multileaf Spring for Mazda Trader(Rear)

Give your commercial vehicles the backbone they deserve—install multileaf springs and experience the difference in durability and handling. Built to withstand constant strain and rough road conditions, extending service life and handles heavier payloads without excessive sag or bottoming out.

Features:

  • Handles heavier payloads without excessive sag or bottoming out.
  • Enhances rear-end support, especially during cornering and braking under load.
  • Provides better axle control under acceleration and heavy braking, reducing driveline stress.
  • Built to withstand constant strain and rough road conditions, extending service life.
  • Maintains a more level stance under varying loads, improving handling and appearance.
  • Reduces sway and roll tendencies when fully loaded, contributing to safer hauling.
  • Offers more rigid support for rough or off-road driving conditions.
  • Helps spread weight more evenly across the chassis for balanced performance.
  • Made for some Ford models and the Mazda T-Series with GVM of 4495kg and the Mazda T3500 with nominal payload of 2T to enable seamless installation.

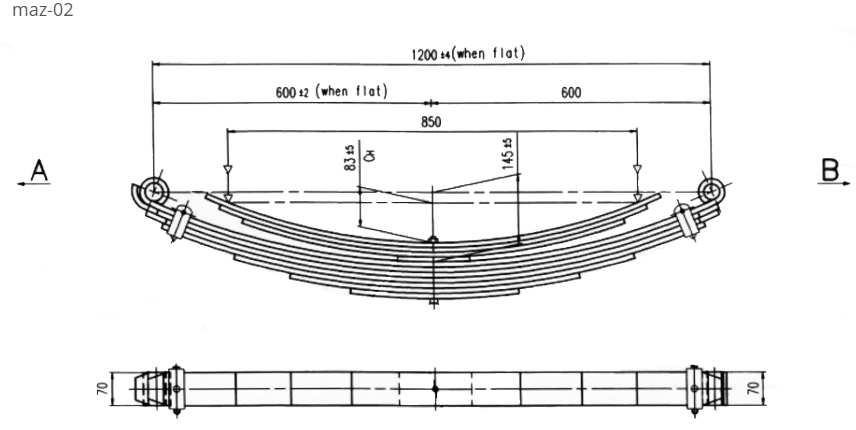

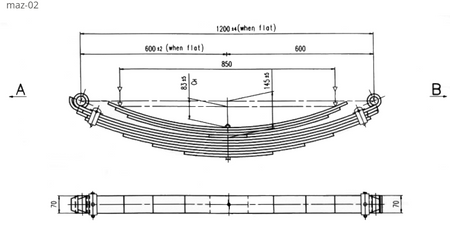

Specifications:

  • Suspension Type: Drive
  • Number of Leaves: M = 7 / J = 4
  • Main Pack Material: 70 x 11
  • Center Bolt: 5015
  • Front Bush: 3652
  • Rear Bush: 3651
  • Leaf A Dimension (mm): 600
  • Leaf B Dimension (mm): 600
