WCS Multileaf Spring for Mercedes-Benz 2222 (Front)

Front
113kg
Available to Order
SKU: MER 07
SKU: MER 07
Regular price $1,116.00
Regular price -1% $1,125.00 Sale price $1,116.00

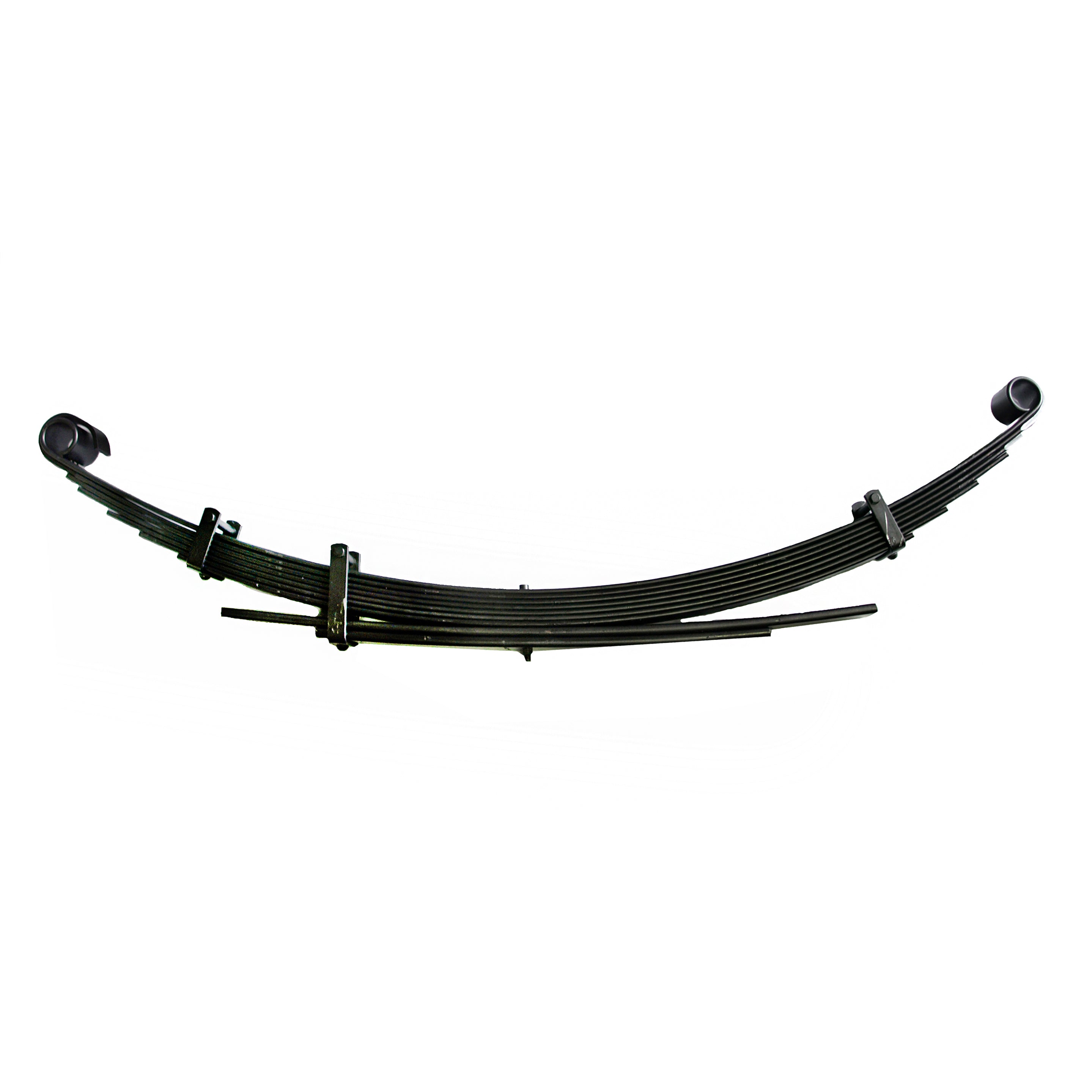

WCS Multileaf Spring for Mercedes-Benz 2222 (Front)

Front multileaf suspension systems use a series of layered steel leaves to support the front axle and absorb road impacts. Known for their strength and durability, they are commonly used in heavy-duty vehicles where load-bearing capacity and rugged performance are critical.

Features:

  • Multiple leaves provide progressive load control and increased durability.
  • Maintains proper ride height to ensure safe handling and visibility.
  • Enhances steering stability and reduces nose dive during braking.
  • Designed to perform reliably in harsh road and job site conditions.
  • Helps reduce front-end sag, improving suspension geometry and component lifespan.
  • Compatible with the Mercedes-Benz 1428.

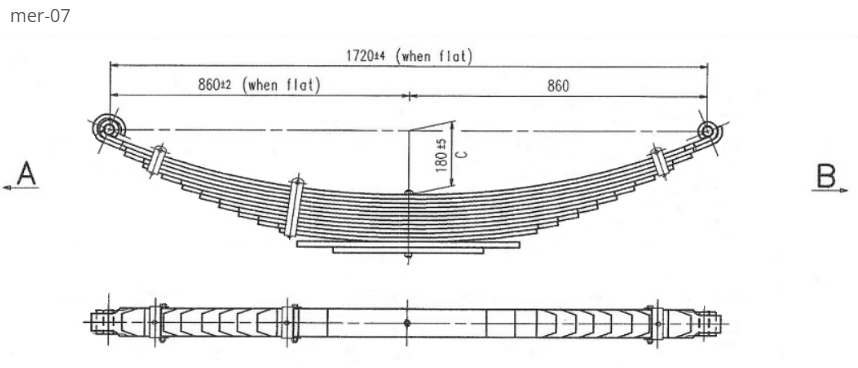

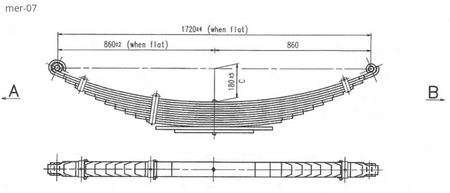

Specifications:

  • Weight: 113 kg
  • Suspension Type: Front
  • Number of Leaves: 11 + 2
  • Main Pack Material: 80 x 11–16
  • Center Bolt: 5108
  • Front Bush: 3053
  • Rear Bush: 3053
  • Leaf A Dimension (mm): 860
  • Leaf B Dimension (mm): 860
