WCS Multileaf Spring for Mitsubishi FM515 (Rear)

Rear
110.55kg
Available to Order
SKU: MIT 04
SKU: MIT 04
Regular price $1,035.00
Regular price -0% $1,037.00 Sale price $1,035.00

WCS Multileaf Spring for Mitsubishi FM515 (Rear)

Upgrade the rear suspension of your Mitsubishi FM515 with this heavy-duty WCS Multileaf Spring, engineered to carry serious weight while maintaining ride height, control, and long-term durability. Perfect for commercial transport and freight operations, this spring system is built to handle rear-end loads with minimal sag and maximum reliability.

Features:

  • Heavy-duty multileaf design supports rear axle loads in demanding fleet applications.
  • Maintains proper ride height for stability, safety, and consistent handling under load.
  • Reduces rear-end squat and improves vehicle balance during heavy braking or uneven loading.
  • Constructed from high-strength spring steel for durability in rugged conditions.
  • Designed for long service life with minimal maintenance in road or worksite environments.
  • Coated for corrosion resistance, suitable for year-round use in harsh climates.
  • Compatible with Mitsubishi Fighter 10.0 FM65F, FM677S, FM115, FM515, FM657, and FM67F models.

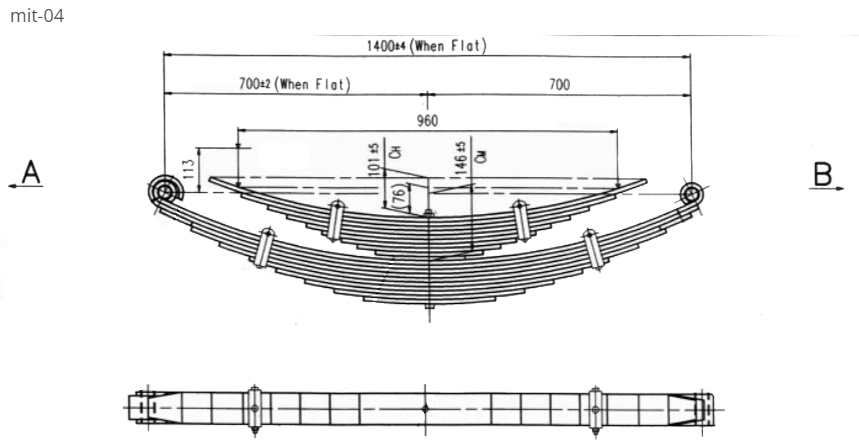

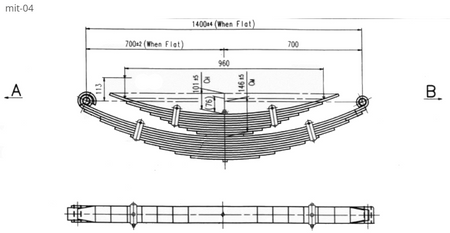

Specifications:

  • Weight: 110.55kg
  • Suspension Type: Rear
  • No. Leaves: M=10 / J=9+PP
  • Main Pack Material: 80x11mm
  • Centrebolt: 5152
  • Bush Front: 3070
  • Bush Rear: 3070
  • Leaf A Dimension: 700mm
  • Leaf B Dimension: 700mm
