WCS Parabolic Leaf Spring (094-1268-00) for All Western Star Trucks (1990 on) (Front)
82.3kg
Available to Order
Regular price
$1,575.00
Regular price
-1%
$1,583.00
Sale price
$1,575.00
WCS Parabolic Leaf Spring (094-1268-00) for All Western Star trucks (1990 on) (Front)
Engineered for endurance, parabolic suspension systems reduce weight and wear—keeping your fleet productive and on the road longer.
Features:
- Parabolic design provides a smoother, more comfortable ride by reducing harsh road feedback.
- The tapered leaf structure allows for better weight dispersion, minimizing stress on the chassis.
- Fewer leaves and less friction between them results in quieter operation and lower wear over time.
- Designed to maintain consistent contact with the road, improving steering precision and control.
- High-quality materials and optimized spring flex reduce fatigue and extend service life.
Specifications:
- Weight: 82.3 kg
- Suspension Type: Steer
- No. Leaves: 4
- Main Pack Mat.: 100 Para
- C/Bolt: 5033
- Bush Front: 3030
- Bush Rear: 3030

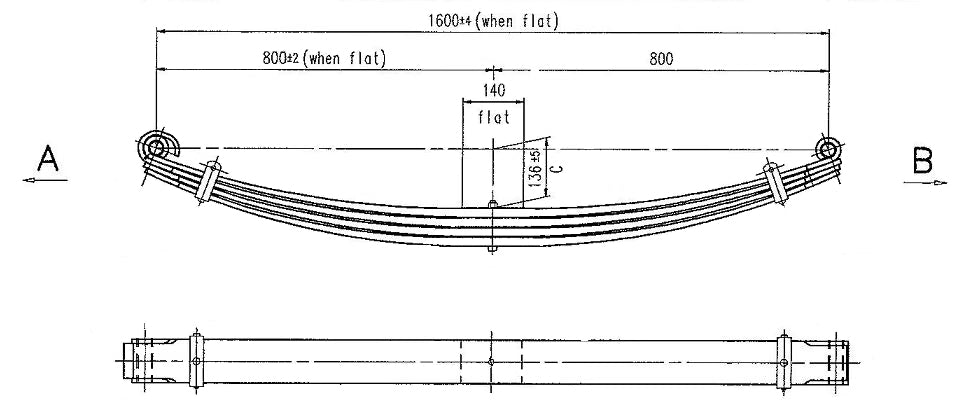

- Leaf A Dimension: 800mm
- Leaf B Dimension: 800mm
- Manufacturer Part Number: 094-1268-00
