WCS Parabolic Leaf Spring for Isuzu FVD950HD/FVD23 (2003 on) (Front)

70kg
Available to Order
SKU: ISU 33P
SKU: ISU 33P
Regular price $1,790.00

WCS Parabolic Leaf Spring for Isuzu FVD950HD/FVD23 (2003 on) (Front)

Upgrade to front parabolic springs for a smoother, more responsive ride without compromising strength or load-handling. If your commercial vehicle’s front end needs more flexibility and less fatigue, parabolic springs offer the perfect suspension solution. Whether you're navigating city streets or job sites, front parabolic upgrades provide a balanced blend of ride comfort and durability.

Features:

  • Improves steering precision and front axle responsiveness under load.
  • Reduces vibration and harshness, helping to protect the driver and sensitive components.
  • Maintains proper ride height while offering better articulation over uneven terrain.
  • Minimizes stress on the chassis and suspension, contributing to longer component life.
  • Compatible with heavy-duty and fleet applications requiring both comfort and control.
  • Coated for corrosion resistance and built for long-term durability in demanding environments.
  • Compatible with Isuzu FVD950 Heavy Duty and FVD23 (2003 on).

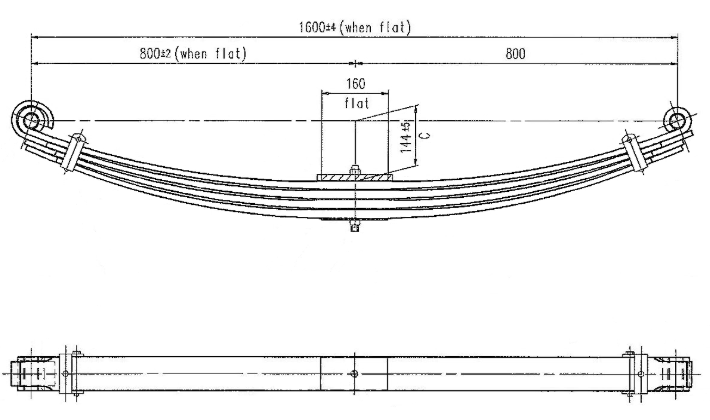

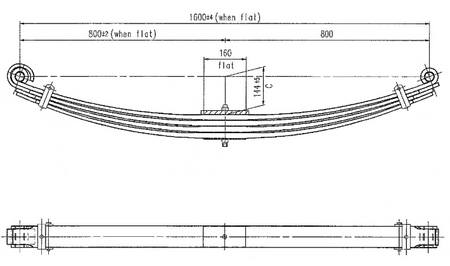

Specifications:

  • Weight: 70 kg
  • Suspension Type: Front
  • No. Leaves: 4
  • Main Pack Material: 80x22 Para
  • Centrebolt: 5171
  • Bush Front: 3075
  • Bush Rear: 3075
  • Leaf A Dimension: 800mm
  • Leaf B Dimension: 800mm
