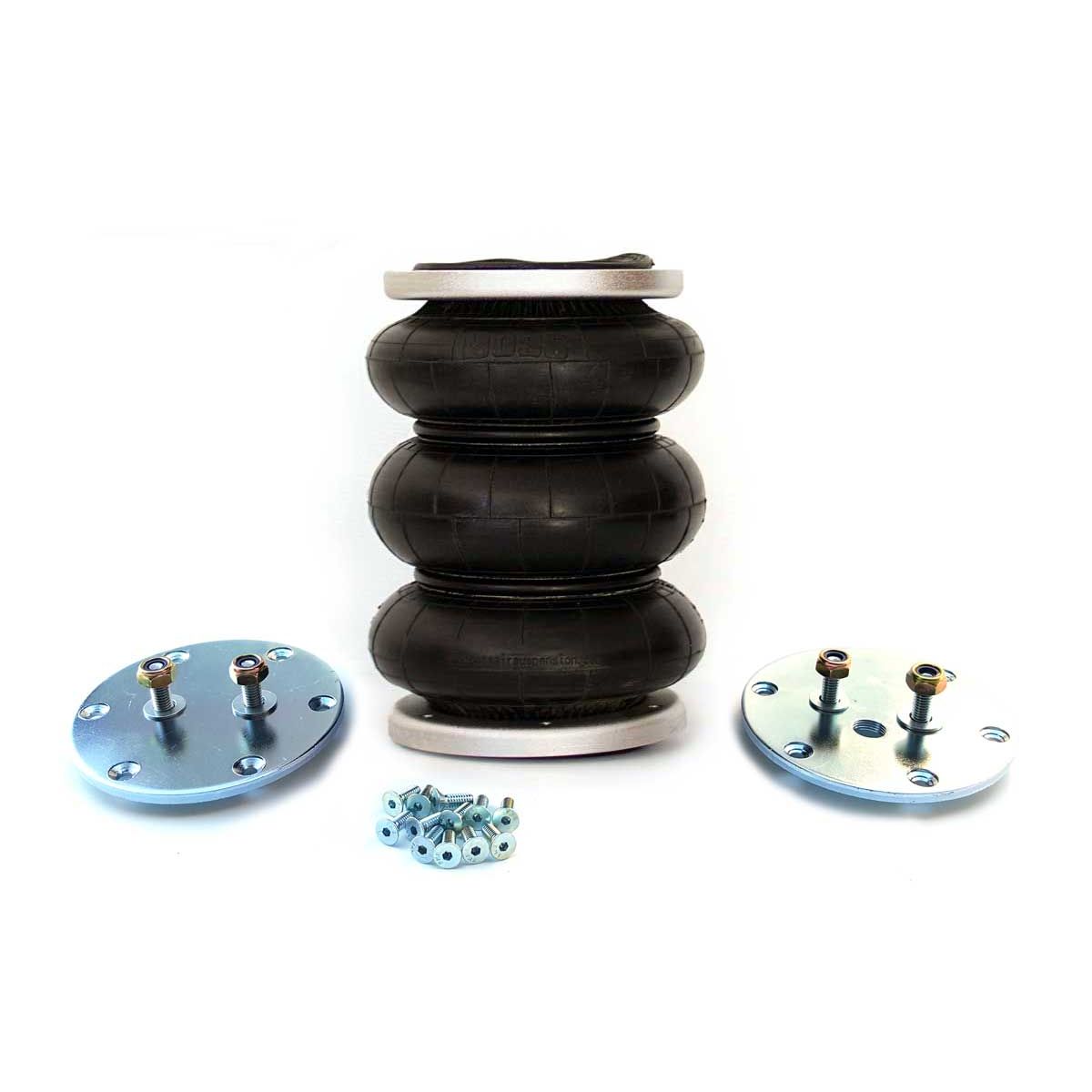

#2603 triple bag complete have the same diameter as the #2600 bag but with 1 extra bellow making for a genuine 10" travel (EXTENDED HEIGHT APPROX 380MM) airbag, perfect for coil replacements in 4wd vehicles and off road situations.
Includes:
- 2600lb Extreme Series Tripple Bag
- Top and Bottom plate and stainless bolts.
- 12 countersunk stainless bolts
Fully compressed - 75mm with 6mm ends fitted
Max diameter - 190mm (widest when fully compressed)
Max Height - 380mm
Max working pressure 0-160psi
Test pressure - 480psi
Burst pressure - 1000psi
Female 3/8 NPT port for Air inlet port. (Note ***NO Air fitting supplied***)
