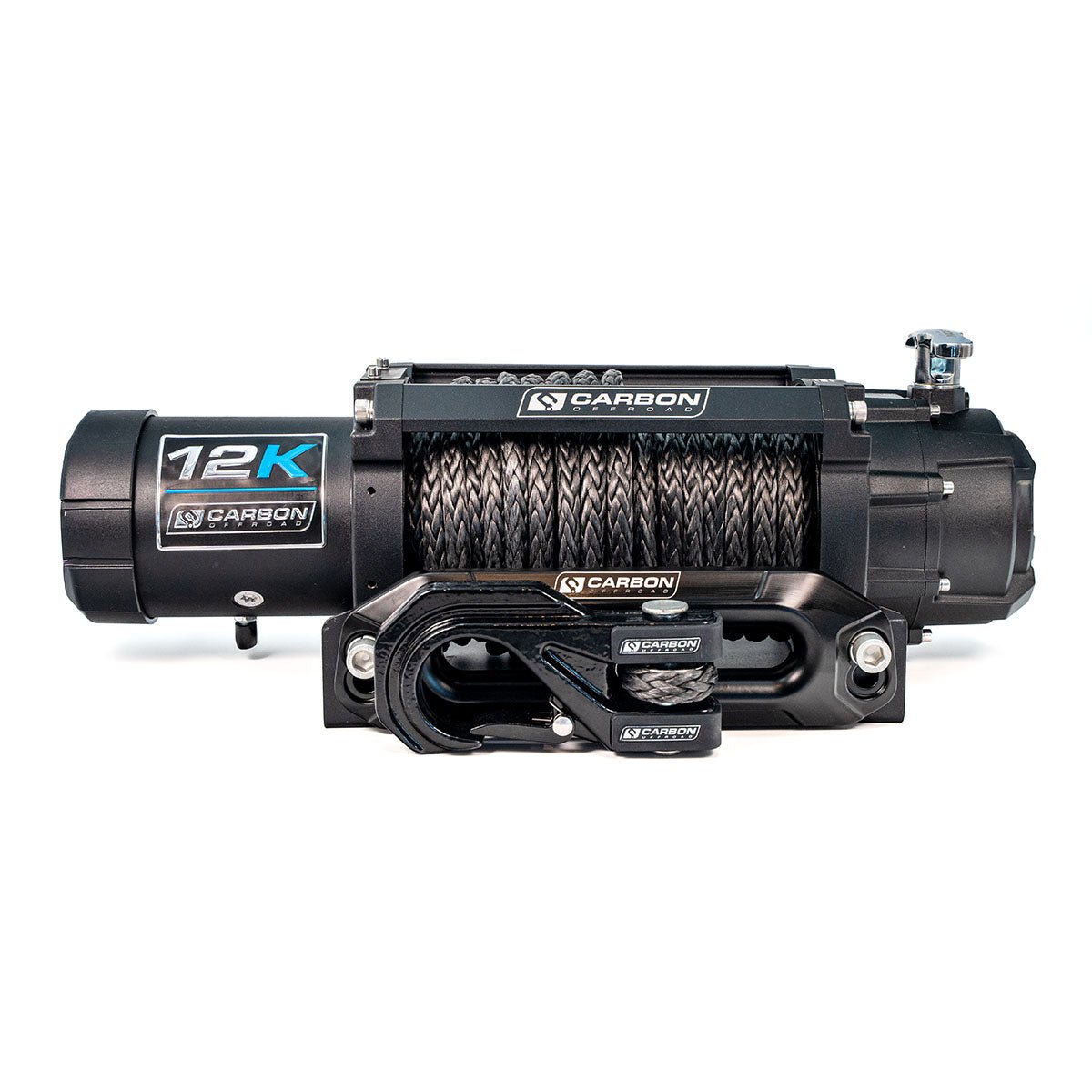

Carbon Offroad 12000lb Winch V3X - BYO Hook
The Carbon 12K V3X BYO Hook package is the clean option if you already run a MegaPro hook or your own soft shackle setup.
You still get a lightweight, IP68‑sealed 12,000lb winch with premium hardware and the full winch accessory kit—minus the supplied hook/soft shackle.
Key features
- BYO Hook package: no hook or soft shackle included
- IP68 sealing for dust‑tight protection and water submersion rating
- Wireless + wired remotes included for safer operation
Technical specs
- Part number: CW-12KV3X
- Rated line pull: 12,000lb (5,450kg) single line
- Motor: 12V DC 6HP series‑wound (24V option available)
- Geartrain/ratio: 3‑stage planetary, 218:1
- Rope: 24m × 10mm synthetic
- Drum: 63mm × 224mm
- Mounting bolt pattern: 254mm × 114.3mm
- Winch size: 538mm × 158mm × 187mm
- Weight (winch only): 19.7kg
- Weight (kit complete): 26.65kg

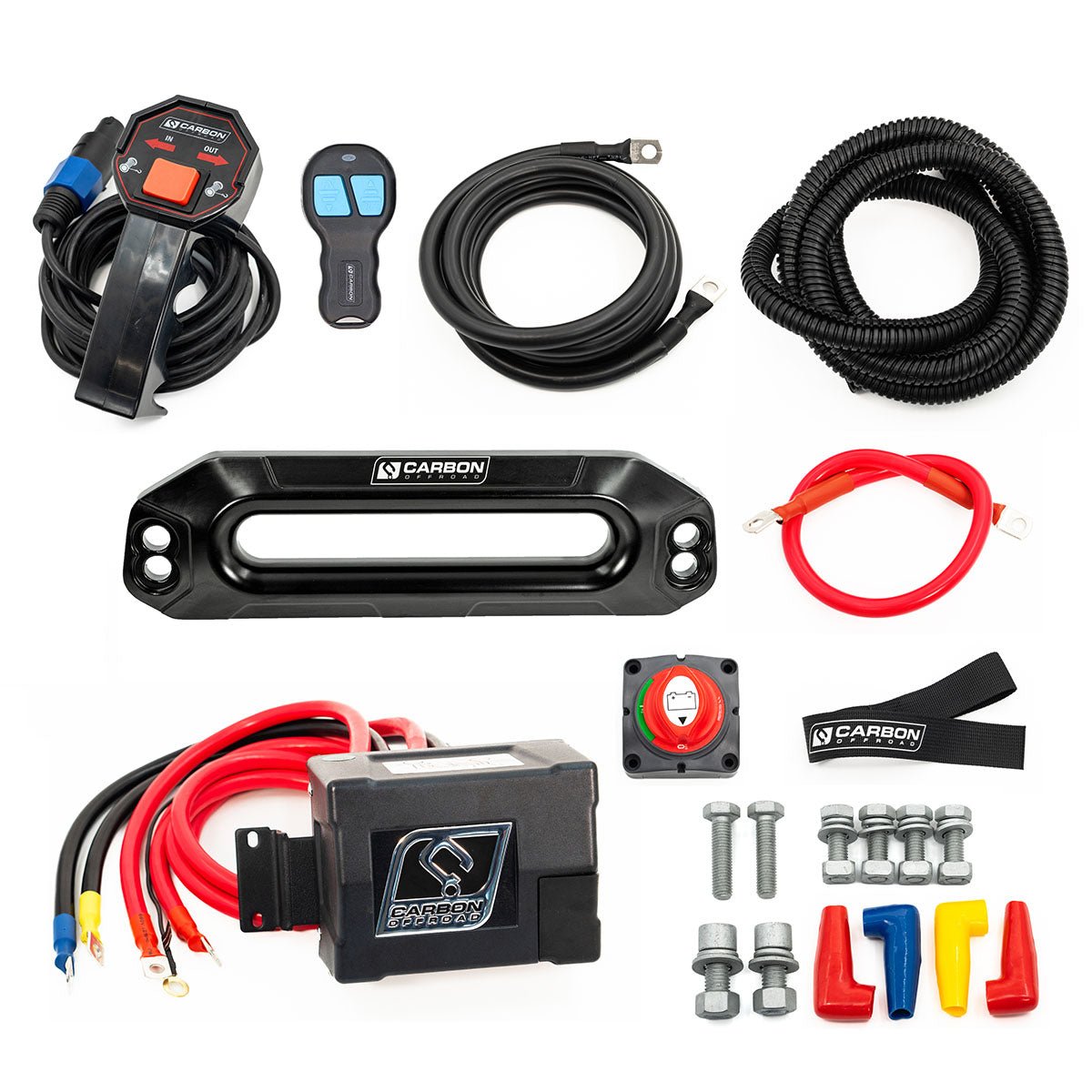

What's included
- Winch with synthetic rope fitted
- Winch accessory kit (control box, cables, isolator switch, wired + wireless remotes)
- CNC billet alloy fairlead
- Mounting hardware
Note: This is a BYO Hook package (no hook/soft shackle supplied).
