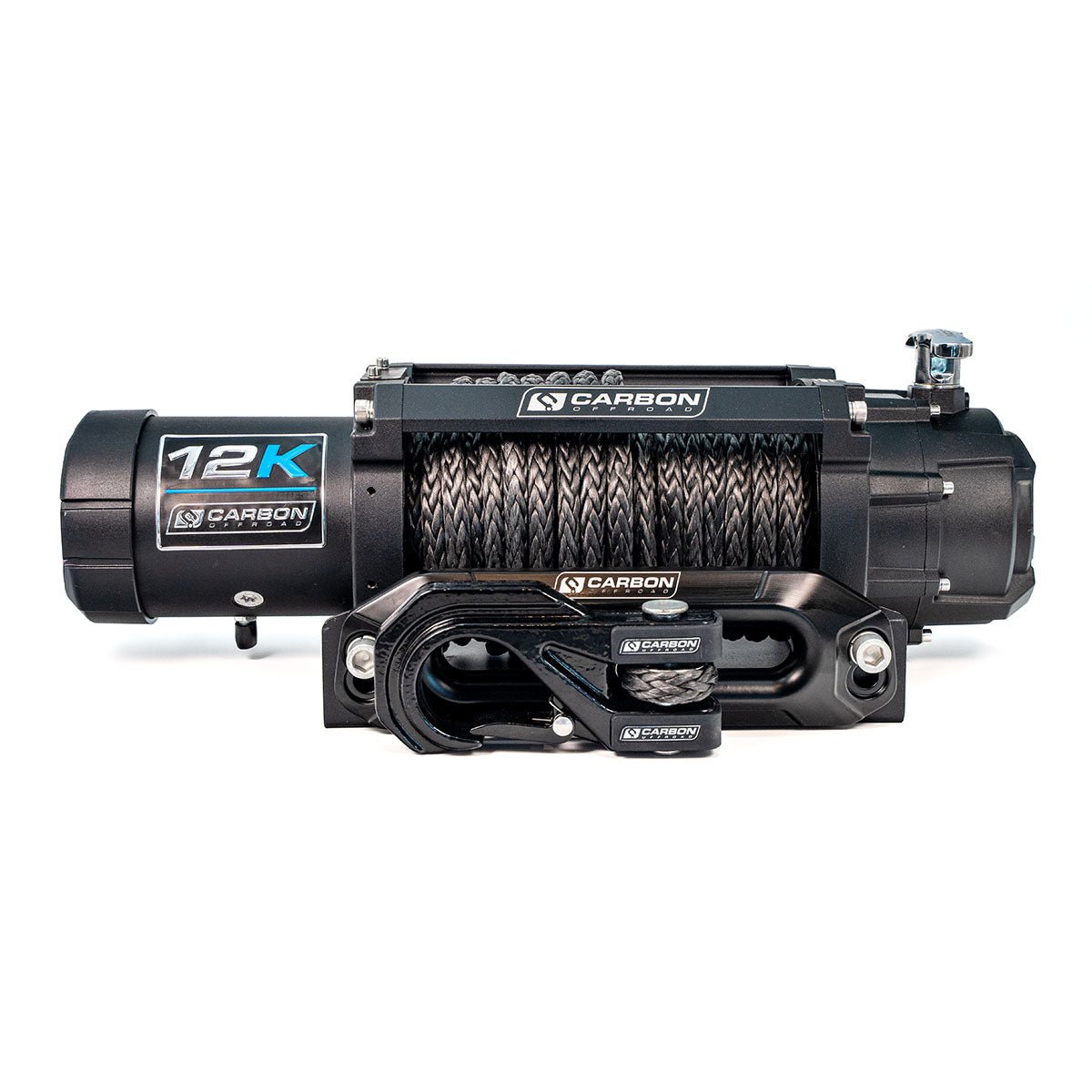

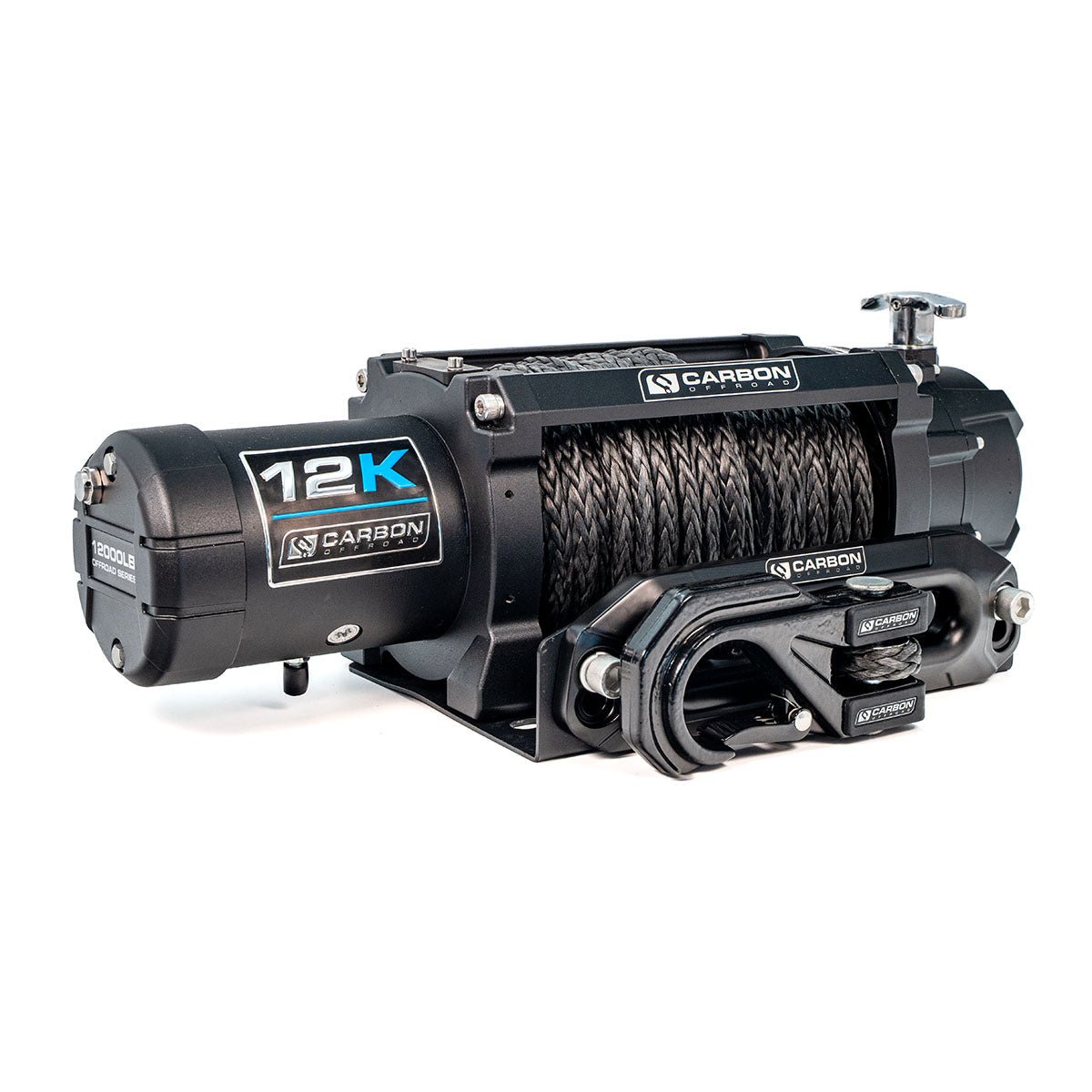

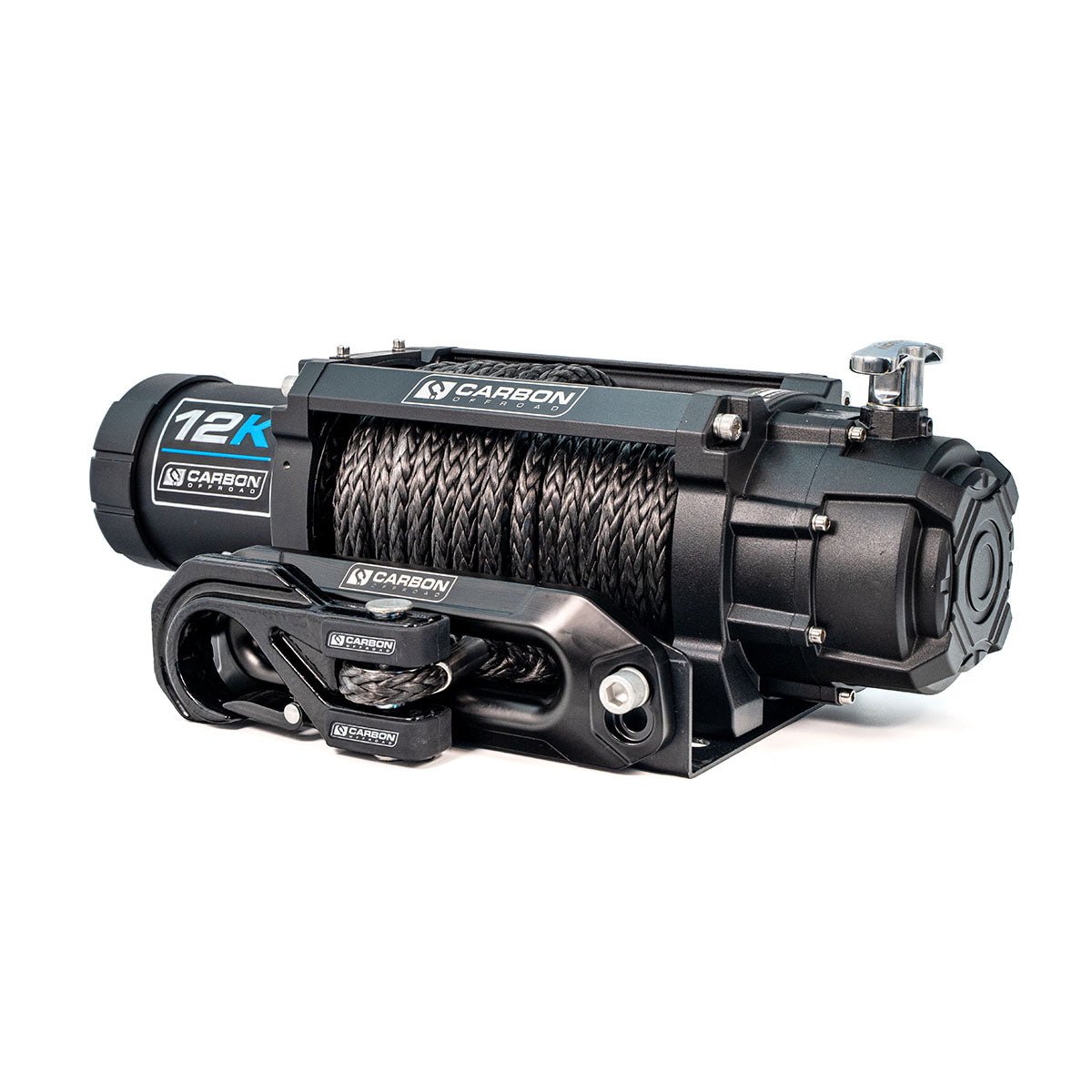

Carbon Offroad 12K Winch V3X with MegaPro Hook 12000lb
The Carbon 12K V3X with MegaPro Hook is a lightweight, high‑performance 12,000lb winch built for Australian 4WD recovery.
With IP68 sealing, wired + wireless control and premium CNC hardware, it’s ready to bolt in and get you moving again.
Key features

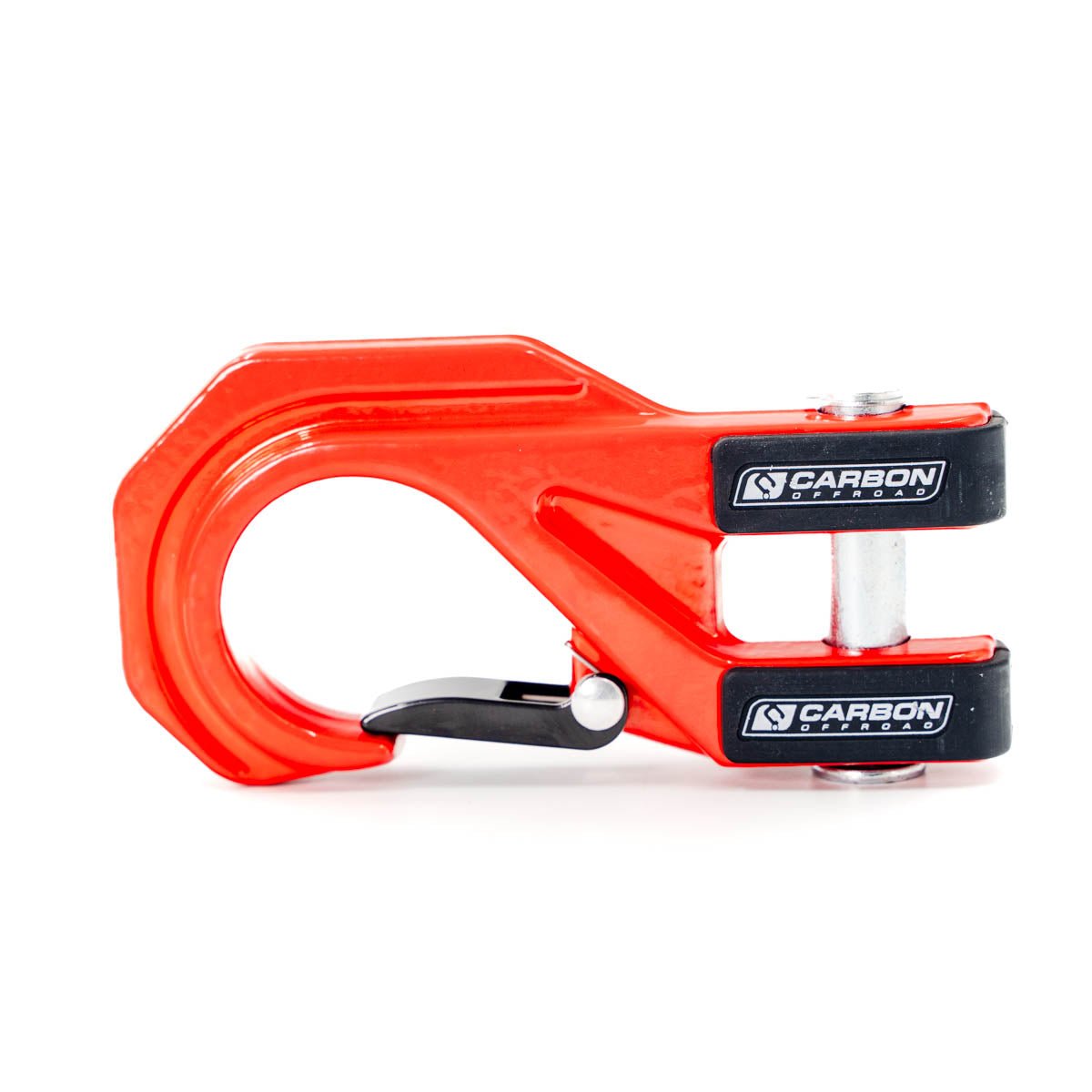

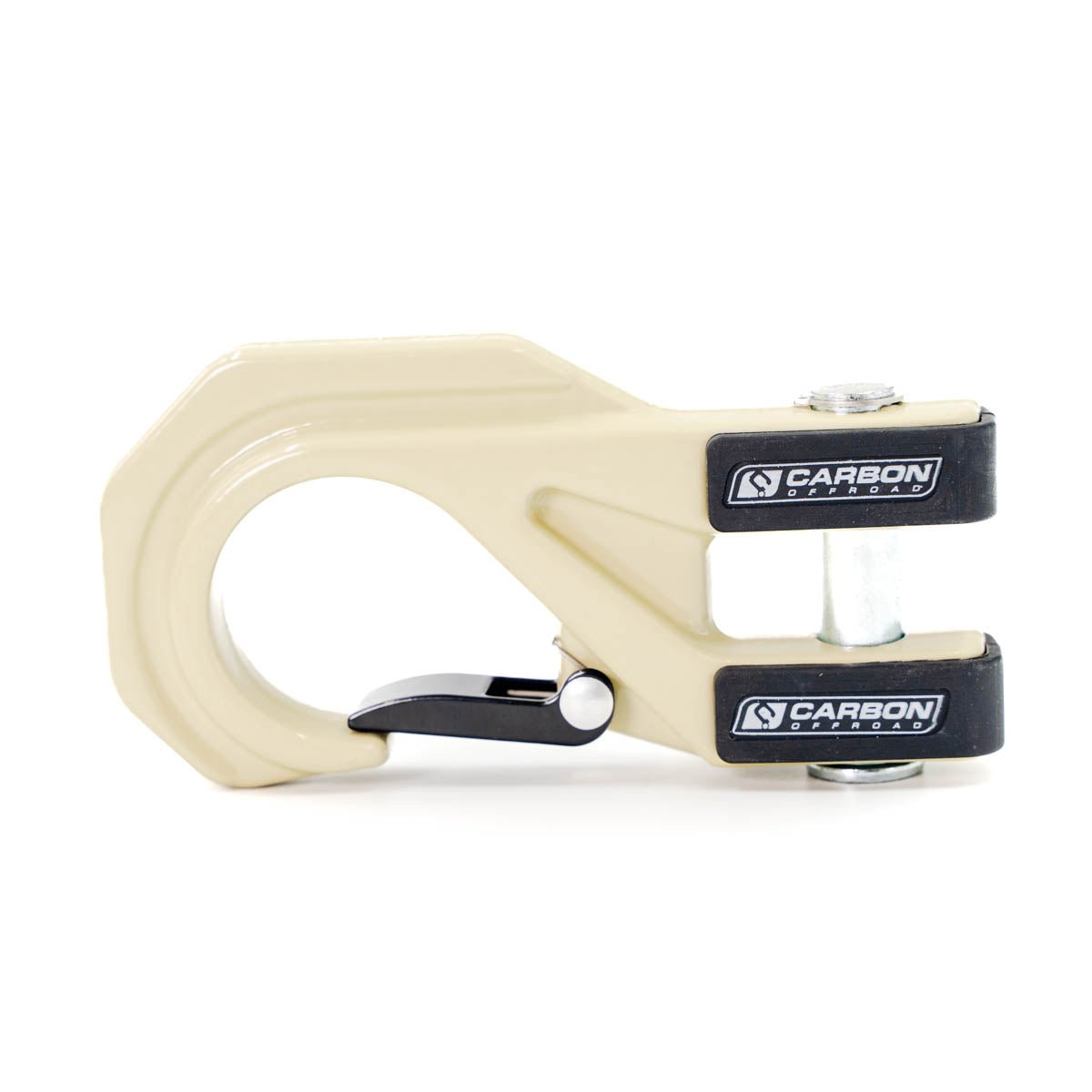

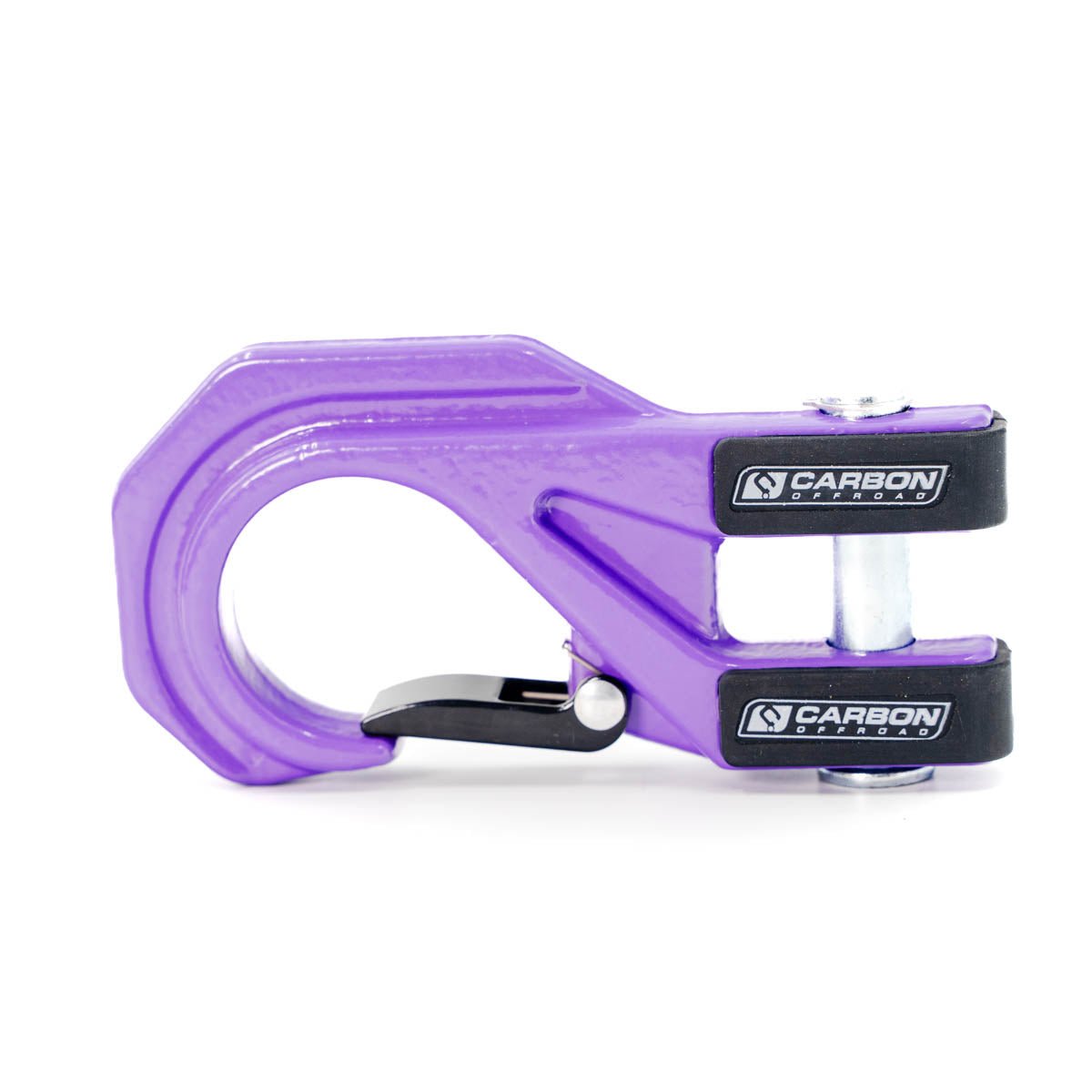

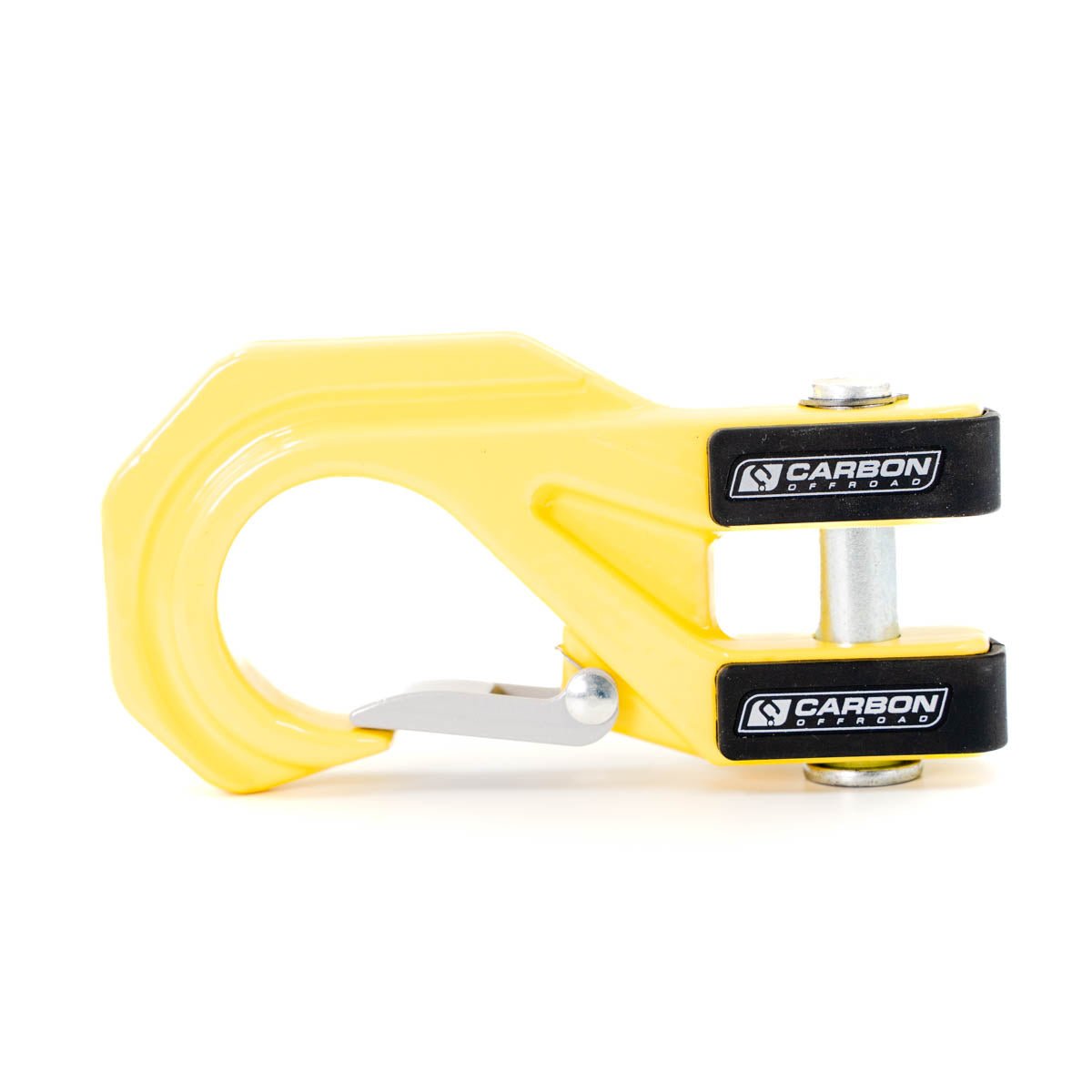

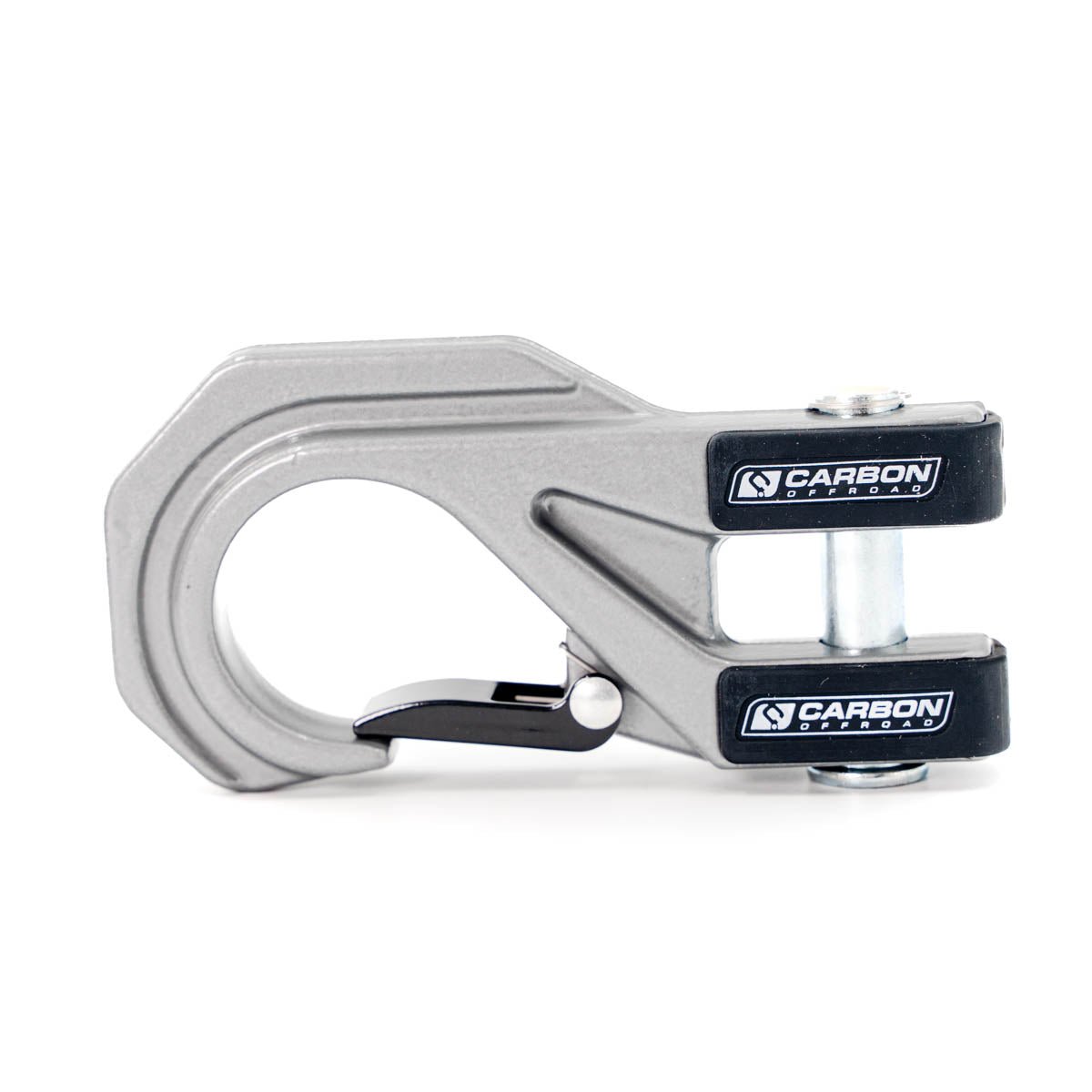

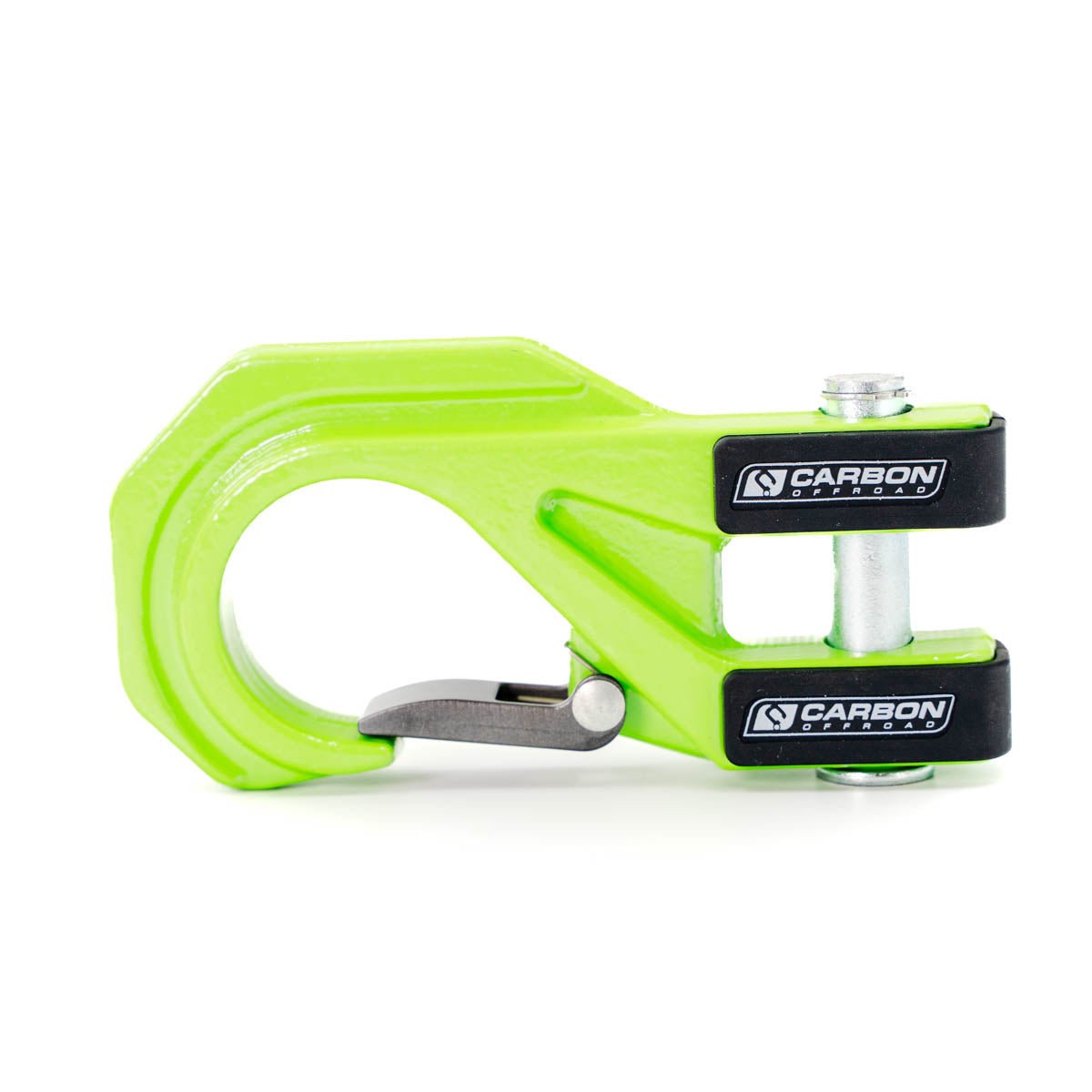

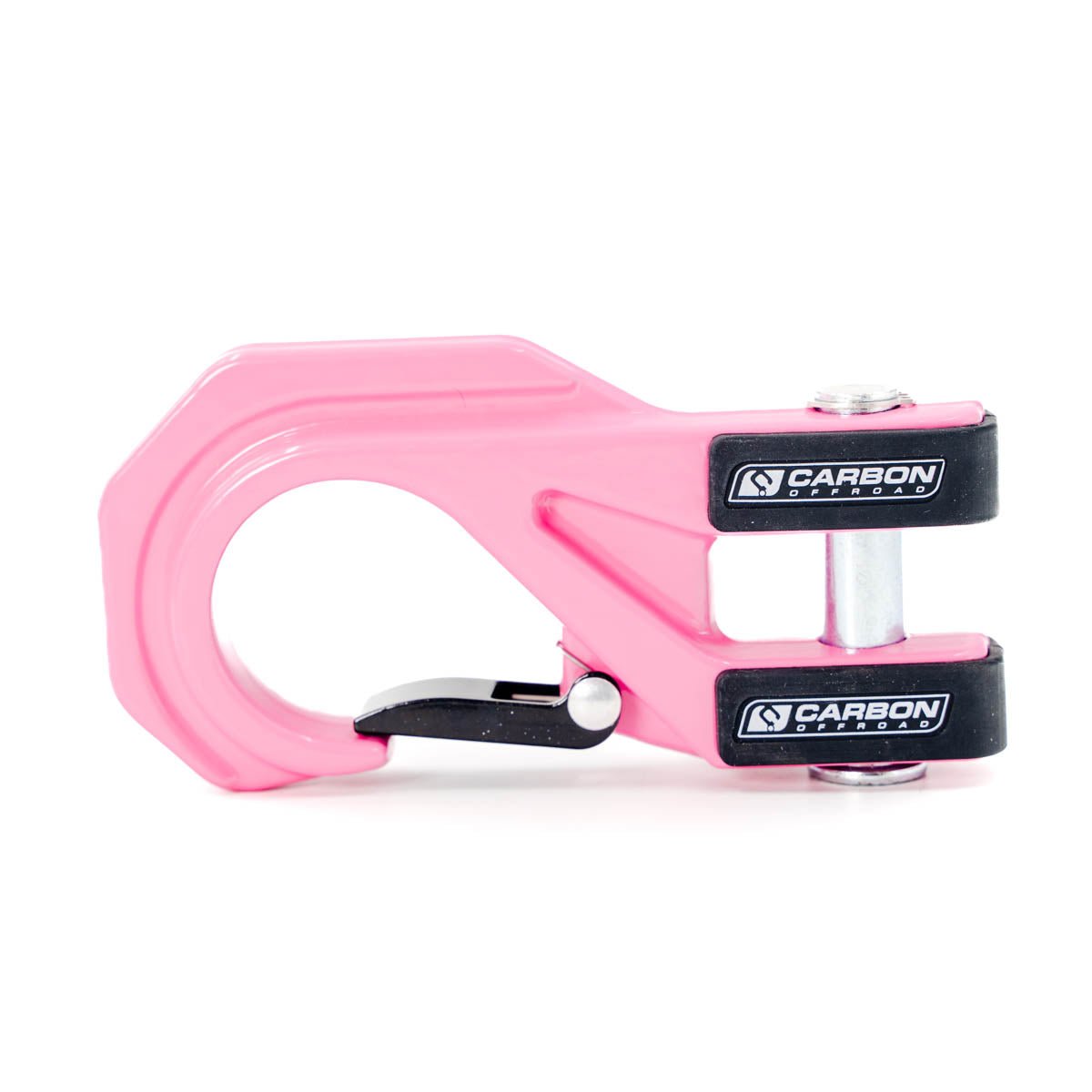

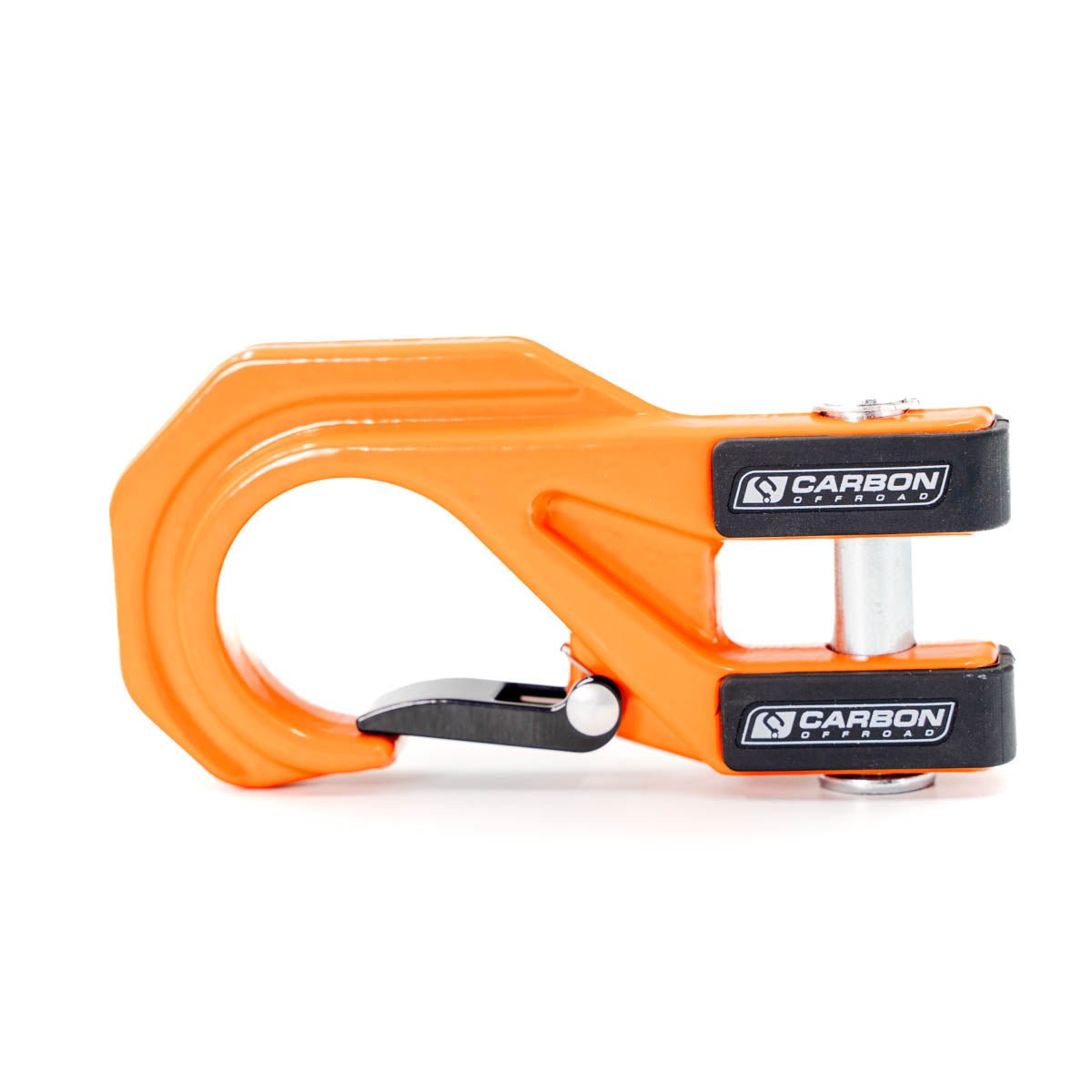

- MegaPro Hook included (choose your colour)
- IP68 sealing for dust‑tight protection and water submersion rating
- Wireless + wired remotes included
Technical specs
- Part number: CW-12KV3X
- Rated line pull: 12,000lb (5,450kg) single line
- Motor: 12V DC 6HP series‑wound (24V option available)
- Geartrain/ratio: 3‑stage planetary, 218:1
- Rope: 24m × 10mm synthetic
- Mounting bolt pattern: 254mm × 114.3mm
- Winch size: 538mm × 158mm × 187mm
- Weight (winch only): 19.7kg
- Weight (kit complete): 26.65kg

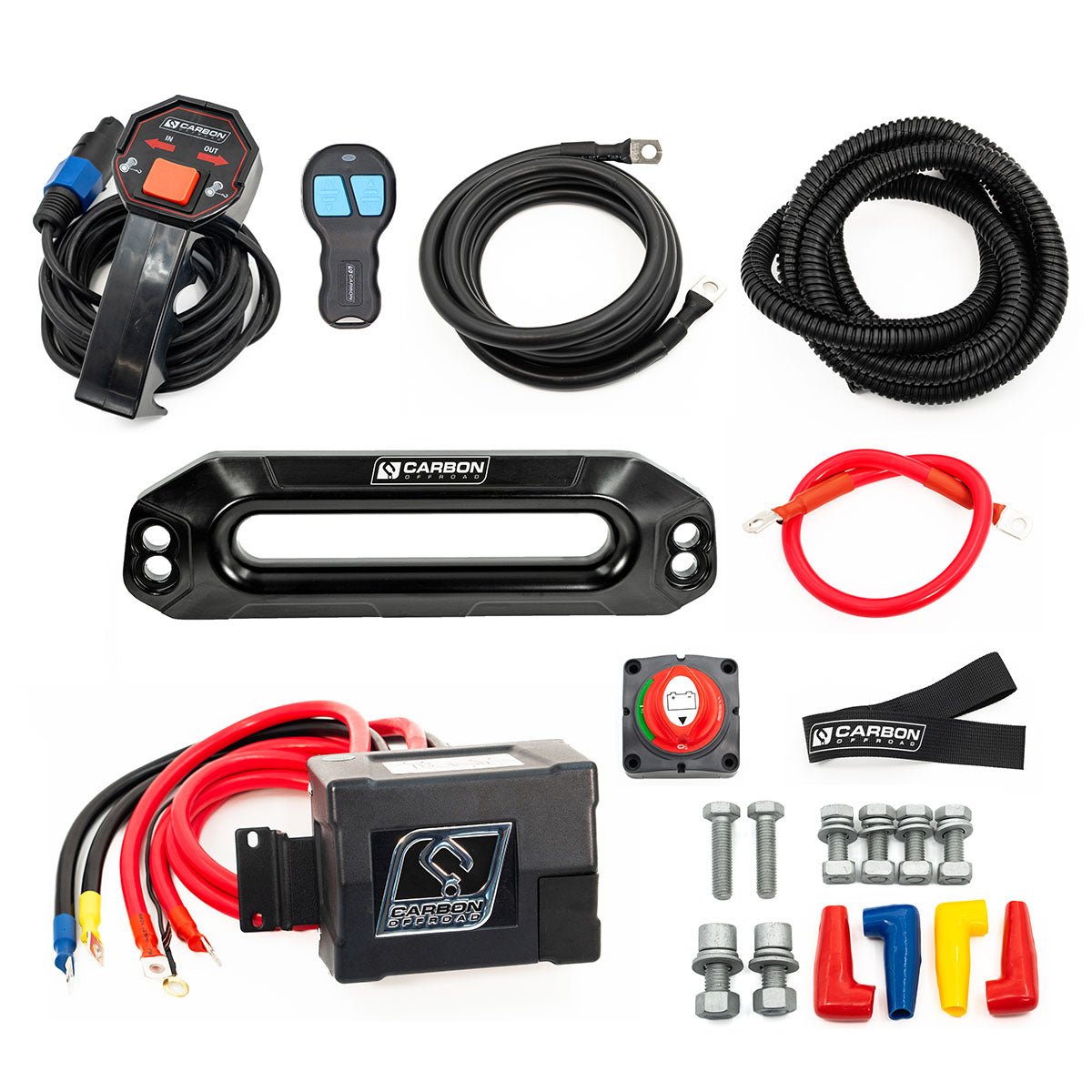

What's included
- Winch with synthetic rope fitted

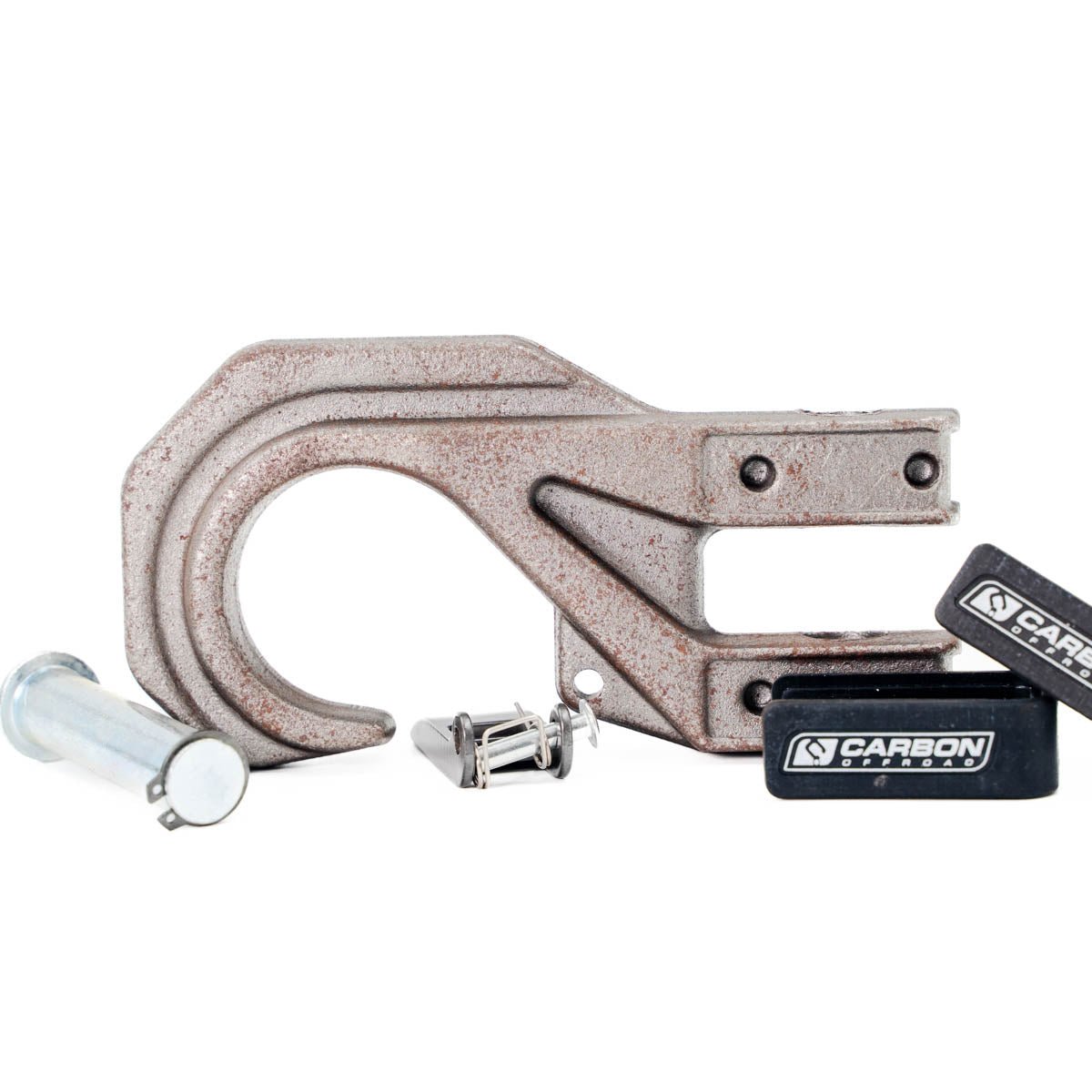

- MegaPro Hook (colour as selected)
- CNC billet alloy fairlead
- Isolator switch, control box, cables and mounting hardware
- Wired remote + wireless remote
