Carbon Offroad 3000lb ATV/Trailer Winch
Compact, lightweight and easy to mount, the Carbon Offroad 3,000lb ATV/Trailer winch is a tidy solution for small trailers, ATVs and light utility tasks.
With synthetic rope, wired + wireless control and a single‑stage planetary gearbox, it’s built to make loading and recovery jobs quicker and safer.
Key features
- Synthetic rope for reduced weight and safer handling
- Wired remote (3.7m lead) plus wireless remote included
- Single‑stage planetary geartrain for efficient pulling
Technical specs
- Rated line pull: 3,000lb (1,360kg) single line
- Motor: 12V DC 1.5HP permanent magnet
- Gear ratio: 153:1 (single‑stage planetary)
- Rope: 13m × 4.8mm synthetic
- Drum: 32mm × 73mm
- Fairlead: Roller fairlead
- Mounting bolt pattern: 76mm × 124mm
- Winch size: 310mm × 127mm × 127mm
- Shipping weight: 10kg

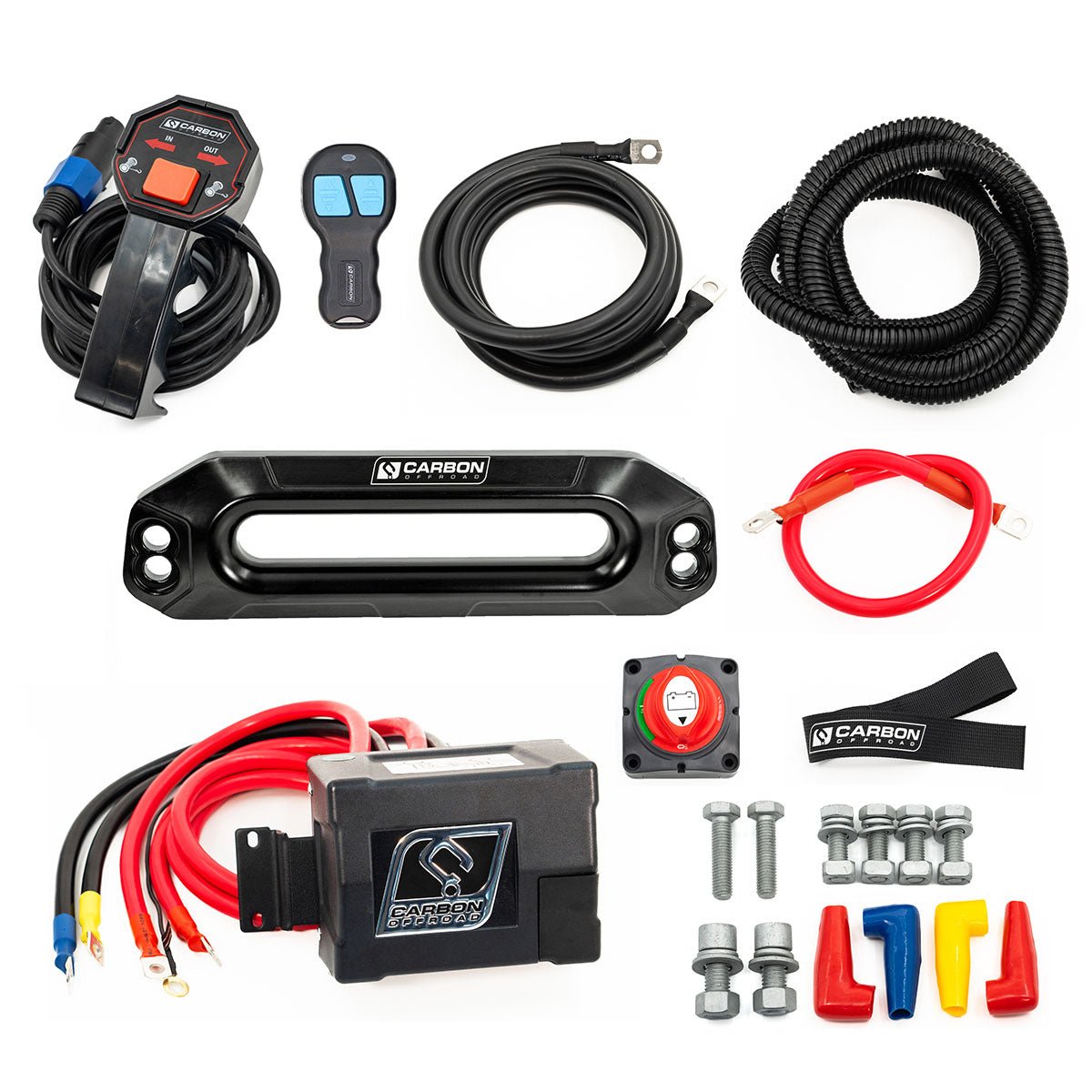

What's included
- Winch with synthetic rope fitted
- Wired remote + wireless remote
- Roller fairlead
- Mounting hardware
