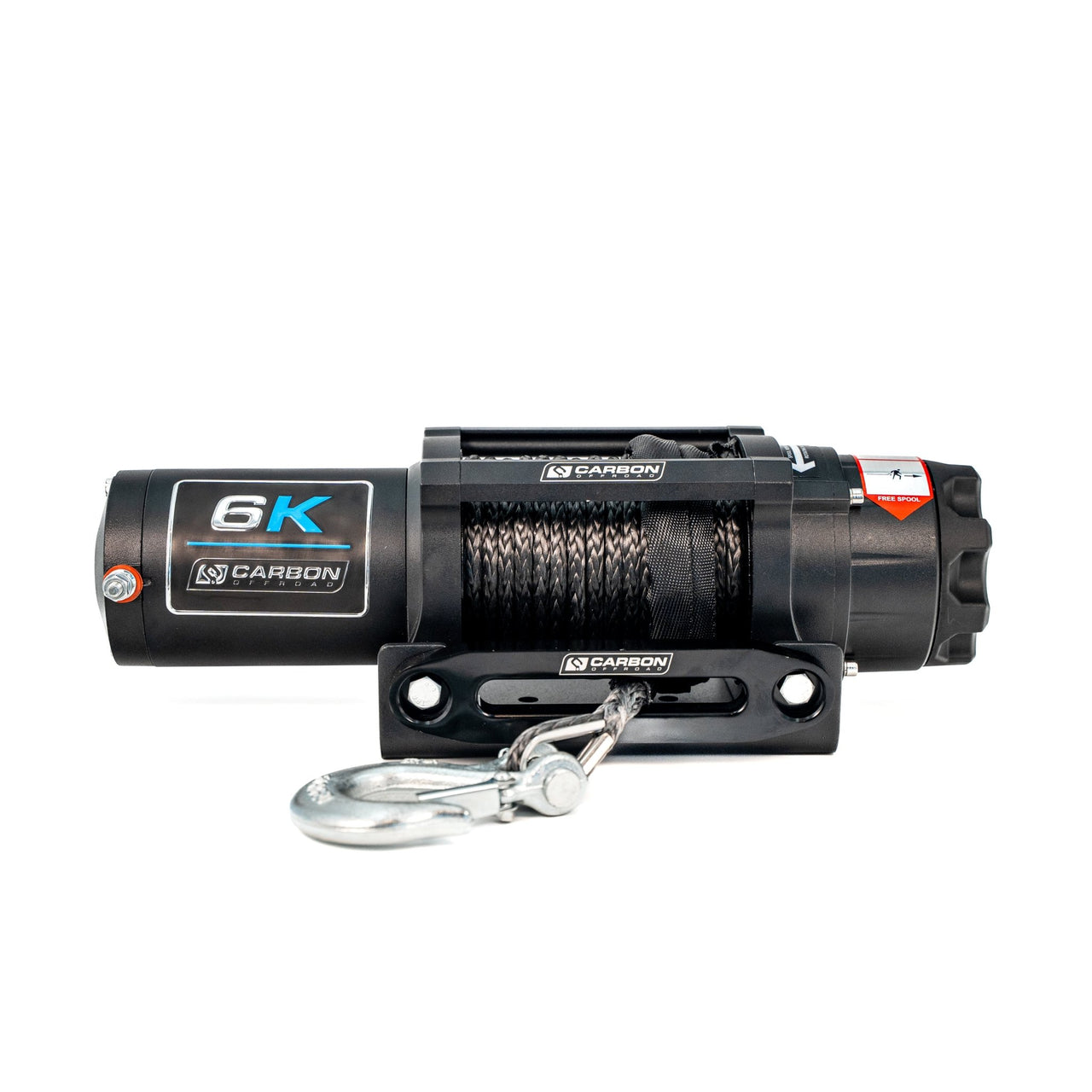

Carbon Offroad 6000lb ATV/Small 4X4 Winch - 24V
The 24V version of Carbon Offroad’s proven 6,000lb ATV/Small 4x4 winch—ideal for 24V vehicles, trailers and compact off‑road builds.
Expect the same compact packaging, sealed internals and dual‑remote convenience, tailored for 24V systems.
Key features
- 24V setup for commercial and 24V applications
- Wireless remote included for safer operation
- Sealed motor/geartrain with IP66 rating (winch/solenoid)
Technical specs
- Rated line pull: 6,000lb (2,725kg) single line
- Motor: 2.5HP permanent magnet (24V application)
- Geartrain/ratio: 3‑stage planetary, 147:1
- IP rating: IP66 (winch and solenoid; excludes remote/switch)
- Rope: 16m × 6.5mm synthetic
- Mounting bolt pattern: 167mm × 76mm
- Winch size: 385mm × 115mm × 119mm
- Weight (kit complete): 11.2kg

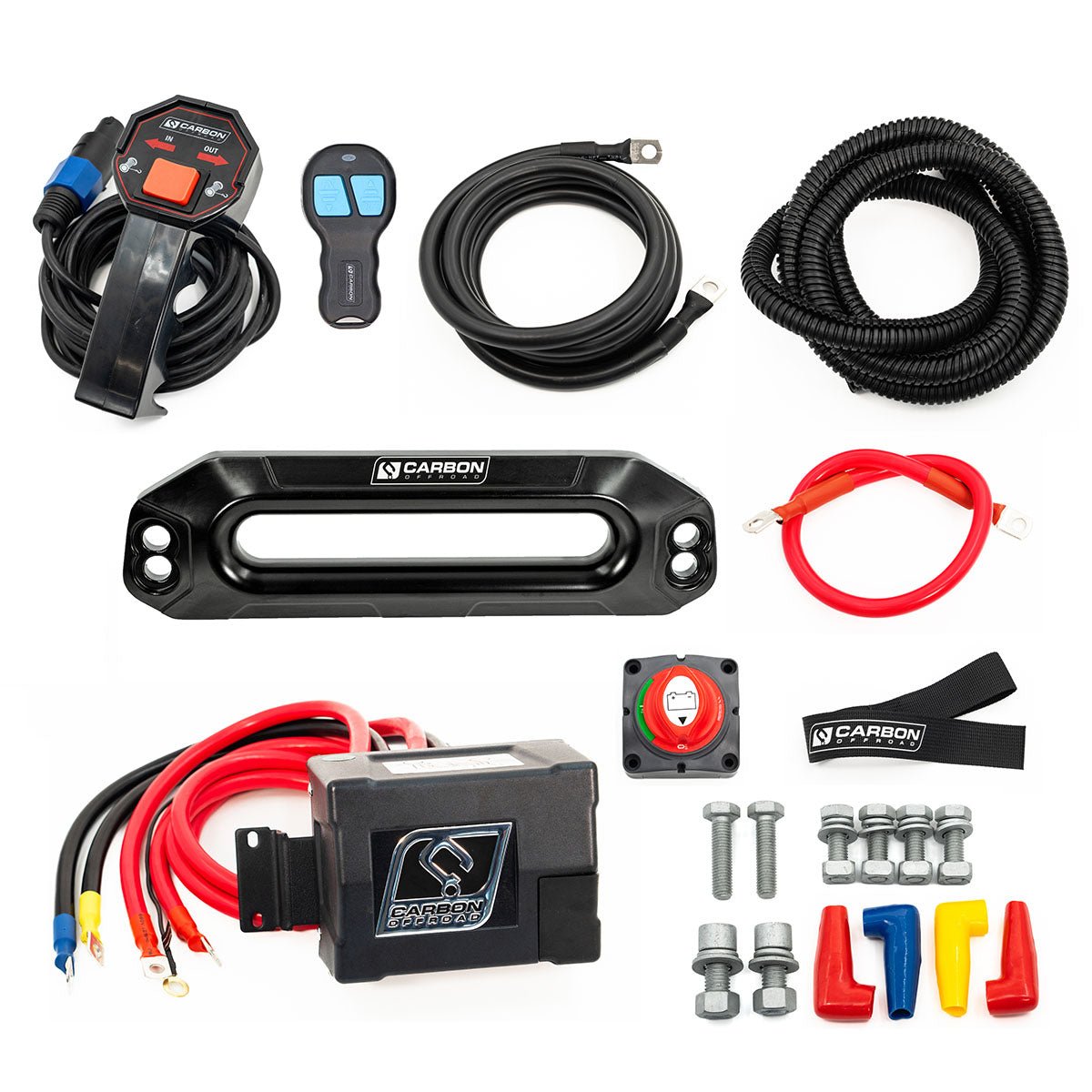

What's included
- Winch with synthetic rope fitted
- Wireless remote + handlebar mini‑rocker switch
- Aluminium hawse fairlead
- Control box, cables and mounting hardware
