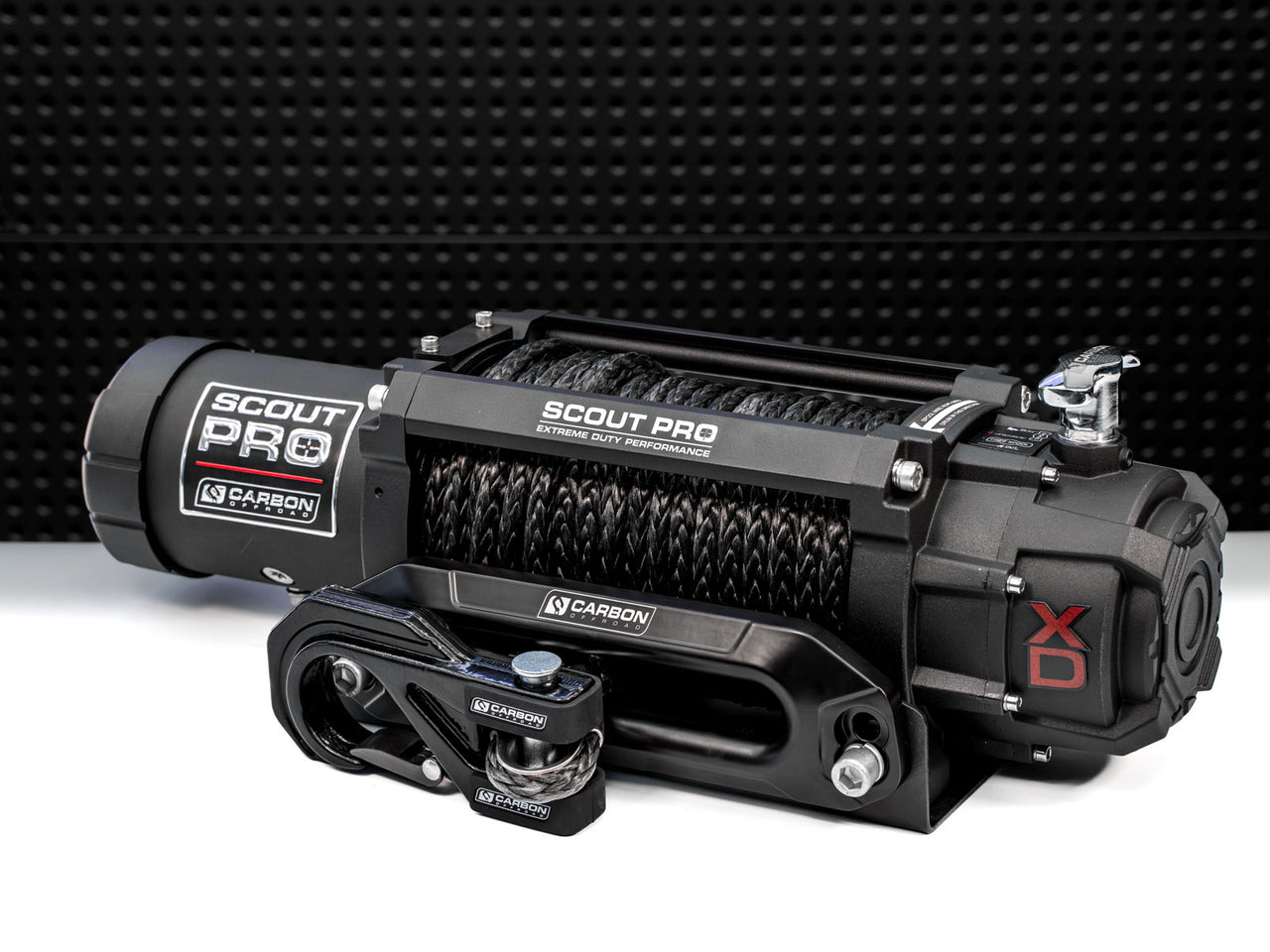

Carbon Offroad Scout Pro 9000lb Winch V3
Built for frequent, heavy‑duty recoveries, the Scout Pro 9K pairs a 7HP series‑wound motor with a fast 104:1 gearbox for strong, consistent pulling.
Supplied with wired + wireless control and premium MegaPro hardware, it’s ready for real off‑road use.
Key features
- Wired remote (3.6m lead) plus wireless remote included
- 3‑stage planetary gearbox with 104:1 ratio for strong line speed
- MegaPro CNC billet fairlead for smooth, controlled rope handling
Technical specs
- Part number: CW-XD9
- Rated line pull: 9,000lb (4,082kg) single line
- Motor: 12V DC 7HP series‑wound
- Geartrain/ratio: 3‑stage planetary, 104:1

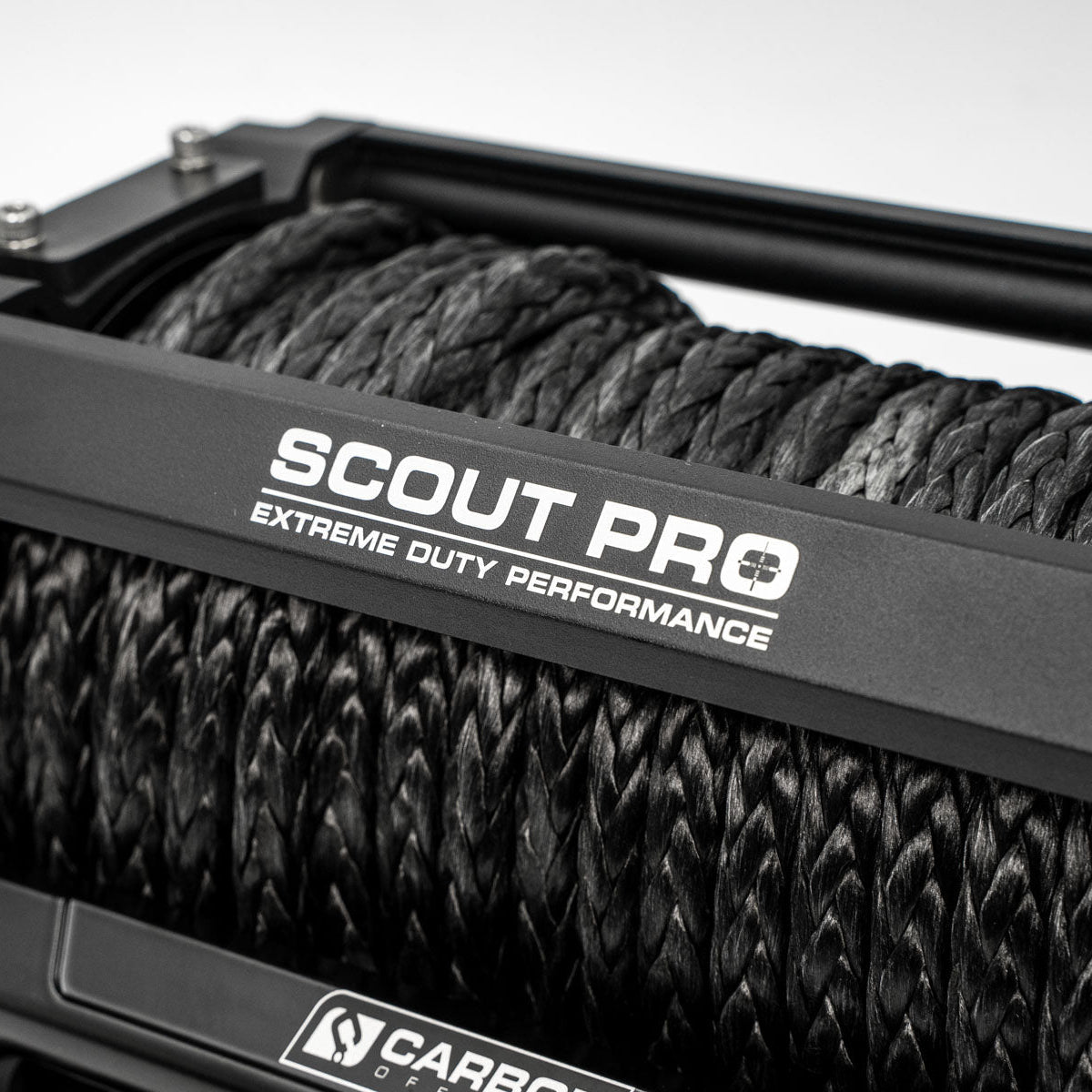

- Rope: 24m × 11mm synthetic
- Drum: 63.5mm × 224mm
- Mounting bolt pattern: 254mm × 114.3mm
- Winch size: 535mm × 158mm × 187mm
- Weight (kit complete): 26.7kg

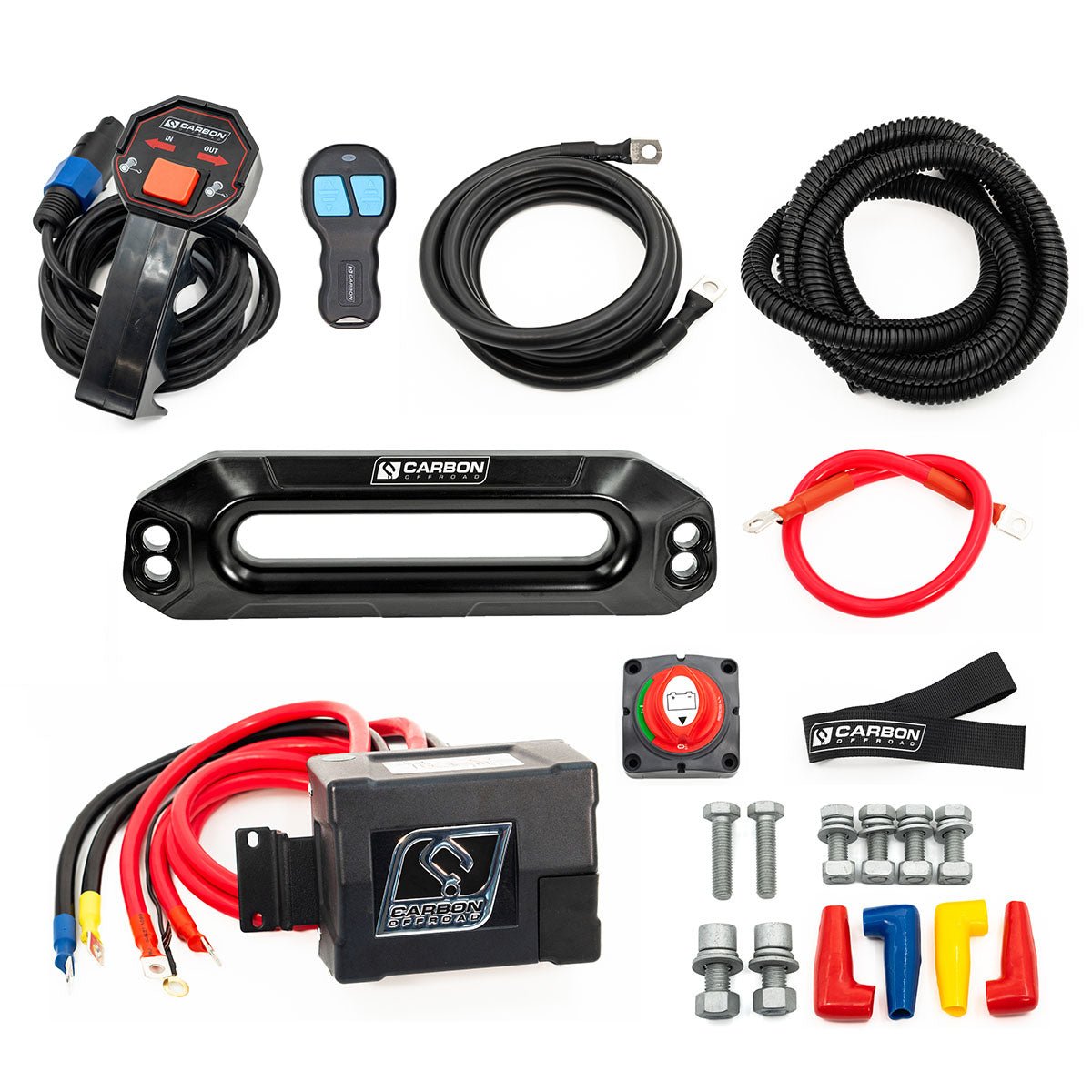

What's included
- Winch with synthetic rope fitted
- Wired remote + wireless remote
- MegaPro CNC billet fairlead
- Control box, cables and mounting hardware
