WCS Multileaf Spring for Hino FG1J Ranger 9 (All Years) (Steer)

Only 2 left
SKU: HIN 09
SKU: HIN 09
Regular price $738.00
Regular price -1% $743.00 Sale price $738.00

WCS Multileaf Spring for Hino FG1J Ranger 9 (All Years) (Steer)

Upgrade your front suspension with multileaf springs designed to handle extra weight, improve steering control, and keep your vehicle level and stable under pressure. Built from high-strength steel to support additional front-end weight from accessories or heavy loads.

Features:

  • Multiple leaves provide progressive load control and increased durability.
  • Maintains proper ride height to ensure safe handling and visibility.
  • Enhances steering stability and reduces nose dive during braking.
  • Designed to perform reliably in harsh road and job site conditions.
  • Helps reduce front-end sag, improving suspension geometry and component lifespan.
  • Compatible with a wide range of commercial vehicle makes and models.
  • Finished with corrosion-resistant coating for long-term protection.

Specifications:

  • Weight: 70 kg
  • Suspension Type: Steer
  • No. Leaves: PP+8+SP
  • Main Pack Mat.: 90X12-11
  • C/Bolt: 5141
  • Bush Front: 3074
  • Bush Rear: 3074

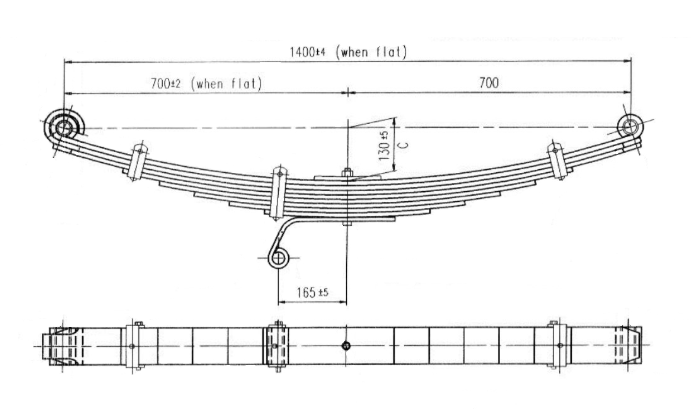

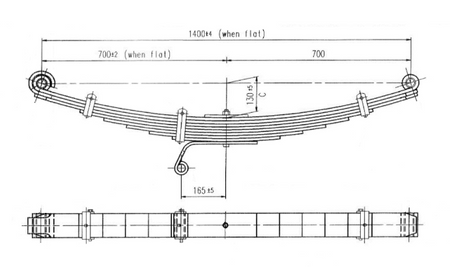

  • Leaf A Dimension: 700mm
  • Leaf B Dimension: 700mm
