WCS Multileaf Spring for Hino FE3H Raven/FF1J Ranger 8/GT173K/M & GT175K/M/GT3H Osprey (Steer)

Available to Order
SKU: HIN 23
SKU: HIN 23
Regular price $639.00
Regular price -1% $644.00 Sale price $639.00

WCS Multileaf Spring for Hino FE3H Raven/FF1J Ranger 8/GT173K/M & GT175K/M/GT3H Osprey (Steer)

Upgrade your front suspension with multileaf springs designed to handle extra weight, improve steering control, and keep your vehicle level and stable under pressure. Built from high-strength steel to support additional front-end weight from accessories or heavy loads.

Features:

  • Multiple leaves provide progressive load control and increased durability.
  • Maintains proper ride height to ensure safe handling and visibility.
  • Enhances steering stability and reduces nose dive during braking.
  • Designed to perform reliably in harsh road and job site conditions.
  • Helps reduce front-end sag, improving suspension geometry and component lifespan.
  • Compatible with a wide range of commercial vehicle makes and models.
  • Finished with corrosion-resistant coating for long-term protection.

Specifications:

  • Weight: 68 kg
  • Suspension Type: Steer
  • No. Leaves: 13
  • Main Pack Mat.: 80X11-10
  • C/Bolt: 5104
  • Bush Front: 3073
  • Bush Rear: 3073

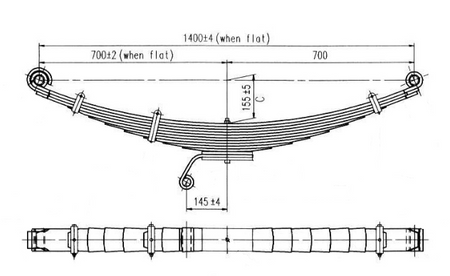

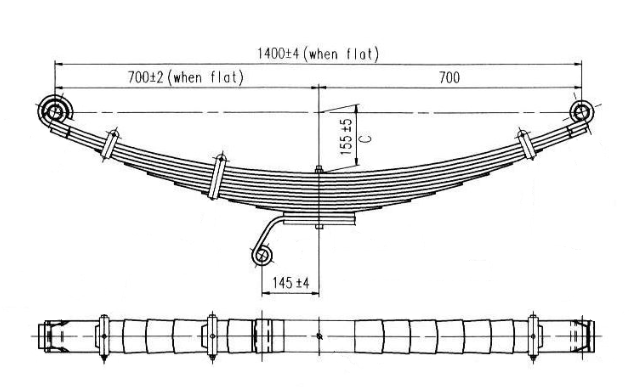

  • Leaf A Dimension: 700mm
  • Leaf B Dimension: 700mm
