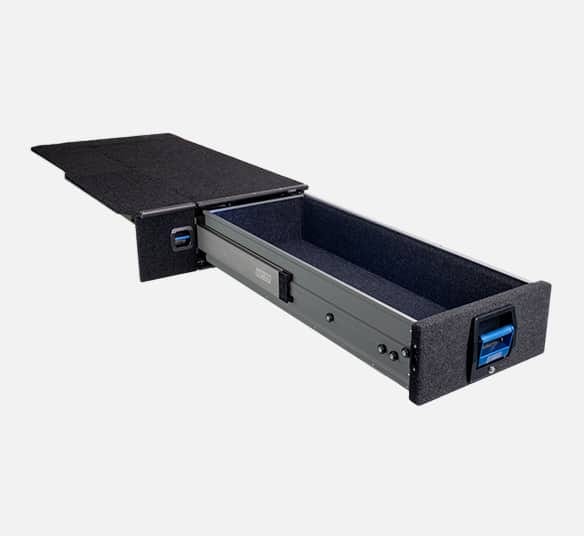

MSA 4x4 Left Storage Drawer System for Mitsubishi Triton MV (02/2024 on)

MSA 4X4’s Storage Drawer Systems are designed with a patented slide technology Now fitted with fully sealed, stainless steel bearings with Nylon rollers as standard. Offering a quieter, smoother operation under heavy loads and saving up to 3kg per Drawer Module. The entire drawer extends further from the frame, allowing 100% access to the drawers.

No more hard-to-reach items at the back! MSA 4X4’s Storage Drawer Systems are constructed from aluminium and have anodised aluminium components. Super-strong, lightweight and comes with stainless steel fasteners used throughout for a rust-free, corrosion resistance lifetime of use.

FEATURES:

• 100% Drawer extension for complete access
• Patented “Stay-Open Block”
• Rust resistant sealed bearings with Nylon rollers
• Internal LED Light Strip
• Safe and secure lock system
• Dust resistant seal
• Stainless steel fasteners
• Removable wing and face panels

INCLUDES:

• Left Drawer Module
• Left Fit Kit (includes floor extension)
• Left Wing Kit
• Single Width Trim


EXTERNAL DIMENSIONS +10mm for rear anchor bolts

• Overall drawer length = 1365mm (including handle lock)
• Overall drawer height = 275mm
• Overall single drawer width = 530mm (no wings)

INTERNAL DIMENSIONS

• Usable drawer height = 215mm (upto under side of the top deck)
• Drawer height = 211mm
• Internal drawer length = 1250mm
• Internal drawer width = 453mm

WEIGHT

• 56.2kg


Note: MSA 4X4 Storage Drawer Systems are designed to fit directly into the vehicle tub body. It is not designed to fit in conjunction with a tub liner. Tub liners MUST be removed before installation.
