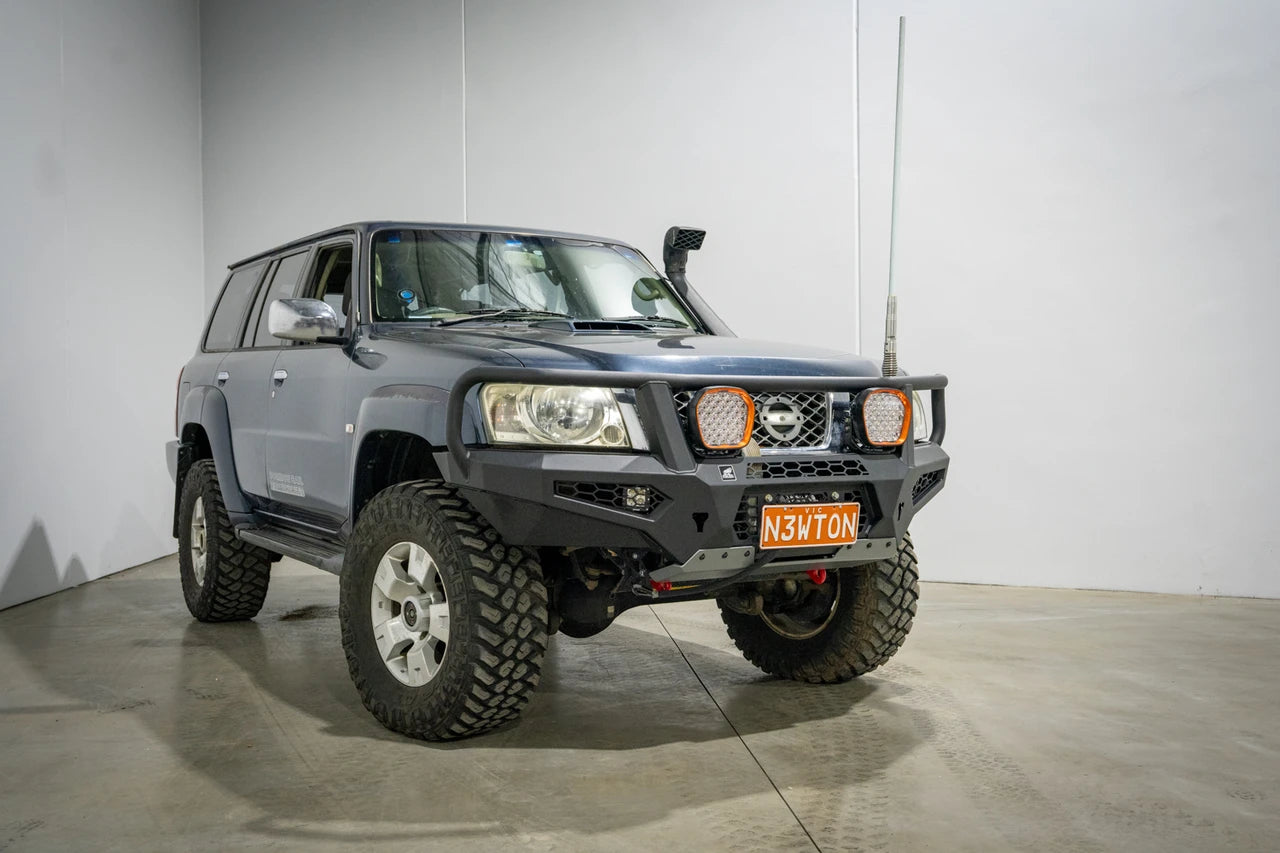

Offroad Animal Cougar Bullbar for Nissan Patrol GU Y61 S4 (2005-2016)
This kit does not contain additional parts.
Offroad Animal Bull Bar – GU Patrol Series 4 (Warn M8274-50 High Mount Compatible)
Specifically designed to suit the Warn High Mount winch M8274-50, this bar is built for serious off-roaders who want strength, function, and standout style.
The GU Patrol has earned its off-road reputation for a reason — tough and incredibly capable. Now it’s time to make it even better. Enhance those good looks and turn heads with this modern bull bar from Offroad Animal. Don’t settle for the same old vanilla bars everyone else runs. Stand out from the crowd with something that shows off your wild and fun side while delivering serious performance.
Vehicle Compatibility
Suits Series 4 GU Patrol (2005–2016).
Benefits
- Super aggressive styling that transforms the look of your Patrol.
- Lightweight design at only 54kg — helps keep your Patrol climbing strong.
- Improved airflow to help keep engine temperatures down.
- Easy fitment of both bar and winch.
- Winch can be fitted after the bar is installed.
- Designed specifically to suit Warn M8274-50 High Mount winch only.
Features
- ADR compliant.
- Airbag compatible.
- Bumper replacement design (no bumper cutting required, grille trimming required to suit high mount winch).
- Welded one-piece bar with welded wing supports for superior strength.
- Projects only 150–160mm from the front of the grille.
- Zinc plated then powder coated Matte Black.
- Full steel construction using 2mm (mesh panels), 3mm (pan and wings), and 5mm (mounts and winch cradle).
- Tow points rated to 4.5 tonne each.
- Integrated hi-lift jacking points.
- Antenna mounts included as standard (bolt to rear of uprights).
- Does not retain factory fog lights but supports 2 x cube lights per wing or up to an 8" LED light bar in each wing.
- Number plate flip included for winch setups.
- Can be colour coded to vehicle.
- 21mm laminated steel tow hooks included on mounts.
Lighting Compatibility
- Maximum 7" round driving lights.
- Compatible with Stedi 8.5" EVO driving lights.
Installation
- Install time: 2–3 hours
- Install difficulty: 4/10
What’s Included in the Box
- 1 x Front bar weldment
- 1 x LH chassis impact bracket
- 1 x RH chassis impact bracket
- 1 x Mesh fairlead mount
- 1 x Fog lamp bracket LH
- 1 x Centre bash plate
- 1 x Under wing panel LH
- 1 x Under wing panel RH
- 1 x Number plate flip
- A butt load of nuts and bolts to make it all sit nice and pretty
Direct Suspensions proudly supports the aftermarket accessory industry. As such, none of our products are made by, or sponsored products of Toyota, Isuzu, Ford or any other vehicle manufacturer.
