Boss Air Suspension PX07 12V COMPLETE 12 Volt Air Compressor

Description

12v Air Compressor 3/4 hp engine 100% duty cycle. Recommended working pressure 0-150psi maximum pressure 200psi – 31.5 amp maximum draw. Fan cooled engine and cylinder head, oil free design, 3/8npt ported head, rebuildable design, crank case fed – external washable air filter, cast aluminum legs, special piston valve design for maximum performance – MUST USE CHECK VALVE TO PREVENT BACK FLOW+ 40 AMP FUSE – NEVER OIL THIS COMPRESSOR

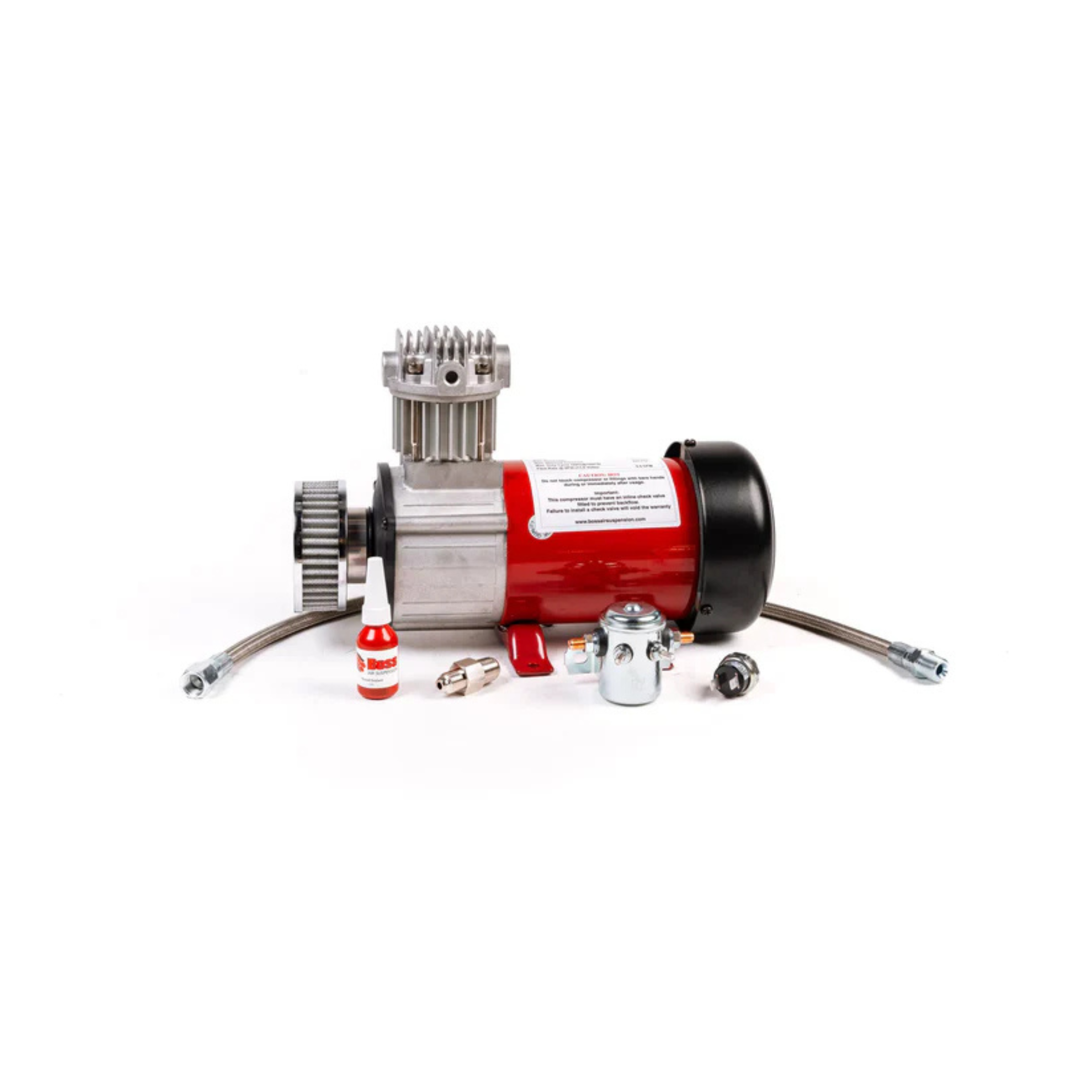

• PX-07 Compressor
• 110-135psi Pressure Switch
• 100% Duty Solenoid
• Check Valve
• 3/8″ Flare Fitting
• Teflon Coated Braided Hose
• Size – 335 long X 225 High X 145 Wide
• 7.2 Kg
• IP55 Rated
• 100 Litre Free Flow. (Approx. 3.5 CFM)

  Compressor size - 335mm long x 225mm High x 145mm Wide.

  31.5 Max amp Draw

  7.2 Kg
