Direct Suspensions proudly supports the aftermarket accessory industry. As such, none of our products are made by, or sponsored products of Toyota, Isuzu, Ford or any other vehicle manufacturer.

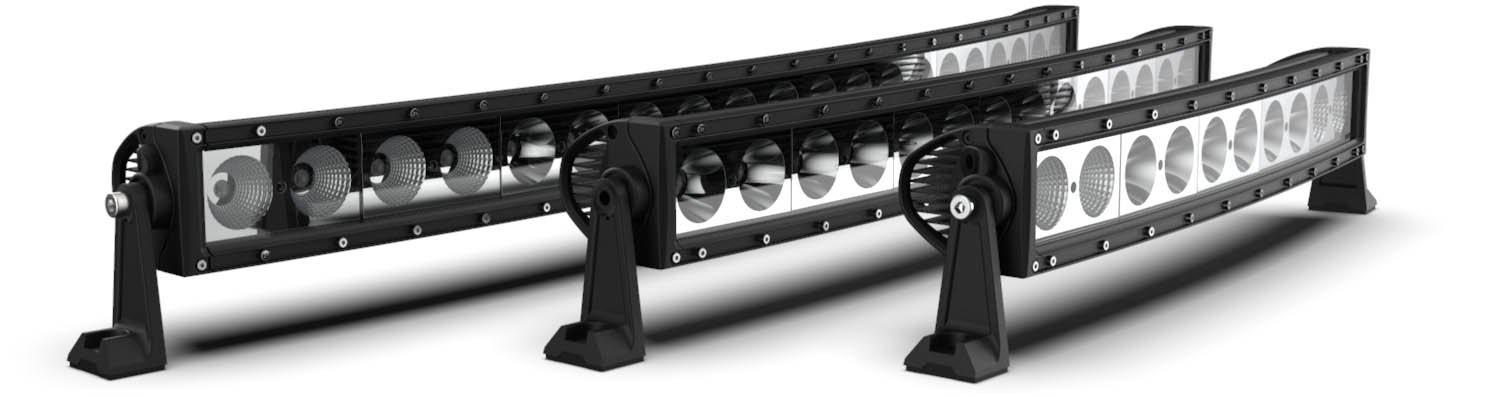

ROADVISIONs DCSX Series single row curved LED light bars, provide up to 18,000lm of instant light output from a curved housing designed to follow the contour of your vehicle.
The curved designed provides greater illuminating coverage, giving you a better field of view in any open road or off road situation. Roadvisions DCSX Series single row LED bar lights utilise a combination beam, giving you a superior balance of performance for light spread and distance, delivering extreme high intensity light over the first 300m where you need it most.
Features:
- Roadvisions most intense light bar over 300m
- DCSX Series single row curved LED bar lamps produce up to 18000lm of instant light output
- Available in 22, 30 & 40 models
- 10W Cree LEDs produce super white light close to daylight
- Multi-volt 10-30V DC input
- Super low current draw
- 50,000 hour LED lifespan with solid state technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP67 rated
- Simple 2 wire installation with Deutsch plug
- Supplied with slide & end mounts
- Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved
| Part Number | RBL422C | RBL430C | RBL440C |
|---|---|---|---|
| Description | DCSX Series 22" Curved Bar 10 LED | DCSX Series 30" Curved Bar 14 LED | DCSX Series 40" Curved Bar 20 LED |
| Beam Type | Combo Beam | Combo Beam | Combo Beam |
| Lumens Light Output (Effective) | 9000lm | 12600lm | 18000lm |
| Beam Distance | 462m | 511m | 593m |
| Total Watts | 100W | 140W | 200W |
| Light Source | 10x10 Watt Cree LEDs | 14x10 Watt Cree LEDs | 20x10 Watt Cree LEDs |
| Voltage Input | 10-30V DC | 10-30V DC | 10-30V DC |
| Current Draw Amps | 7.1A @ 13.8V | 10.0A @ 13.8V | 14.2A @ 13.8V |
| Dimensions AxBxC | 467x98x79mm | 770x107x79mm | 1069x131x79mm |
| Bar Length | 22" (467mm) | 30" (770mm) | 40" (1069mm) |
| Wiring | 2 Pin Deutsch Plug | 2 Pin Deutsch Plug | 2 Pin ATP Plug |
| Lux @ 10m | 533 Lux | 652 Lux | 878 Lux |
| Meters @ 1 Lux | 231m | 255m | 297m |
| Meters @ 0.5 Lux | 462m | 511m | 593m |
