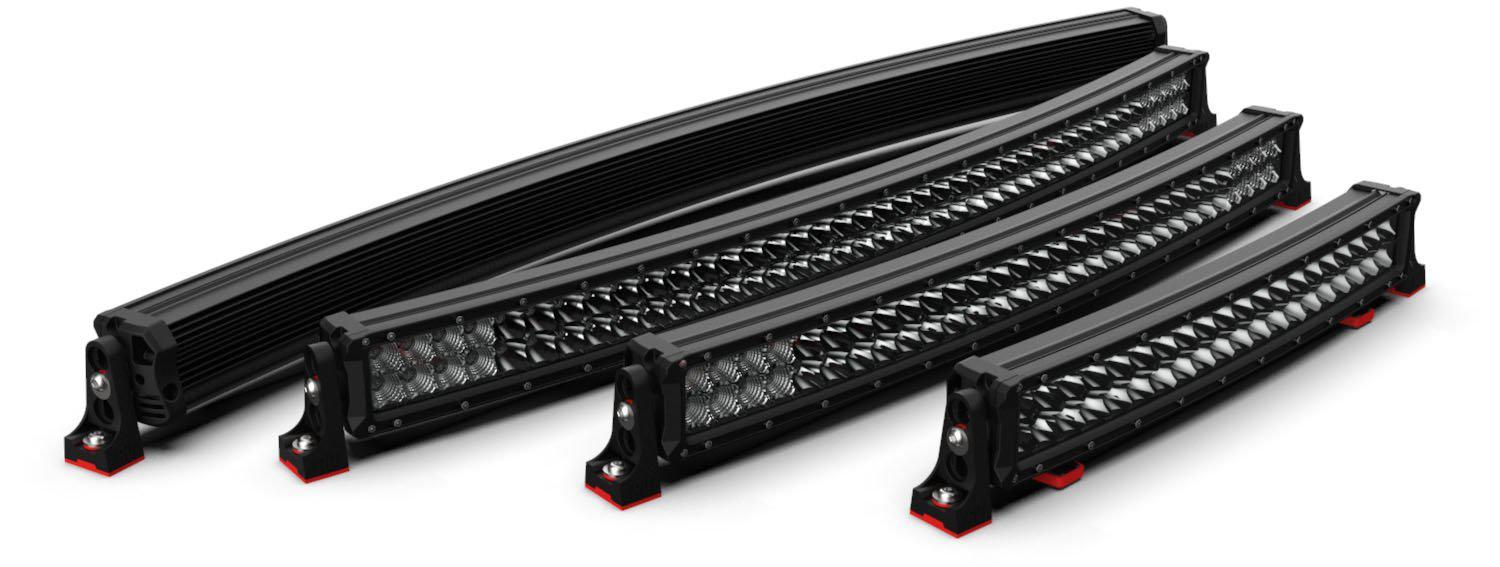

The Roadvision DCX2 Series are the next generation in dual row curved LED light bars. Producing up to a massive 25920lm of light output, the DCX2 Series deliver brute power and intense light output with a perfect match of advanced optical design and 3W Osram Hi-Lux LEDs.
Designed to follow the contour of your vehicle, the curved designed provides greater illuminating coverage, giving you a better field of view in any open road or off road situation. Featuring the latest soft start, PWM dimming and advanced thermal management technology from Roadvision, the DCX2 Series is available in combination beam patterns from 22 to 50 providing a perfect mix of forward penetration and additional roadside illumination from the curved radius housing.
Supplied with both low profile adjustable slide mounts and Roadvisions new 9 position adjustable anti-vibration mounting system, the DCX2 Series also features a new ultra slim 65mm deep housing providing greater mounting flexibility. The DCX2 Series by Roadvision, brute power from the biggest bars in our line-up.
Features:
- DCX2 Series dual row curved LED bar lamps produce up to 25920lm of light
- 3W Osram Hi-Lux LEDs produce super white light close to daylight
- Curved bar produces a wider beam angle for improved roadside illumination
- Multi-volt 10-30V DC input & super low current draw
- 50,000 hour LED lifespan with solid state technology
- Soft start, PWM dimmable & advanced thermal management technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP67 rated
- Simple 2 wire installation Deutsch/ATP plug & optional plug & play dimming controller
- 9 position adjustable anti-vibration end mount system & low profile slide mounts
- Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved
Part Number | RBL6220C | RBL6320C | RBL6420C | RBL6500C |
---|---|---|---|---|
Description | DCX2 Series 22" Curved Bar 40 LED | DCX2 Series 32" Curved Bar 60 LED | DCX2 Series 42" Curved Bar 80 LED | DCX2 Series 50" Curved Bar 120 LED |
Beam Type | Combo Beam | Combo Beam | Combo Beam | Combo Beam |
Lumens Light Output (Effective) | 10800lm | 16200lm | 21600lm | 25920lm |
Beam Distance | 708m | 818m | 932m | 997m |
Total Watts | 120W | 180W | 240W | 288W |
Light Source | 40x3 Watt Osram LED's | 60x3 Watt Osram LED's | 80x3 Watt Osram LED's | 120x3 Watt Osram LED's |
Input Voltage | 10-30V DC | 10-30V DC | 10-30V DC | 10-30V DC |
Current Draw Amps | 6.7A @ 13.8V | 10.0A @ 13.8V | 13.3A @ 13.8V | 14.1A @ 13.8V |
Dimensions AxBxC | 563x75x78.5mm | 818x87x78.5mm | 1073x108x78.5mm | 1273x128x78.5mm |
Bar Length | 22" (563mm) | 32" (818mm) | 42" (1073mm) | 50" (1273mm) |
Wiring | 2 Pin Deutsch Plug | 2 Pin ATP Plug | 2 Pin ATP Plug | 2 Pin ATP Plug |
Lux @ 10m | 1316 Lux | 1674 Lux | 2171 Lux | 2484 Lux |
Meters @ 1 Lux | 354m | 409m | 466m | 498m |
Meters @ 0.5 Lux | 708m | 818m | 932m | 997m |
