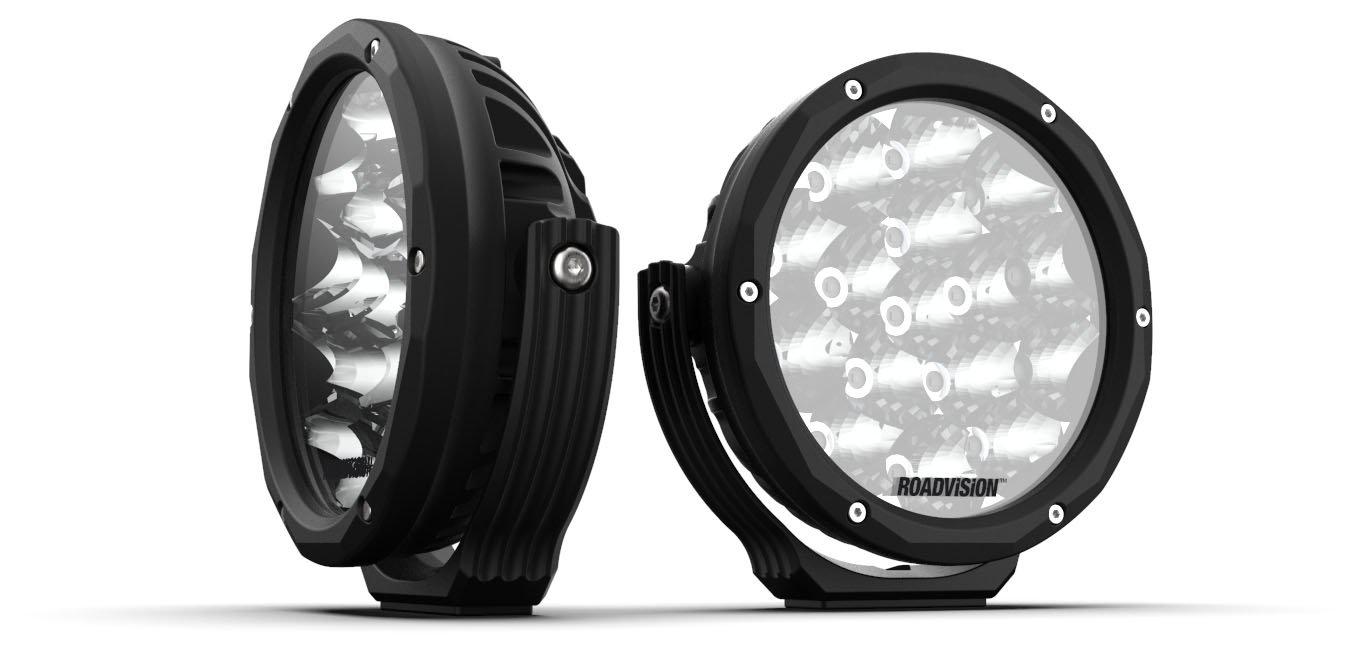

The Dominator Slim Line Series by Roadvision lives up to its name, with exceptional lighting performance, in a compact yet rugged package.
Producing 4320lm of instant light output from 16 premium 3W Osram LEDs, packaged in a tough yet light weight die-cast aluminium housing & polycarbonate lens, the Dominator Series provide superior performance and durability.
Perfect for smaller SUVs and passenger vehicles, the 7 slim line design allows installation into even the tightest applications without compromising on lighting performance.
Features:
- Dominator Slim Line Series driving lamps produce 4320lm of instant light output
- Super slim line housing 70mm deep
- Advanced optics produces 1045m driving beam
- 16 x 3W Osram LEDs produce super white light close to daylight
- Multi-volt 9-32V DC input
- Super low current draw of 3.9A
- 50,000 hour LED lifespan with solid state technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP67 rated
- Simple 2 wire installation with Deutsch plug
- Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved
| Part Number | RDL27D |
|---|---|
| Description | SL Series 7 Round 16 LED |
| Beam Type | Spot Beam |
| Lumens Light Output (Effective) | 4320lm |
| Beam Distance | 1045m |
| Total Watts | 48W |
| Light Source | 16x3W Osram Hi-Lux LEDs |
| Voltage Input | 9-32V DC |
| Current Draw Amps | 3.90 Amps |
| Dimensions | 178x193x78mm |
| Lamp Diameter | 7 (178mm) |
| Wiring | 2 Pin Deutsch Plug |
| Beam Pattern Type | Spot |
| Lux @ 10m | 2730 Lux |
| Meters @ 1 Lux | 522m |
| Meters @ 0.5 Lux | 1045m |
