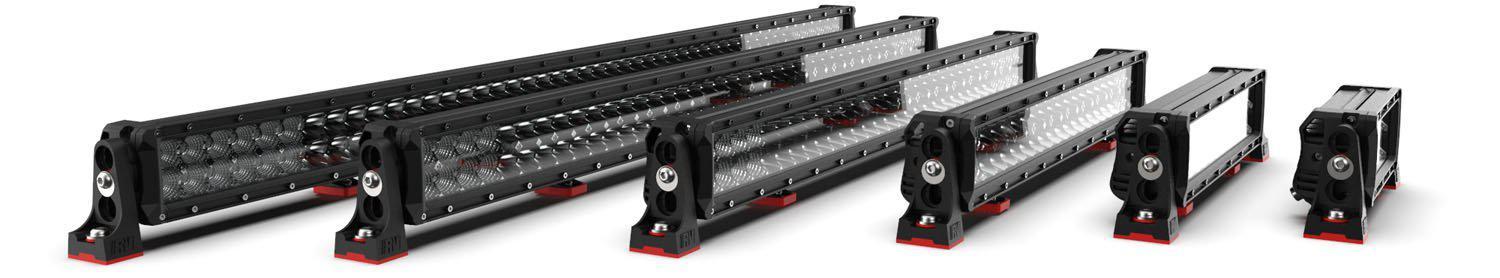

The Roadvision DC2 Series are the next generation in dual row LED light bars.
Producing up to a massive 25920lm of light output, the DC2 Series deliver brute power and intense light output with a perfect match of advanced optical design and 3W Osram Hi-Lux LEDs.
Featuring the latest soft start, PWM dimming and advanced thermal management technology from Roadvision, the DC2 Series is available in combination beam patterns from 8 to 50 providing a perfect mix of forward penetration and roadside illumination.
Supplied with both low profile adjustable slide mounts and Roadvisions new 9 position adjustable anti-vibration mounting system, the DC2 Series also features a new ultra slim 65mm deep housing providing greater mounting flexibility.
The DC2 Series by Roadvision, brute power from the biggest bars in our line-up.
Features:
- DC2 Series dual row LED bar lamps produce up to 25920lm of instant light output
- Available in 8 to 50 models
- 3W Osram Hi-Lux LEDs produce super white light close to daylight
- Multi-volt 10-30V DC input & super low current draw
- 50,000 hour LED lifespan with solid state technology
- Soft start, PWM dimmable & advanced thermal management technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP67 rated
- Simple 2 wire installation with Deutsch/ATP plug & optional plug & play dimming controller
- 9 position adjustable anti-vibration end mount system & low profile slide mounts
- Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved
Part Number | RBL5080C | RBL5140C | RBL5220C | RBL5320C | RBL5420C | RBL5500C |
---|---|---|---|---|---|---|
Description | DC2 Series 8" Bar 12 LED | DC2 Series 14" Bar 24 LED | DC2 Series 22" Bar 40 LED | DC2 Series 32" Bar 60 LED | DC2 Series 42" Bar 80 LED | DC2 Series 50" Bar 120 LED |
Beam Type | Combo Beam | Combo Beam | Combo Beam | Combo Beam | Combo Beam | Combo Beam |
Lumens Light Output (Effective) | 3240lm | 6480lm | 10800lm | 16200lm | 21600lm | 25920lm |
Beam Distance | 382m | 624m | 787m | 891m | 1031m | 1089m |
Total Watts | 36W | 72W | 120W | 180W | 240W | 288W |
Light Source | 12x3 Watt Osram LED's | 24x3 Watt Osram LED's | 40x3 Watt Osram LED's | 60x3 Watt Osram LED's | 80x3 Watt Osram LED's | 120x3 Watt Osram LED's |
Voltage Input | 10-30V DC | 10-30V DC | 10-30V DC | 10-30V DC | 10-30V DC | 10-30V DC |
Current Draw Amps | 1.8A @ 13.8V | 3.5A @ 13.8V | 6.7A @ 13.8V | 10.0A @ 13.8V | 13.3A @ 13.8V | 14.1A @ 13.8V |
Dimensions AxBxC | 206x65x78.5mm | 358x65x78.5mm | 563x65x78.5mm | 818x65x78.5mm | 1073x65x78.5mm | 1273x65x78.5mm |
Bar Length | 8" (206mm) | 14" (358mm) | 22" (563mm) | 32" (818mm) | 42" (1073mm) | 50" (1273mm) |
Wiring | 2 Pin Deutsch Plug | 2 Pin Deutsch Plug | 2 Pin Deutsch Plug | 2 Pin ATP Plug | 2 Pin ATP Plug | 2 Pin ATP Plug |
Lux @ 10m | 365 Lux | 974 Lux | 1549 Lux | 1986 Lux | 2656 Lux | 2966 Lux |
Meters @ 1 Lux | 191m | 312m | 394m | 446m | 515m | 545m |
Meters @ 0.5 Lux | 382m | 624m | 787m | 891m | 1031m | 1089m |
