Roadvision Rollar Series LED Light Bar
Regular price
$340.00
Available to Order
⏰ Sale ends in {timer}.
Roadvision’s Rollar Series LED Light bars are one of the highest performance LED light bars available, producing up to 21600lm of instant light output.
Designed with the latest optical technology and high performance 10W Cree LED’s, the Rollar Series are one of the furthest projecting light bars available, penetrating almost 1200m. Featuring a sleek black alloy housing, with dual brackets providing an infinite number of mounting options.
With unbreakable polycarbonate lenses and an extremely tough die cast aluminium housing, these lamps can handle anything that you and the environment throw at them.
Features:
- Roadvision’s furthest projecting light bar range
- Rollar Series single row LED bar lamps produce up to 21600lm of instant light output

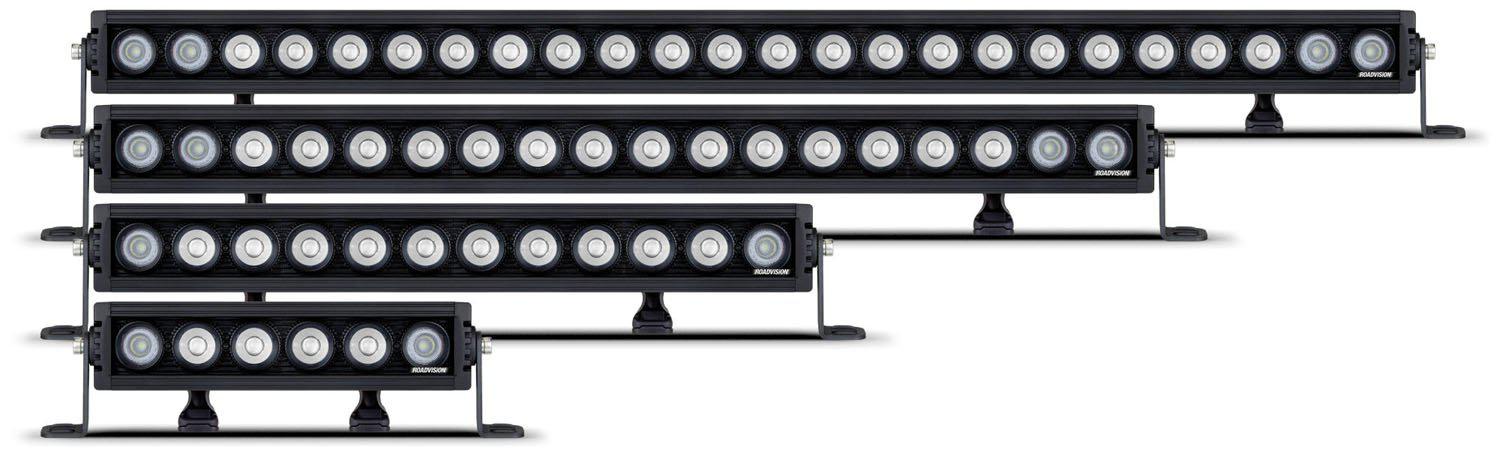

- Available in 10”, 20”, 30” & 40” models
- 10W Cree LED’s produce super white light close to daylight
- Multi-volt 10-30V DC input
- Super low current draw
- 50,000 hour LED lifespan with solid state technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP67 rated
- Simple 2 wire installation with Deutsch plug
- Supplied with slide & end mounts
- Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved
Part Number | RBL210C | RBL220C | RBL230C | RBL240C |
---|---|---|---|---|
Description | ROLLAR Series 10" Bar 6 LED | ROLLAR Series 20" Bar 12 LED | ROLLAR Series 30" Bar 18 LED | ROLLAR Series 40" Bar 24 LED |
Beam Type | Combo Beam | Combo Beam | Combo Beam | Combo Beam |
Lumens Light Output (Effective) | 5400lm | 10800lm | 16200lm | 21600lm |
Beam Distance | 410m | 815m | 1030m | 1178m |
Total Watts | 60W | 120W | 180W | 240W |
Light Source | 6x10 Watt Cree LED’s | 12x10 Watt Cree LED’s | 18x10 Watt Cree LED’s | 24x10 Watt Cree LED’s |
Voltage Input | 10-30V DC | 10-30V DC | 10-30V DC | 10-30V DC |
Current Draw Amps | 4.3A @ 13.8V | 7.1A @ 13.8V | 10.0A @ 13.8V | 14.2A @ 13.8V |
Dimensions AxBxC | 289x90x65mm | 543x90x65mm | 797x90x65mm | 1051x90x65mm |
Bar Length | 10" (289mm) | 20" (543mm) | 30" (797mm) | 40" (1051mm) |
Wiring | 2 Pin Deutsch Plug | 2 Pin Deutsch Plug | 2 Pin ATP Plug | 2 Pin ATP Plug |
Lux @ 10m | 420lx | 1660lx | 2650lx | 3470lx |
Meters @ 1 Lux | 205m | 407m | 515m | 589m |
Meters @ 0.5 Lux | 410m | 815m | 1030m | 1178m |
