WCS Multileaf Spring for Western Star 4900/5900 Constellation (2000 on) with Screw Pins (Front)

← Front →
108kg
Available to Order
(0)
SKU: WES 03
(0)
SKU: WES 03
$1,332.00
-1% $1,339.00 $1,332.00

WCS Multileaf Spring for Western Star 4900/5900 Constellation (2000 on) With Screw Pins (Front)

Don’t settle for sagging performance—upgrade to multileaf systems built to withstand the toughest conditions and keep your cargo secure.

Features:

  • The multileaf construction supports heavy loads effectively, giving drivers more confidence when hauling.
  • Built to handle demanding conditions over time, reducing downtime from suspension wear.
  • Spread the weight evenly across the axle to improve balance and stability during cornering or braking.
  • Designed specifically for Western Star 4900 and 5900 Constellation models post-2000 with screw pins, ensuring proper fitment and optimized performance.

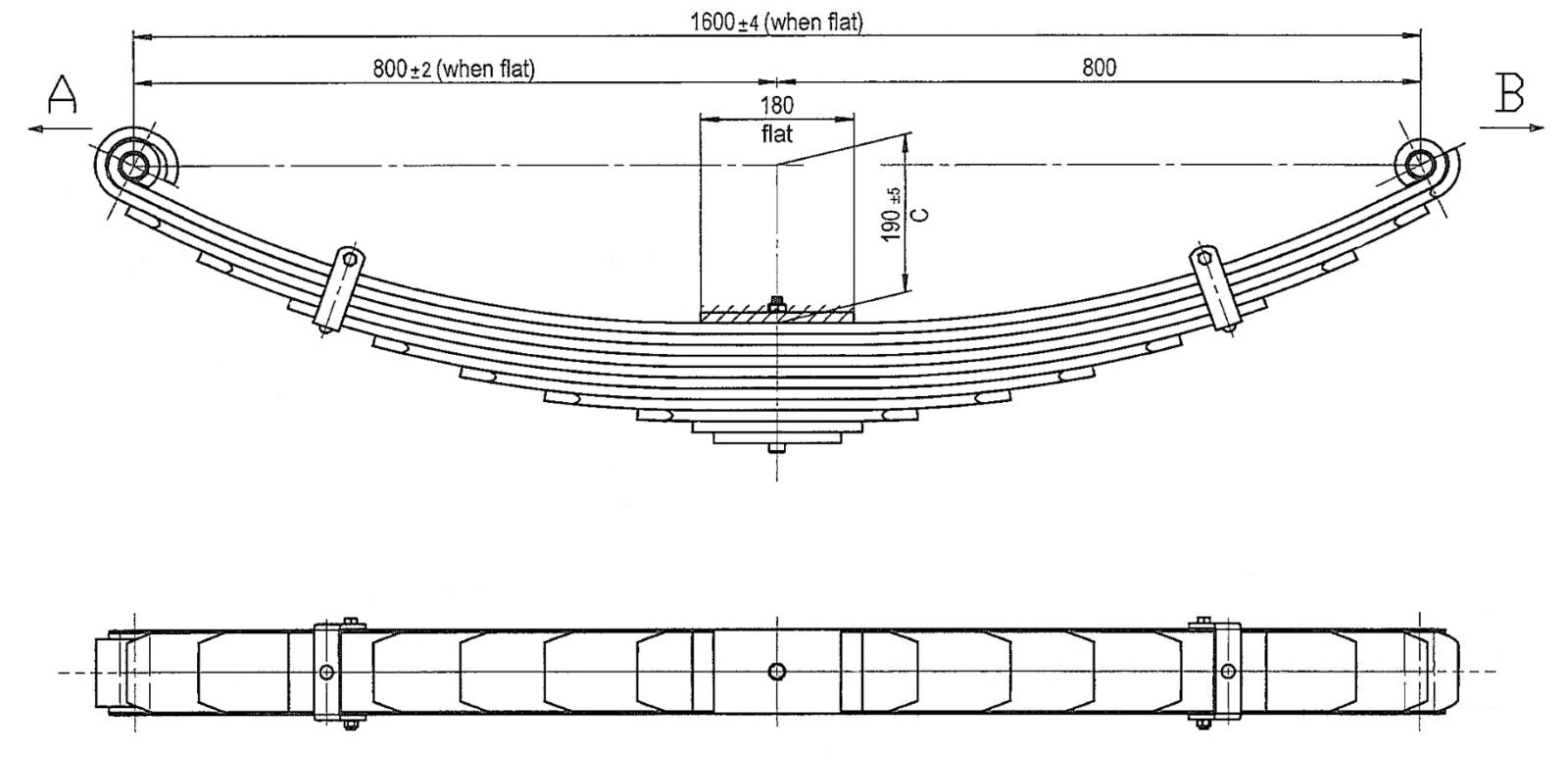

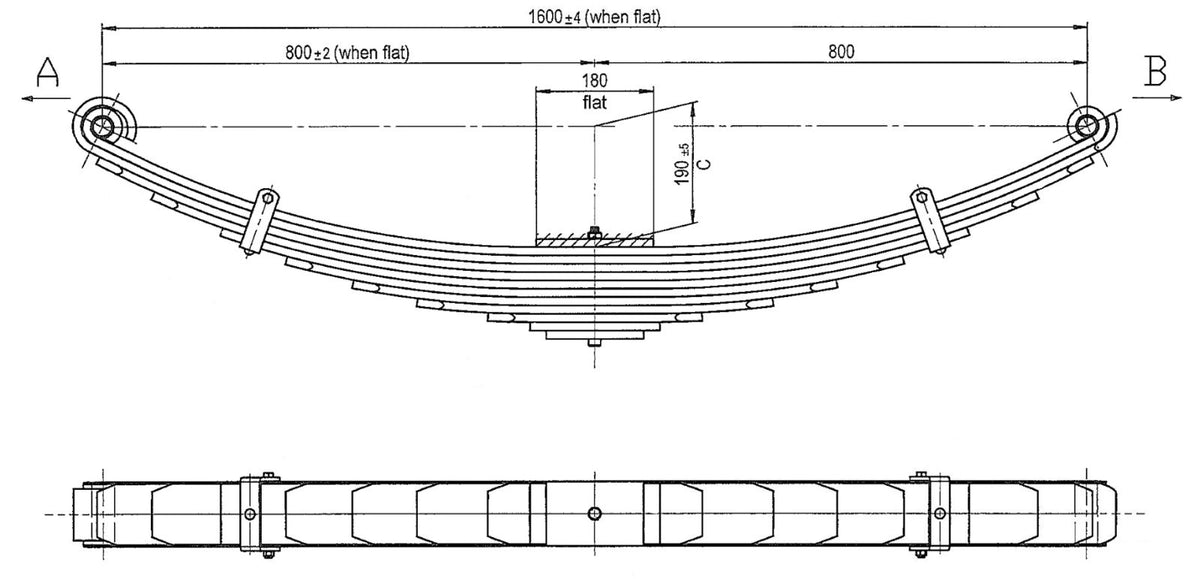

Specifications:

  • Suspension Type: Front
  • No. Leaves: PP+10+PP
  • Main Pack Mat: 1000X13
  • C/Bolt: 5033
  • Bush Front: 3165
  • Bush Rear: 3165
  • Leaf A Dimension: 800mm
  • Leaf B Dimension: 800mm
